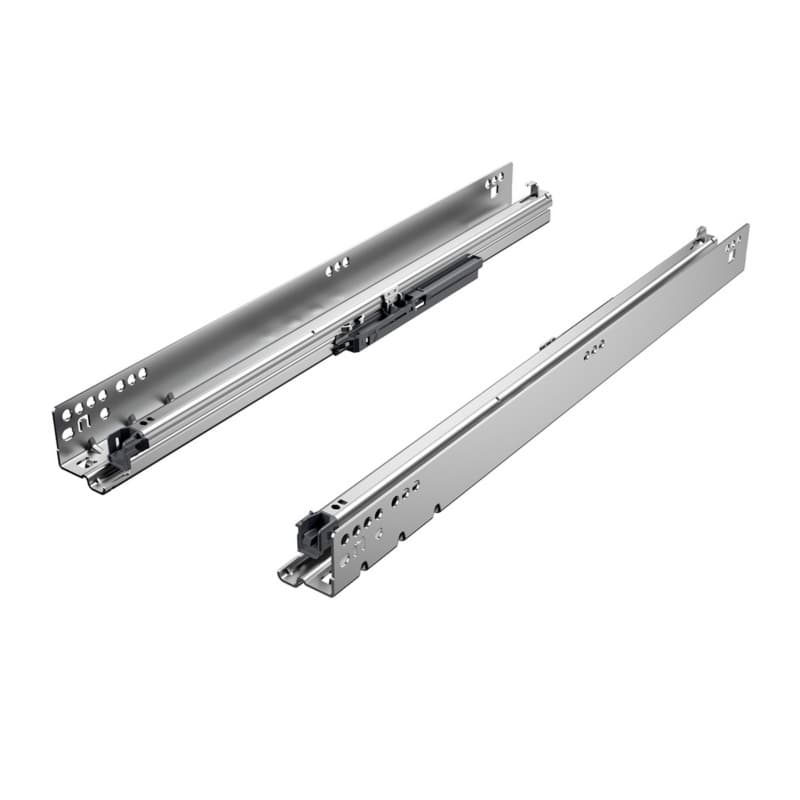

Hettich Quadro V6 18" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9304272

Hettich Quadro V6 Undermount Slide For Smooth Drawers

Hettich Quadro V6 undermount drawer slide is an 18 inch soft-close full extension right hand slide that supports drawers on a concealed track, which keeps the hardware out of sight while allowing the drawer to travel its full length. The slide uses a ball bearing design, which creates a controlled, consistent movement that helps drawers feel solid under load. An integrated damping system Silent System slows the drawer in the closing stroke, which reduces slamming and helps protect drawer fronts and cabinet faces in everyday use. This slide belongs to the undermount drawer slides product class, so it supports the drawer from below, which can help with stable alignment on both face frame and frameless cabinet applications. The slide is made by Hettich America Corporation, giving a clear match to specifications when matching part numbers across jobs.

Key Drawer Slide Details That Support Your Work

• The 18 inch full extension design lets the drawer open to its rated travel, which helps installers and users access the full drawer box depth in base cabinets or furniture applications.
• The integrated soft-close damping system Silent System slows the final closing movement, which protects contents and helps reduce impact wear on fronts, joints, and cabinet structures over repeated use.
• The slide supports a dynamic load capacity up to 90 lbs and a static capacity of 100 lbs on a 21 inch length slide, which provides a performance reference when selecting slides for drawers that will carry moderate to heavier stored items.
• The slide on installation with front fixing clips allows a mounting approach designed around clips and engagement instead of loose alignment, which can streamline fitting the drawer to the runners on site.
• The slide is made from galvanized steel and is suitable for rooms exposed to moisture, which gives this component a finish designed for environments such as kitchens, baths, and similar interiors where humidity may be present.

Installation Adjustment For Accurate Drawer Fitting

The Quadro V6 undermount slide uses slide on installation with front fixing clips, which lets the drawer box engage the runners by sliding into place and locking at the front, supporting repeatable mounting in cabinet runs. Tool-less height adjustment is built into the system, so vertical positioning of the drawer front can be changed without separate tools, which helps fine-tune reveals after the cabinet is already set. Side adjustment up to plus or minus 2 mm is available through the 2D front fixing clips, which lets installers shift the drawer front laterally within this range to align gaps with adjacent fronts. The slide is designed for face frame or frameless applications, which allows the same model to be used across different cabinet construction methods in a project.

Using This Quadro V6 Slide In Real Projects

Where This Undermount Slide Is Typically Applied

This 18 inch right hand Quadro V6 undermount drawer slide is specified for face frame or frameless applications, so it fits into standard cabinetmaking approaches for kitchens, baths, and built-ins using either style of case construction. The slide is suitable for 1/2 inch, 13 mm, or 5/8 inch, 16 mm, drawer side thickness, which covers common stock dimensions for drawer boxes in many shop standards. The product is described as suitable for rooms exposed to moisture, which aligns it with interior spaces where humidity and occasional condensation can occur, such as residential or commercial wet areas. The design is also noted as being for narrow applications, which points toward uses where side clearances are restrained and an undermount solution helps preserve usable internal drawer width.

Why These Slide Details Help Fit And Performance

The Quadro V6 slide meets or exceeds ANSI/BHMA 156.9 grade 1 requirements, which provides a defined performance benchmark for cycle testing and load that specifiers can match to project documents and hardware schedules. The dynamic load capacity up to 90 lbs and static capacity of 100 lbs on a 21 inch slide, as stated in the ANSI/BHMA 156.9 grade 1 specification, give clear numeric guidance for what this slide is designed to support in service. The soft-close full extension design allows the drawer to open completely while the integrated damping system Silent System moderates closure, which supports both access and controlled motion on drawers storing tools, supplies, or household items. The ball bearing mechanism inside the slide supports the movement of the drawer along the track, which contributes to a stable feel under load and consistent opening and closing over repeated cycles. The combination of slide on installation, tool-less height adjustment, and side adjustment up to plus or minus 2 mm through the 2D front fixing clips helps align drawer fronts in three dimensions, which reduces time spent reworking reveals after cases and fronts are already installed.

Common Questions About This Hettich Undermount Slide

Selecting This Slide For Your Next Installation

The Hettich Quadro V6 18 inch soft-close full extension undermount drawer slide, right hand, combines concealed mounting, integrated damping Silent System, and tool-less 2D adjustment, which supports efficient installation and refined alignment. Its suitability for 1/2 inch or 5/8 inch drawer sides keeps it compatible with common drawer box builds in both face frame and frameless cabinet projects. The galvanized steel construction and ANSI/BHMA 156.9 grade 1 performance give clear data points for spec-driven work in rooms exposed to moisture. Use this specific 9304272 model when a right hand undermount slide with these characteristics matches your drawer length and loading needs.
