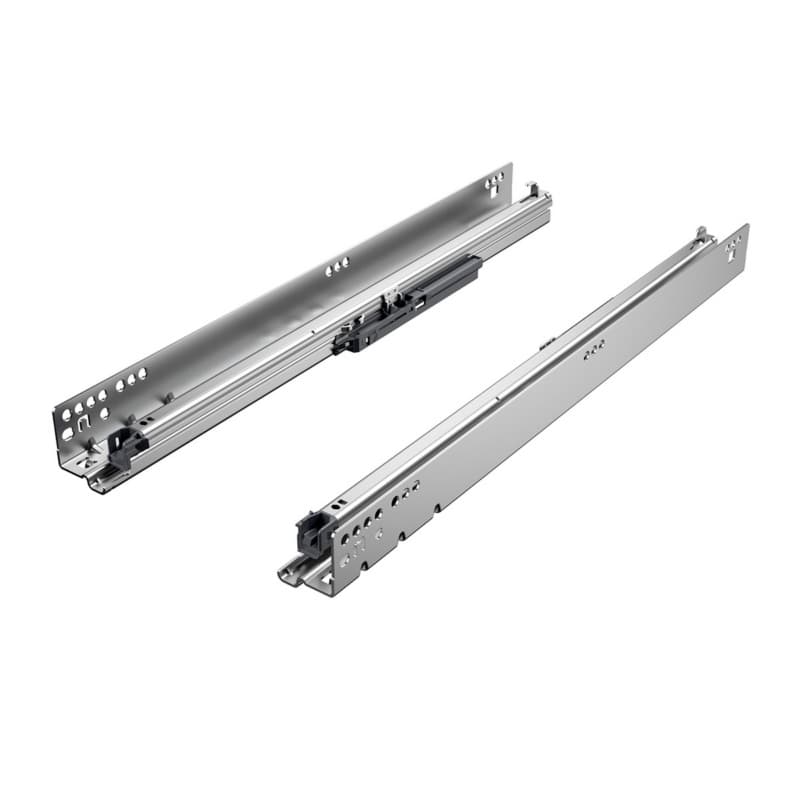

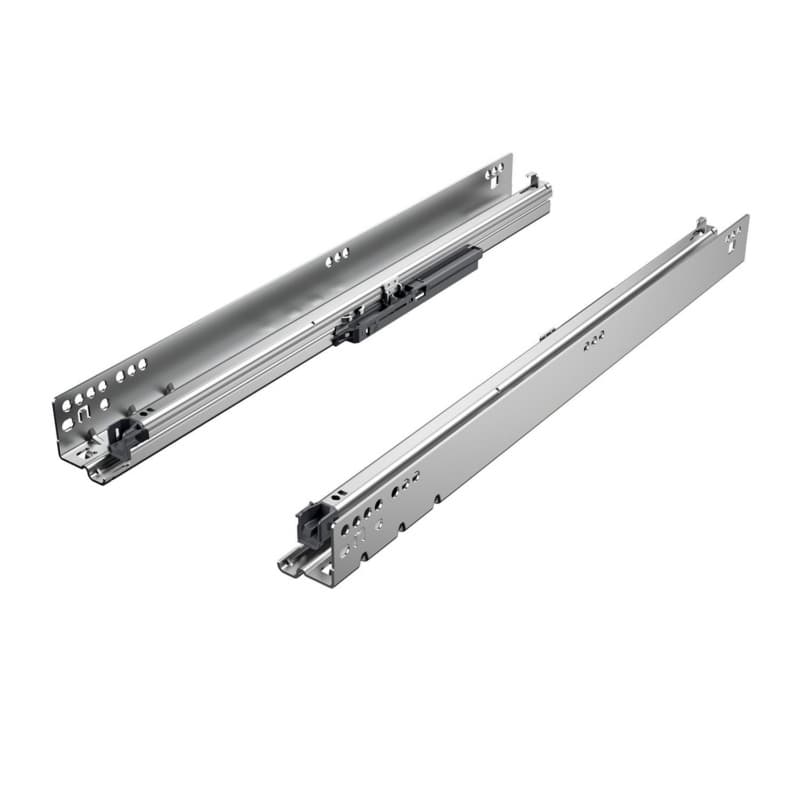

Hettich Quadro V6 Undermount Slide For 9 Inch Drawers
Hettich Quadro V6 undermount slide is a right hand, full extension, soft-close drawer slide designed for 9 inch applications, so the drawer travels fully out while closing smoothly in everyday cabinet use. The slide on installation design with front fixing clips lets the drawer engage the undermount slide quickly, which speeds up drawer installation on shop builds or on-site work. An integrated damping system Silent System slows the drawer near the end of travel, which reduces slamming movement and helps protect contents and joinery from hard impacts. The slide works with 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness, so a shop can standardize on common side materials without changing the slide model. This right hand slide is part of an undermount system that fits narrow applications and supports efficient cabinet hardware layouts.
Key Drawer Slide Details That Support Daily Use
- The full extension action brings the drawer completely out on the Quadro V6 slide, giving clear access to stored items across the entire drawer length and helping reduce reach-in strain during regular use.
- The integrated damping system Silent System slows the drawer at closing, which minimizes noise in kitchens or work areas and reduces stress on the drawer front over repeated use.
- Slide on installation with front fixing clips allows the drawer to connect to the undermount slide without separate tools, which can shorten assembly time and support consistent mounting across multiple cabinets.
- Tool-less height adjustment lets the installer fine-tune the drawer front vertically, which helps align reveals across a cabinet run and improves the finished appearance without removing the drawer.
- Side adjustment up to plus or minus 2 mm with 2D front fixing clips provides lateral tuning of the drawer front, helping achieve even gaps and reducing time spent correcting small misalignments.
- Load capacity up to 90 lbs dynamic (100 lbs static) on a 21 inch length slide, as per ANSI/BHMA 156.9 grade 1 specification, supports typical drawer contents while maintaining rated performance in demanding use.
Installation, Adjustment, And Fit For This Slide
This undermount drawer slide uses slide on installation with front fixing clips, so the drawer box can be brought to the cabinet and engaged directly with the right hand Quadro V6 member. Tool-less height adjustment on the slide lets an installer raise or lower the drawer front after it is mounted, which helps quickly correct small vertical offsets without pulling fasteners. Side adjustment up to plus or minus 2 mm with 2D front fixing clips lets the drawer front shift left or right, which is useful when balancing reveals between adjacent fronts. The slide is designed for 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness, providing a defined fit range that supports consistent drawer construction dimensions. This model is suitable for face frame or frameless applications, so the same right hand Quadro V6 design can be used across different cabinet construction styles in one project.
Using This Hettich Quadro V6 Slide In Cabinet Projects
Where This Full Extension Undermount Slide Works Best
This Hettich Quadro V6 9 inch soft-close full extension undermount drawer slide fits cabinet projects that need a concealed slide with smooth travel and controlled closing. The undermount design keeps the slide beneath the drawer, supporting a clean interior while still delivering full extension for full access to the drawer contents. Its suitability for face frame or frameless applications means it can be used in kitchens, baths, or shop cabinets built with either construction method, supporting consistent hardware selection. The slide is rated for load capacity up to 90 lbs dynamic (100 lbs static), as per ANSI/BHMA 156.9 grade 1 specification on a 21 inch length slide, so it supports typical residential and light commercial drawer loads within that standard. Galvanized steel construction makes the slide suitable for rooms exposed to moisture, such as kitchens, baths, or utility spaces, where metal components benefit from this material protection.
Why These Slide Adjustments Support Accurate Results
The Quadro V6 undermount slide uses tool-less height adjustment, which allows fine vertical positioning of the drawer front while the drawer remains installed, helping dial in gaps and alignment with minimal rework. Side adjustment up to plus or minus 2 mm using 2D front fixing clips gives controlled lateral movement of the drawer front, which is important when aligning multiple drawers in a bank where even small offsets are visible. The slide on installation method with front fixing clips provides a repeatable way to connect drawer boxes to the right hand undermount member, which supports consistent positioning from cabinet to cabinet. Soft-close performance is delivered by the integrated damping system Silent System, which engages near closed position to slow the drawer, contributing to a controlled close that can extend the life of drawer fronts and cabinet structure. Suitability for narrow applications lets this slide work in smaller cabinets where space is tight, helping maintain soft-close undermount function even when cabinet widths are limited.
Common Questions About This Hettich 9304256 Slide
What drawer side thickness does this Quadro V6 slide support?
The Hettich Quadro V6 9304256 slide is designed for 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness, which lets shops build drawers from common stock sizes while keeping the same slide model.
Can this right hand slide be used in face frame and frameless cabinets?
The Hettich 9304256 undermount slide is suitable for face frame or frameless applications, so it can be used across different cabinet construction styles with the same hardware setup.
How does the tool-less height adjustment help during installation?
The Quadro V6 drawer slide offers tool-less height adjustment, allowing quick vertical tuning of the drawer front, which supports fast alignment of reveals without removing the drawer from the cabinet.
What load capacity does this Hettich Quadro V6 drawer slide provide?
This Quadro V6 undermount slide has a load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch length slide, as per ANSI/BHMA 156.9 grade 1 specification, supporting typical drawer loads.
Is this galvanized steel slide suitable for moisture-exposed rooms?
The Hettich 9304256 slide is made from galvanized steel and is suitable for rooms exposed to moisture, making it appropriate for kitchens, baths, and similar interior spaces.
What type of closing action does the Silent System provide?
The integrated damping system Silent System on this Quadro V6 slide slows the drawer as it closes, which reduces slamming impacts and supports quieter cabinet operation over repeated use.
Selecting This Quadro V6 Slide For Your Next Build
The Hettich Quadro V6 9 inch soft-close full extension undermount drawer slide 9304256 combines a right hand design, concealed mounting, and integrated damping system Silent System, so it supports smooth, quiet drawer movement in daily use. Support for 1/2 inch and 5/8 inch drawer side thickness, plus suitability for face frame or frameless applications, allows this galvanized steel slide to serve across multiple cabinet lines while staying consistent with ANSI/BHMA 156.9 grade 1 performance on rated lengths. For projects that need a moisture-suitable, adjustable undermount solution with full extension access, this Quadro V6 model offers a defined set of installation and adjustment features that support accurate, repeatable drawer alignment.
