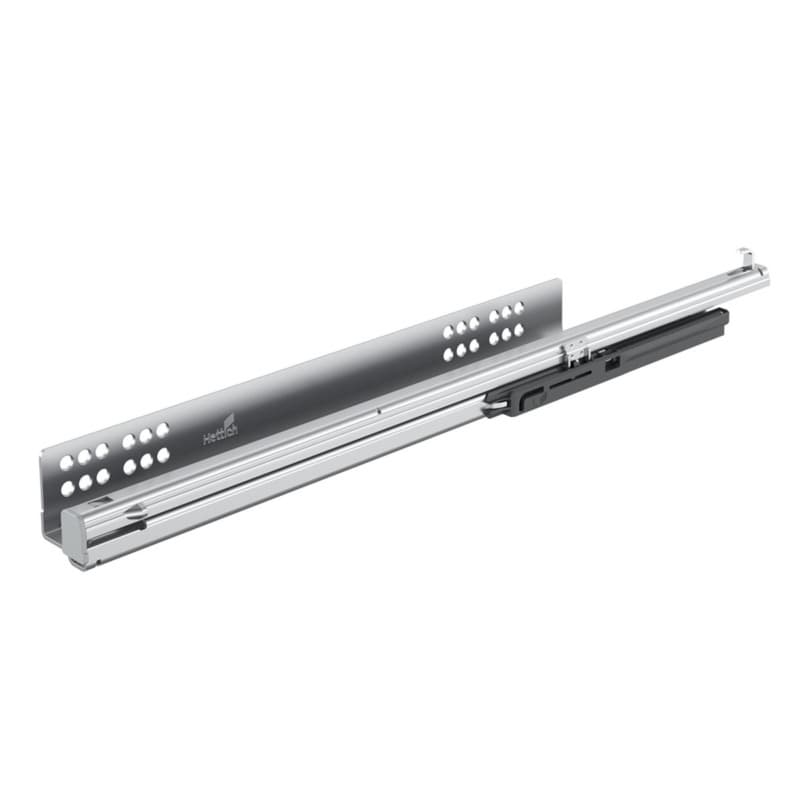

Hettich Quadro V6 500mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047770

Hettich Quadro V6 Undermount Slide Function

Hettich Quadro V6 undermount drawer slide is a full extension runner that supports drawers built for smooth travel across the entire opening, which helps when access to the full drawer depth is needed on cabinet jobs. The integrated Silent System provides soft-close action, so drawers decelerate and close gently, reducing impact stresses on the drawer construction over repeated use. This left hand runner is designed as part of a platform concept for Quadro partial and full extension runners, which keeps cabinet body, drawer, and front panel dimensions consistent when using compatible slide-on Quadro models. The 500mm length suits projects built around that standard depth, supporting predictable drawer geometry in metric-based layouts. As an undermount product in the Quadro V6 range, this runner keeps the hardware under the drawer box, which can be useful where a clean drawer side profile is part of the design intent.

Key Details That Support Drawer Performance

• Slide on installation with latches allows the drawer to be mounted to the runner by sliding it into place and engaging the latching points, which can streamline drawer installation and removal in the shop or on-site.
• Tool-less height adjustment built into the system lets the installer shift drawer front position vertically without hand tools, which helps with quickly aligning reveals across multiple drawers in a cabinet run.
• Integrated Silent System provides controlled soft closing, so drawer movement is slowed near the end of travel, which helps reduce slamming and associated wear on drawer fronts and cabinet faces.
• Load capacity to EN 15338, Level 3 means the runner is tested to that standard, which gives a defined reference for how the slide is intended to perform under rated drawer loads in typical furniture use.
• Galvanised steel construction forms the core of the slide components, which supports mechanical strength while providing a zinc-based surface layer that helps resist corrosion in normal interior environments.

Installation And Drawer Construction Considerations

This Quadro V6 slide with SISY in 500mm left hand configuration is suitable for drawers with a side profile thickness of up to 16 mm, which guides drawer box material choices and side construction on metric cabinetry. The slide on installation method with latches is designed so the drawer box interfaces with the undermount runner from below, which can speed up repetitive installations where multiple same-size drawers are built. Tool-less height adjustment is part of the system, so vertical alignment of the drawer front can be refined after the drawer is mounted, helping to dial in consistent front gaps across a cabinet bank. The platform concept shared between Quadro partial and full extension runners for slide on installation lets the same cabinet body, drawer, and front panel dimensions serve different travel options, which can simplify project planning.

Using This Slide In Drawer And Shelf Projects

Where The Hettich Quadro V6 500mm Slide Fits

The Hettich Quadro V6 500mm slide is intended for use as an undermount drawer runner in furniture or cabinet applications built around a 500mm drawer length, so the runner length aligns with the drawer depth for smooth full extension travel. It is suitable for drawers with a side profile thickness of up to 16 mm, which aligns with many metric board materials and guides how wide the drawer sides can be when planning joinery. The platform concept covering Quadro partial and full extension runners for slide on installation relies on identical cabinet body, drawer, and front panel dimensions, so this runner integrates into systems already using compatible Quadro models. Optional catch and plug components for pull-out shelves and an optional pull-out shelf locating catch can be used with this slide series, allowing the same runner type to be used where a pull-out shelf arrangement is preferred instead of a conventional drawer.

Details That Help With Alignment And Results

This soft close undermount drawer slide uses integrated Silent System technology, so closing movement is damped within the runner, helping maintain a steady feel that supports consistent user experience across multiple drawers. The slide on installation with latches is configured for quick engagement between the drawer and runner, which can reduce handling time when setting up banks of drawers or adjusting them during fitting. Tool-less height adjustment built into the runner system gives a direct way to fine-tune drawer front position, which is important when establishing even reveal lines and reducing time spent reshimming. The load capacity to EN 15338, Level 3 anchors the runner performance in a defined furniture hardware standard, which indicates that typical drawer loads within that level are what the slide is built to handle. Galvanised steel construction supports long-term mechanical function in indoor environments typically encountered in cabinetry work.

Common Questions About This Quadro V6 Runner

Selecting This Slide For Your Next Build

The Hettich Quadro V6 500mm soft-close full extension undermount drawer slide, left hand 9047770, combines slide on installation, integrated Silent System, and tool-less height adjustment to support efficient cabinet and drawer work. Its suitability for drawers with a side profile thickness of up to 16 mm aligns with many metric construction approaches, while the EN 15338 Level 3 load capacity positions it for typical furniture drawer applications. When a project calls for a 500mm undermount runner built on a platform concept shared with other Quadro slide-on models, this galvanised steel slide offers a consistent basis for planning cabinet bodies and drawer fronts.
