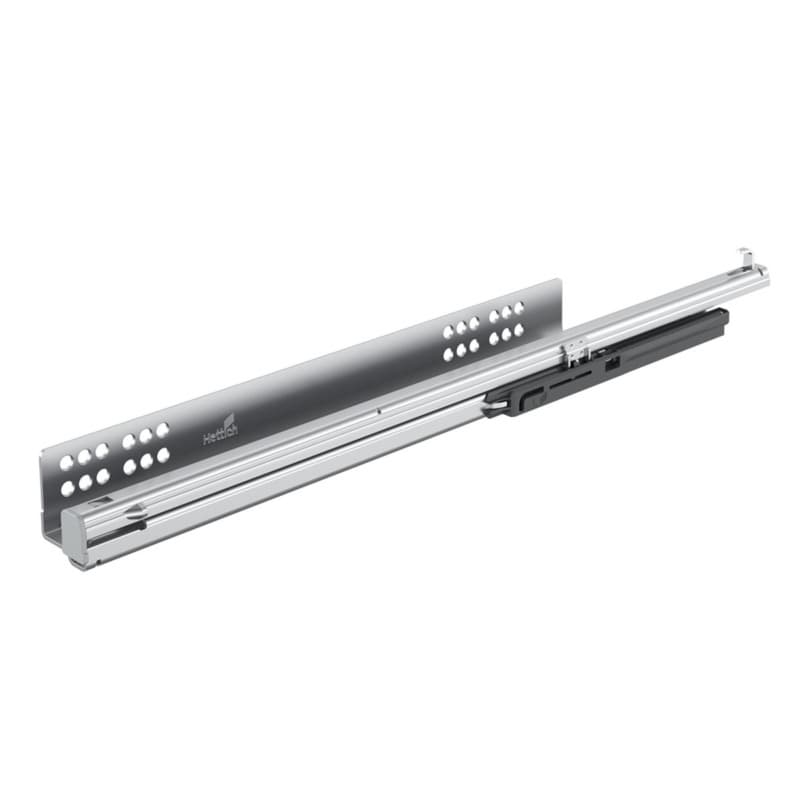

Hettich Quadro V6 550mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047774

Hettich Quadro V6 Drawer Slide For Smooth Undermount Action

Hettich Quadro V6 drawer slide is a 550mm soft-close full extension undermount drawer slide that supports drawers opening fully while staying hidden under the drawer, which helps keep the cabinet interior clean-lined on finished jobs. The left hand design with manufacturer part 9047774 defines the mounting position on the cabinet, which matters when pairing it with its matching right-hand runner in a drawer system. Soft-close performance is delivered by the integrated Silent System, which slows the closing motion so drawers come to rest gently for controlled movement in everyday use. Ball bearing construction guides the runner, which provides consistent sliding action along the full extension travel. The slide is made from galvanised steel, which gives the runner body a corrosion-resistant surface for typical indoor cabinet environments. As part of Hettich America Corporations Quadro V6 range, this runner aligns with a platform concept for coordinated cabinet and drawer dimensions.

Key Working Details For Drawer Slide Selection

• The 550mm length defines the drawer depth this full extension undermount runner supports, which is important when matching the slide to cabinet carcase depth in a run of drawers.
• The integrated Silent System provides the soft-close function within the slide, which reduces drawer slamming and supports smooth, controlled closing in daily use.
• The platform concept uses identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners, which simplifies planning when mixing runner types in one project.
• The slide-on installation with latches provides a defined connection between drawer and runner, which supports repeatable mounting during production or onsite work.
• Tool-less height adjustment is built into the system, which lets the installer fine-tune drawer front position vertically without separate tools during final alignment.
• The load capacity is tested to EN 15338, Level 3, which indicates the runner is verified to that standard for performance under rated loading conditions.

Undermount Slide Installation And Height Adjustment

This Quadro V6 full extension undermount drawer slide uses a slide on installation method with latches, which creates a straightforward engagement between the drawer box and the runner during fitting. The latches secure the drawer to the undermount slide, which helps achieve a repeatable connection point across multiple drawers in a cabinet line. Tool-less height adjustment is part of the installation concept, which lets the installer shift the drawer front vertically to align reveals and front gaps across a bank of drawers. The runner is suitable for drawers with a side profile thickness of up to 16 mm, which defines the side material dimension that will work correctly with the undermount geometry. As a left hand galvanised steel runner, this slide locates on the left underside of the drawer, which pairs with the corresponding right-hand unit in a typical undermount configuration.

Using This Full Extension Undermount Slide In Projects

Where This Quadro V6 Slide Fits Best

This Quadro V6 full extension undermount drawer slide is designed for use in cabinets where the runner is concealed beneath the drawer, which keeps hardware out of sight when the drawer is open. The 550mm length suits drawers built around that depth, which aligns the slide travel with the cabinet carcase for full access to stored contents. Suitability for drawers with a side profile thickness of up to 16 mm means drawer boxes using that side thickness will match the runner interface, which supports consistent fit across a line of drawers. The platform concept that uses identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners allows this slide to work within a standardized carcass design, which is useful when different extension types are specified in different locations of the same project. Optional catch and plug for pull-out shelves expand the slides role to pull-out shelf applications, which offers flexibility when the same runner family is used for both drawers and pull-out shelves. An optional pull-out shelf locating catch is mentioned for these applications, which provides a defined location point for shelf positions when that option is employed.

Why These Slide Details Support Accurate Results

The integrated Silent System soft-close function inside this Quadro V6 undermount slide slows the drawer during closing, which helps protect fronts and cabinet frames from repeated hard impacts. Full extension travel allows the drawer to extend to its rated length, which provides clear visibility and access along the entire drawer interior in service use. The EN 15338, Level 3 load capacity statement indicates testing to that standard, which gives the installer a reference point for performance expectations under load. Galvanised steel construction gives the runner a protective zinc-based surface, which supports long-term service in typical interior furniture environments. The slide-on installation with latches defines how the drawer is connected to the undermount slide, which streamlines assembly when multiple identical drawers are built. Tool-less height adjustment allows vertical tuning of the drawer front after mounting, which helps achieve consistent reveals without disassembling the drawer from the slide. As a left hand runner defined by part number 9047774, this component forms one side of a matched undermount set, which assists in organizing parts and positions during installation on site or in the shop.

Common Questions About This Hettich Quadro V6 Slide

Select This Slide For 550mm Undermount Projects

The Hettich Quadro V6 550mm soft-close full extension undermount drawer slide brings together concealed undermount positioning, integrated Silent System, and tool-less height adjustment, which supports clean appearance and precise alignment in cabinet work. Suitability for drawers with side profile thickness up to 16 mm defines the drawer construction range this runner serves. The EN 15338 Level 3 load capacity and galvanised steel construction describe its tested performance and material, which matter in long-term furniture use. For projects built around the Quadro platform concept, this left hand 9047774 runner fits into standardized cabinet and drawer dimensions, which helps keep layouts consistent across drawers and pull-out shelf applications.
