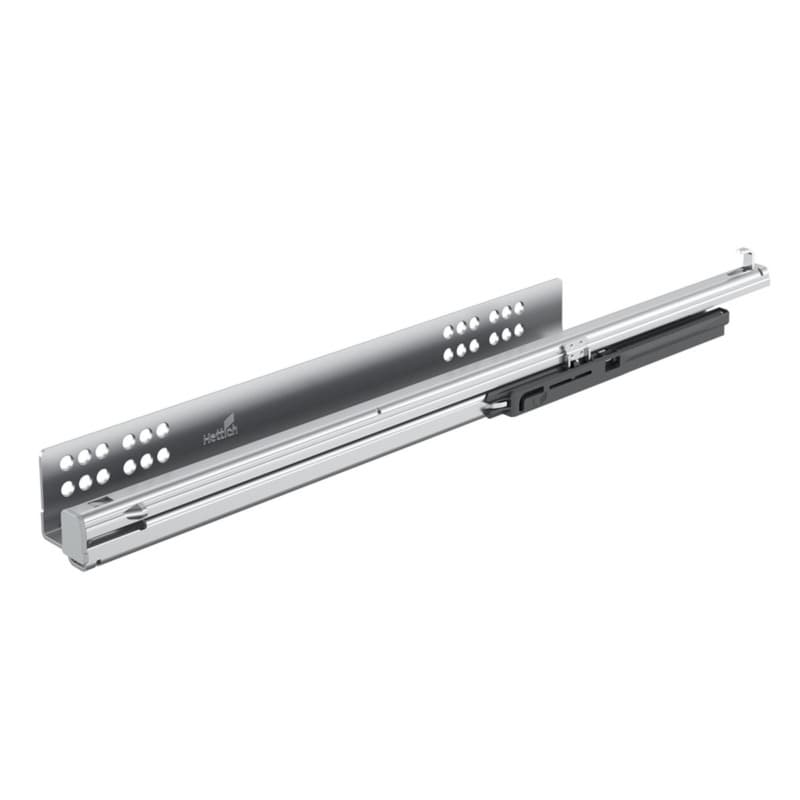

Hettich Quadro V6 580mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047635

Hettich Quadro V6 Drawer Slide For 580mm Drawers

Hettich Quadro V6 drawer slide is a 580mm, full extension undermount drawer slide designed for concealed mounting under the drawer, so the drawer interior stays clear for storage and layout. The left hand design with manufacturer part 9047635 defines the mounting side for planning the cabinet and drawer set. The slide uses ball bearing technology to support the drawer movement, which helps the drawer open and close with consistent travel under normal cabinet use. The integrated Silent System provides soft-close action at the end of travel, so the drawer is gently pulled in during closing for controlled movement in everyday operation. The slide is made of galvanised steel, which provides a robust metal construction for typical kitchen, bath, or furniture cabinet environments where steel runners are preferred.

Key Quadro V6 Features For Daily Drawer Use

• The full extension undermount design lets the 580mm drawer travel out to its full length, so access reaches the back of the drawer in regular cabinet service.
• Slide on installation with latches creates a defined connection between drawer and runner, so the drawer can be mounted to the slide in a repeatable way on similar cabinet bodies.
• Tool-less height adjustment on the slide allows the installer to change drawer front height at the runner, which helps align fronts across a run of cabinets without separate tools.
• The platform concept keeps cabinet body, drawer, and front panel dimensions identical between Quadro partial and full extension runners, so layouts can use the same core dimensions across related drawer types.
• The slide is suitable for drawers with a side profile thickness of up to 16 mm, so drawer boxes within this thickness range can be planned to work with this runner.
• Load capacity to EN 15338, Level 3, defines a tested performance level for the runner, which matters when designing drawers that must carry everyday stored items.

Installation And Height Adjustment Details

The Quadro V6 slide on installation with latches lets the drawer be set onto the undermount runner and secured with the latch interface, which simplifies connecting the drawer after the cabinet body is prepared. The tool-less height adjustment is built into the system, so the drawer front position can be changed at the slide without separate adjustment hardware, helping to fine-tune vertical gaps between fronts during fitting. The left hand designation 580mm runner works as one side of a matched set, so its length and orientation define drilling and drawer length planning when setting up cabinet runs.

Using This Quadro V6 Slide In Cabinet Projects

Where This 580mm Undermount Slide Fits Best

This Quadro V6 undermount drawer slide belongs to the Hettich America Corporation range of undermount drawer slides, so it is suited to projects that call for concealed runners under the drawer. The 580mm length supports drawer boxes planned around that nominal depth, which matters when coordinating carcass depth and drawer length in cabinets or furniture pieces. Suitability for drawers with a side profile thickness of up to 16 mm ties the runner to drawer box construction that uses sides within this thickness, so material selection and joinery can be aligned to the slide requirements. The load capacity to EN 15338, Level 3, positions the slide for drawers intended to carry everyday stored contents within that standard, supporting planning of what each drawer will regularly hold.

Details That Support Alignment And Repeatability

The platform concept, with identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners for slide on installation, helps cabinet runs share the same basic drilling and sizing, which reduces layout variation between different drawer types. Integrated Silent System soft-close action is part of the runner, so closing behavior remains consistent across installations using this model, which supports predictable drawer travel over a run of cabinets. The slide on installation with latches contributes to repeatable mounting, because the same latch interface is used each time a drawer is set on the runners across multiple cabinets. The tool-less height adjustment allows final front alignment to be handled at the runner, which streamlines adjustments during fitting and can reduce the need to rework drawer box or front mounting positions after initial install.

Common Questions About This Quadro V6 Slide

Selecting This Slide For Your Next Drawer Run

This Quadro V6 undermount drawer slide from Hettich America Corporation combines 580mm full extension travel, integrated Silent System soft-close, and tool-less height adjustment, so cabinet projects gain concealed runners, consistent closing behavior, and adjustable fronts using galvanised steel construction tested to EN 15338, Level 3.
