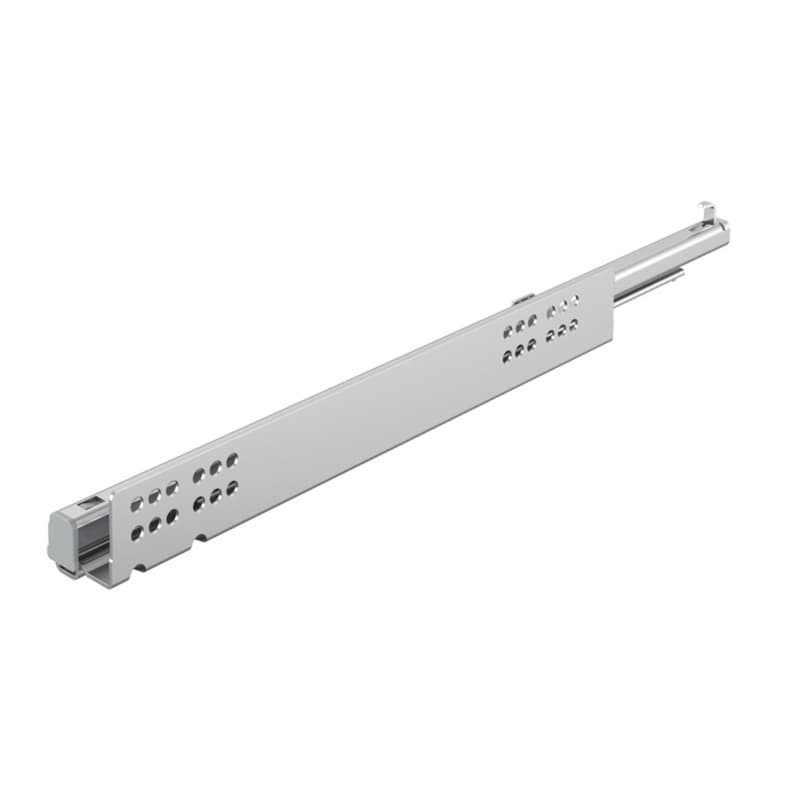

Hettich Quadro V6 400mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9047736

Hettich Quadro V6 400mm Drawer Slide For Smooth Action

Hettich Quadro V6 400mm drawer slide is a full extension undermount drawer runner that supports the drawer from below, keeping hardware out of sight while still carrying the load along the entire travel. The right hand orientation of part 9047736 defines its position on the drawer pair, which helps maintain consistent layout when repeating the same configuration across a project. The soft-close function is provided by the integrated Silent System, which slows the closing movement and brings the drawer to rest at the end of travel, reducing slamming noise and impact on the cabinet. The ball bearing runner design guides the drawer movement along precision tracks, which supports a smooth feel under load. The galvanised steel construction protects the runner surfaces, helping the slide maintain performance when drawers are cycled repeatedly in typical woodworking and cabinet environments.

Key Quadro V6 Details That Support Daily Use

• The full extension undermount design lets the drawer travel its full length, so contents remain accessible while the slide stays hidden under the box for a clean cabinet interior.
• Slide on installation with latches creates a defined mounting interface between drawer and runner, supporting repeatable engagement when installing matching drawers in a run.
• Tool-less height adjustment on the slide connection enables vertical tuning of the drawer front, which simplifies fine alignment across multiple fronts after the runners are fixed.
• The integrated Silent System soft-close mechanism slows the last part of travel, which reduces closing shock into the cabinet and helps protect front alignment over continued use.
• Suitability for drawers with a side profile thickness of up to 16 mm matches common drawer side materials, allowing the same runner to serve a standard construction approach.
• The EN 15338 Level 3 load rating defines the slide performance level under standardized testing, which supports planning for drawers that will see frequent opening and closing.

Undermount Slide Installation And Adjustment Details

The slide on installation method with latches lets the drawer box connect to the Quadro V6 runner after the undermount slides are anchored in the cabinet, which separates carcass work from drawer fitting to streamline workflow. Once the drawer is seated onto the right hand slide, the tool-less height adjustment allows the front to shift vertically without loosening runner screws, which helps bring reveals into line across a bank of drawers. The platform concept uses identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners configured for slide on installation, allowing the same case and drawer sizing to support both motion options. The 400 mm length of this undermount slide defines the nominal drawer depth it is designed to support, tying the hardware choice directly to the cabinet interior depth.

Using This Hettich 9047736 Slide In Cabinet Projects

Where This 400mm Undermount Slide Works Best

This Hettich Quadro V6 undermount drawer slide is specified at 400 mm length, so it suits drawer boxes designed to match that nominal depth within the cabinet body. The undermount configuration keeps the runner below the drawer sides, which can be useful when a clean interior appearance is important or when side clearance is limited by the cabinet opening. Suitability for drawer side profiles up to 16 mm means drawer construction that stays within that thickness range will sit correctly on the runners, supporting proper engagement of the slide on installation latches. The right hand designation defines this slide as the component that supports the right side of the drawer pair, which helps maintain orientation during layout and installation in production or shop settings.

Details That Support Alignment, Load, And Repeatability

The slide on installation with latches establishes a consistent interface between the Quadro V6 runners and the drawer, which supports repeatable fit when producing multiple drawers with the same cabinet and drawer dimensions. Tool-less height adjustment at the connection point allows vertical fine-tuning of the drawer front after the carcass and runners are in place, reducing the need to reposition cabinet screws when reveal corrections are needed. The integrated Silent System combines soft-close damping with the runner, so the closing movement is controlled within the same hardware, limiting separate mechanisms that could affect alignment. The EN 15338 Level 3 load capacity confirms that this galvanised steel slide is tested to a defined performance level, which supports use in drawers that are opened and closed frequently in normal woodworking environments. The platform concept that shares cabinet body, drawer, and front panel dimensions across Quadro partial and full extension runners for slide on installation allows one set of carcass and drawer sizes to serve different extension choices, which can streamline both design and production when mixing drawer types in a project.

Common Questions About This Quadro V6 Drawer Slide

Selecting This Quadro V6 Slide For Your Drawers

This Hettich Quadro V6 400mm undermount drawer slide with integrated Silent System, slide on installation, and tool-less height adjustment brings full extension access, soft-close action, and fine alignment to drawers built with side profiles up to 16 mm. The EN 15338 Level 3 performance rating and galvanised steel construction define its tested load and material characteristics for cabinet projects that rely on repeated, smooth drawer movement.
