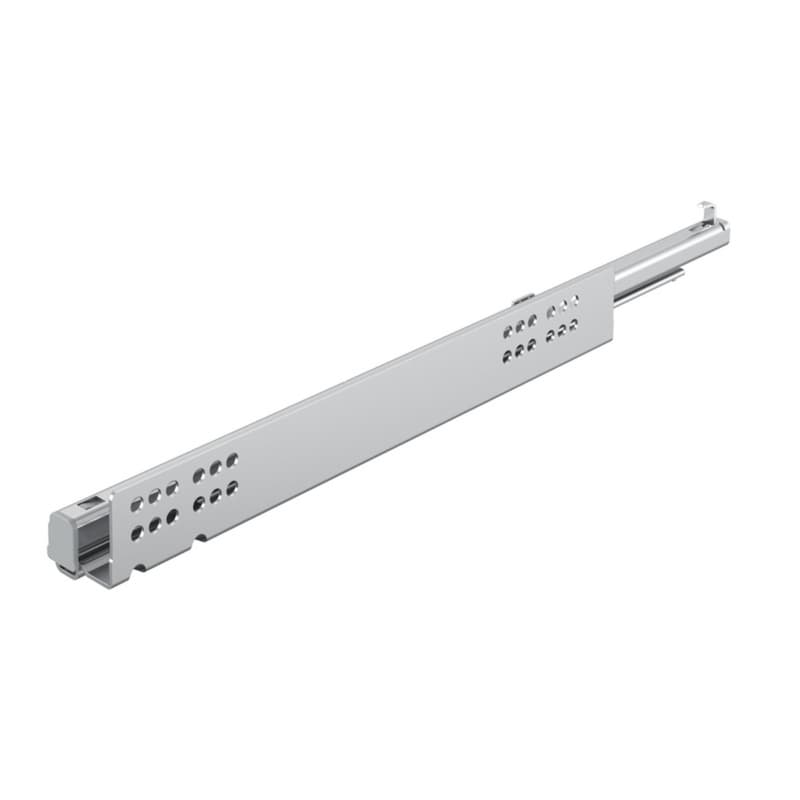

Hettich Quadro V6 280mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9047566

Hettich Quadro V6 Drawer Slide For Smooth Undermount Use

Hettich Quadro V6 drawer slide sets up a 280mm soft-close full extension undermount runner that supports drawers where full access and controlled closing are important. This right hand zinc runner uses ball bearing technology to guide the movement, so the drawer travels on a defined path that supports consistent operation over time. As an undermount drawer slide in galvanised steel, it works from beneath the drawer side, leaving the drawer sides visually clear while the steel construction provides a solid running base in standard cabinet environments. Designed as part of Hettich America Corporation's Quadro V6 platform, this specific runner serves locations where a 280mm length and right hand orientation are required in the overall drawer system layout.

Key Quadro V6 Features That Support Cabinet Work

• The soft-close full extension function lets the drawer travel its full 280mm length and then close gently, which helps protect fronts and cabinet bodies in everyday use.
• The undermount design locates the runner under the drawer sides, maintaining a clean side profile while still carrying the load on the concealed hardware.
• Ball bearing guidance inside the Quadro V6 runner provides defined motion along the slide path, supporting repeatable opening and closing cycles.
• The zinc, galvanised steel construction gives the slide a metal structure that resists typical shop and cabinet interior conditions while supporting the rated load to EN 15338, Level 3.
• The right hand configuration allows this runner to be installed on the designated side within a Quadro V6 pair so the system tracks correctly.
• The 280mm nominal length sets the drawer travel distance, which helps match the slide to cabinet depth and desired access range in the project.

Installation Details For Slide On Undermount Mounting

This Quadro V6 slide supports slide on installation with catches, which lets the drawer connect to the undermount runner through a defined engagement rather than separate fastening steps. Tool-less height adjustment is built into the system, so the installed drawer front can be raised or lowered on the slide without additional tools, helping align fronts across a run of cabinets. The runner is suitable for drawers with a side profile thickness of up to 16 mm, which defines the drawer side build the slide can accept and guides material selection for new drawers or replacements.

Using The Hettich Quadro V6 Slide In Cabinet Projects

Where This 280mm Undermount Slide Fits Best

This Hettich undermount drawer slide serves cabinet drawers that fall within the 280mm depth range and use sides up to 16 mm thick, so it suits applications where a compact drawer still needs full extension access. The platform concept behind the Quadro partial and full extension runners allows an identical cabinet body, drawer and front panel dimension for slide on installation, which means a cabinet built around this platform can use either partial extension or full extension Quadro runners without changing those basic dimensions. The EN 15338, Level 3 load capacity rating anchors the slide in a tested performance class, which provides a reference point when this runner is selected for drawers that must support loads consistent with that level in everyday cabinet use.

How Quadro V6 Details Support Repeatable Alignment

The integrated Silent System in this slide provides soft-close damping as part of the runner, so each closing cycle slows and seats in a controlled way that helps keep drawer fronts from impacting the cabinet frame. Because the platform concept keeps cabinet body and drawer dimensions identical between partial and full extension Quadro runners for slide on installation, a shop can standardize drilling and sizing while choosing the runner type that matches the access requirement on each cabinet. Tool-less height adjustment on the Quadro V6 runner allows front alignment changes after mounting by shifting the drawer position within the slide, which supports fine tuning across multiple drawers without reworking the cabinet. Using a right hand, galvanised steel ball bearing runner in this configuration gives the assembly a defined side orientation and a robust running surface, which helps maintain consistent action when the drawer is opened to full extension and then returned under soft-close control.

Common Questions About This Hettich Quadro V6 Slide

Selecting This Quadro V6 Slide For Your Project

The Hettich Quadro V6 drawer slide with 280mm full extension, integrated Silent System and undermount design brings soft-close movement, slide on installation with catches and tool-less height adjustment into one right hand runner. With suitability for drawer sides up to 16 mm and a load capacity tested to EN 15338, Level 3, it aligns with drawer boxes and cabinet bodies built to the Quadro platform concept where identical cabinet, drawer and front panel dimensions serve both partial and full extension options. For projects matching these dimensions and requirements, this Hettich undermount drawer slide provides a defined way to plan drawer action and alignment.
