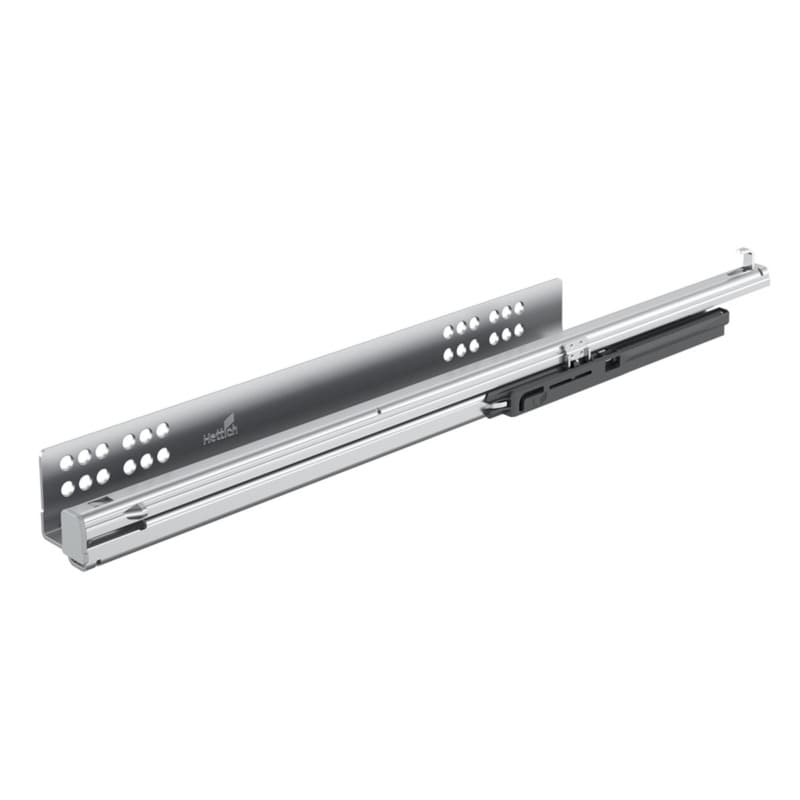

Hettich Quadro V6 450mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047751

Hettich Quadro V6 Undermount Slide Purpose

Hettich Quadro V6 undermount drawer slide defines this left hand full extension runner as a concealed option that supports a smooth pull-out, which matters when building higher end drawers where visible side-mount hardware is not desired. The 450mm length positions this slide for cabinets designed around that standard depth, helping layouts stay consistent across a bank of drawers. Its full extension action moves the drawer fully out of the cabinet, giving clear access to the back of the drawer, useful where contents would otherwise be hard to reach. The integrated Silent System adds a soft-close function that cushions closing movement, which helps drawers close quietly in busy shops, offices, or residential spaces. Being part of Hettich Americas Quadro V6 range ties this slide to a proven product class, helping installers match existing specifications when expanding or updating projects.

Key Quadro V6 Slide Details For Projects

• The slide on installation with latches means the drawer can be attached directly to the runners using the dedicated latching interface, which speeds up mounting during production runs and supports repeatable positioning from drawer to drawer.
• The tool-less height adjustment built into the system allows vertical alignment changes without hand tools, so installers can fine-tune front panel reveals quickly during fitting or later adjustment work on site.
• The integrated Silent System soft-close mechanism controls the closing movement inside the runner, which reduces slamming forces on the drawer and cabinet, supporting smoother operation in everyday use.
• The platform concept using identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners standardizes the carcass and drawer design, which simplifies planning when mixing different slide types in one project.
• The galvanised steel construction provides a corrosion-resistant surface on the slide components, which supports service life in typical indoor cabinet environments where metal parts may face humidity changes.

Installation And Fit Details For This Slide

The slide on installation method defines how this Quadro V6 model connects the drawer to the runners, so cabinetmakers can design drawer boxes around that mounting style from the start. Latches used in the system give a positive connection point between drawer and slide, helping drawers locate accurately on the undermount hardware. The tool-less height adjustment then lets the installer shift the drawer front vertically relative to the cabinet, which is important for lining up reveals across multi-drawer stacks. Because this runner is specified suitable for drawers with a side profile thickness of up to 16 mm, it sets a clear design envelope for the drawer side material, helping shops choose side thickness that fits the mechanism. The left hand designation identifies this piece as the left side runner in the pair, guiding correct placement during assembly.

Using The 450mm Left Hand Quadro V6 In Work

Where This 450mm Drawer Slide Fits Best

The 450mm length of this Hettich Quadro V6 soft-close full extension undermount slide suits cabinet bodies built for medium-depth drawers, so it aligns well with many kitchen, bath, or office storage layouts designed around that metric depth. Its suitability for drawers with a side profile thickness of up to 16 mm targets typical board and solid timber side constructions within that dimension, which helps when standardizing drawer components across a project. As a left hand runner, this slide works on the left side of the drawer and cabinet assembly, pairing with the corresponding right hand unit to create a balanced running system. The undermount design positions the runner beneath the drawer rather than on the side, which leaves the drawer sides visually clean and can support a more streamlined interior appearance.

How Quadro V6 Details Support Repeatable Results

The platform concept, using identical cabinet body, drawer, and front panel dimensions for both Quadro partial and full extension runners for slide on installation, lets shops design one core cabinet and drawer set, then choose between partial or full extension as needed, reducing rework in drawings and machining. Because this Quadro V6 slide holds a load capacity to EN 15338, Level 3, it follows a defined European standard load rating, which helps specifiers match drawer use to the tested performance level in their documentation. The integrated Silent System inside the slide manages closing energy, which supports consistent soft-close behavior across many drawers on a project. Galvanised steel construction in the runner components gives the hardware a treated metal surface, which supports durability under typical indoor humidity and handling. The slide on installation with latches combines with the tool-less height adjustment to create a mounting and alignment process centered on mechanical interfaces rather than separate brackets, which streamlines fitting sequences in workshop or onsite conditions.

Common Questions About This Quadro V6 Slide

Choose This Slide For 450mm Soft-Close Drawers

This Hettich Quadro V6 450mm soft-close full extension undermount drawer slide in galvanised steel combines slide on installation, integrated Silent System, and tool-less height adjustment, which together support efficient assembly and refined closing behavior. Its suitability for drawers with side profile thickness up to 16 mm anchors drawer design, while the EN 15338 Level 3 load capacity ties performance to a recognized standard. For projects needing a left hand 450mm undermount runner within the Quadro platform concept, this model provides a clear, spec-driven choice.
