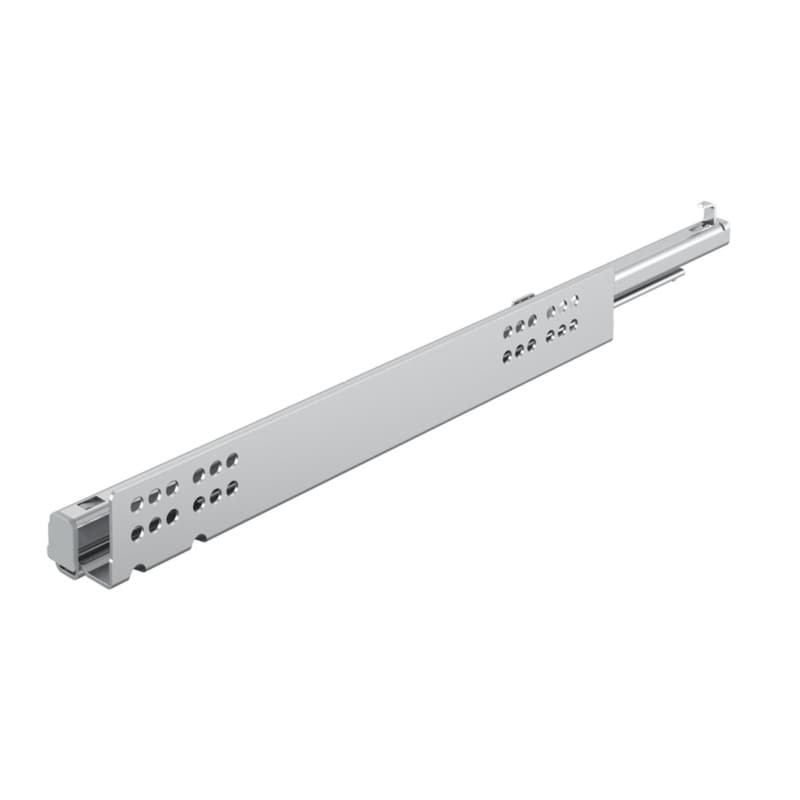

Hettich Quadro V6 450mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9047752

Hettich Quadro V6 450mm Drawer Slide For Smooth Use

Hettich Quadro V6 450mm drawer slide is a full extension undermount runner that supports the drawer from below, keeping the sides clear while still allowing the drawer to open its full length for direct access to stored contents. The integrated Silent System provides soft-close action, so the slide controls the closing movement and brings the drawer to a gentle stop, which helps protect fronts and reduces noise in day-to-day use. This runner is designed for slide on installation with latches, so the drawer can be mounted to the slide by engaging the front area instead of relying on complex fasteners, which supports straightforward assembly in the shop or on site. The slide is suitable for drawers with a side profile thickness of up to 16 mm, matching many modern cabinet constructions and helping keep box design consistent across a project. The Quadro platform concept aligns cabinet body, drawer, and front panel dimensions between partial and full extension versions, which simplifies planning when mixing runner types within the same job.

Key Quadro V6 Details That Support Your Work

• The full extension undermount design allows the drawer to travel its entire length, making it easier to reach items at the back without redesigning cabinet depths.
• The integrated Silent System soft-close function controls the last part of the closing stroke, which helps reduce slamming forces on drawer fronts and face frames over repeated use.
• Slide on installation with latches creates a defined connection point at the runner front, which can speed up drawer installation compared to systems that require more steps at each corner.
• Tool-less height adjustment is built into the system, allowing vertical alignment of the drawer front to be corrected on site without extra tools, which helps fine-tune reveals on installed cabinetry.
• The platform concept keeps cabinet body, drawer, and front dimensions identical between Quadro partial and full extension runners, supporting standardized box production even when different extension types are used.
• Suitability for drawers with side profile thickness of up to 16 mm ties directly to common panel materials, helping align slide choice with standard board sizes in many cabinet shops.
• The load capacity tested to EN 15338, Level 3 reflects performance under a defined European furniture standard, giving a quantified basis for using the slide in demanding drawer applications.
• The galvanized steel construction resists surface corrosion of the runner components, which supports service life in typical indoor furniture and cabinet environments.

Installation, Height Adjustment, And Slide Fit Details

This Quadro V6 runner uses slide on installation with latches, so the drawer connects to the undermount slide by engaging the front section, establishing a repeatable interface that supports consistent mounting on multiple boxes. Tool-less height adjustment is integrated into the system, and this vertical adjustment feature allows the drawer front position to be fine-tuned after mounting, which is useful for lining up reveals across a cabinet run. The slide is suitable for drawers with a side profile thickness of up to 16 mm, tying the runner geometry to common panel thickness and helping the drawer box design track directly to the slide specification. As a full extension undermount drawer slide, it carries the drawer fully out while remaining concealed underneath, which combines clear access with a hidden runner layout.

Using This 9047752 Undermount Slide In Projects

Where This Hettich Quadro V6 Slide Fits Best

This Hettich America Corporation Quadro V6 undermount drawer slide is designed as a full extension runner for drawers built on the Quadro platform concept, which means cabinet body, drawer, and front panel dimensions align across both partial and full extension versions to keep casework planning consistent. The 450 mm length targets drawer depths built around that nominal dimension, helping layout when cabinet interiors are organized around metric-based hardware. The runner is suitable for drawers with side profile thickness of up to 16 mm, so it fits many furniture and cabinet boxes built from common panel materials in that range. The integrated Silent System soft-close action makes this slide appropriate for applications where controlled closing and reduced impact are valued, such as residential or commercial casework that sees frequent opening and closing.

How Quadro V6 Design Supports Repeatable Results

The slide on installation with latches creates a defined interface between the 9047752 right hand runner and the drawer, which helps produce consistent mounting points from one drawer to the next and supports efficient production workflows. Tool-less height adjustment is built into the Quadro V6 system, providing a way to shift the drawer front vertically after the drawer is hanging on the undermount slide, which reduces rework when aligning fronts across stacked or side-by-side drawers. The platform concept used for Quadro runners keeps cabinet body, drawer, and front dimensions identical between partial and full extension options, so a shop can standardize box construction while varying the runner performance where needed. Testing to EN 15338, Level 3 gives this galvanized steel slide a defined load capacity classification, which supports its use in drawers that must handle loads specified under that furniture standard. As a full extension undermount design, the slide keeps the hardware hidden beneath the drawer box while still allowing access across the full drawer depth, which helps combine clean aesthetics with practical reach into the cabinet.

Common Questions About The Quadro V6 450mm Slide

Selecting This Slide For Your Drawer Project

The Hettich Quadro V6 450mm soft-close full extension undermount drawer slide brings together slide on installation with latches, tool-less height adjustment, and an integrated Silent System, so it supports efficient mounting and controlled closing in everyday cabinet work. Its suitability for drawers with side profile thickness of up to 16 mm ties the runner to many panel-based drawer designs, while the Quadro platform concept coordinates cabinet body, drawer, and front dimensions across related runners. The load capacity tested to EN 15338, Level 3 and galvanized steel construction provide a defined performance level for demanding drawer applications. For projects built around 450 mm deep drawers and a concealed undermount layout, this right hand Quadro V6 slide is designed to serve as the core running component.
