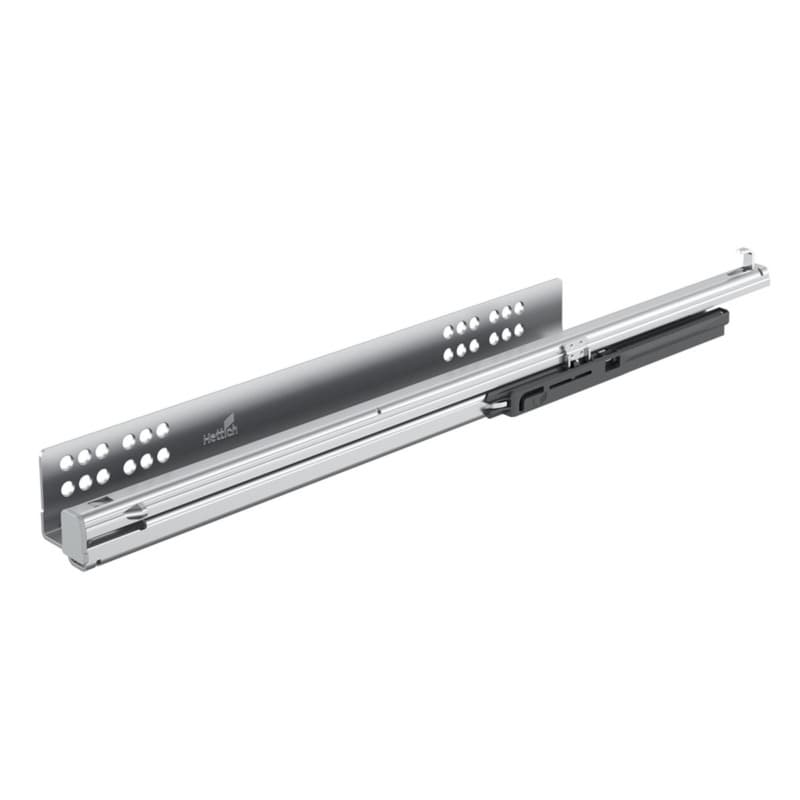

Hettich Quadro V6 480mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047756

Hettich Quadro V6 480mm Soft-Close Undermount Slide

Hettich Quadro V6 480mm soft-close undermount drawer slide gives a full extension runner that mounts under the drawer, so the hardware stays hidden while the drawer travels its complete length. The integrated Silent System provides soft-closing action, so drawers close gently and consistently, which helps reduce impact on the cabinet structure over repeated use. The slide on installation with latches lets the drawer connect to the runner without separate tools, which speeds installation and simplifies removal and refitting during a job. This left hand runner with ball bearing design supports smooth motion under load, which helps drawers run evenly in daily operation. The galvanised steel construction resists corrosion in normal indoor environments, which supports long-term performance in kitchen, bath, or shop cabinetry.

Key Slide Details That Support Cabinet Builds

• The full extension runner design lets the drawer open its full 480mm length, giving clear access to stored items and simplifying fitting and adjustment at the back of the drawer space.
• The integrated Silent System soft-close action slows the final travel of the drawer, which reduces slamming, limits noise in living spaces, and eases wear on drawer fronts and cabinet frames.
• Slide on installation with latches connects the drawer to the runner without tool work at the joint, which helps installers work faster when setting multiple drawers and when removing drawers for site finishing.
• Tool-less height adjustment at the runner level lets the installer shift drawer front position vertically, which helps line up reveals across a run of cabinets without pulling the drawer apart.
• The galvanised steel construction provides a protective zinc layer on the runner, which supports resistance to indoor moisture and handling during transport and fitting on site.
• The runner design uses ball bearings, which support smooth sliding motion under load and help drawers feel consistent over repeated opening and closing cycles.

Installation And Drawer Fit Details For This Slide

This Quadro V6 runner works with drawers that have a side profile thickness of up to 16 mm, so it suits common European-style drawer box materials in that range. The slide on installation with latches means the drawer engages the undermount runner directly, helping installers snap the box onto the slide once the cabinet member is fixed. Tool-less height adjustment built into the system lets the installer fine-tune the front position vertically, which is useful when aligning multiple drawer fronts to the same reference line. The platform concept keeps the cabinet body, drawer, and front panel dimensions identical for Quadro partial and full extension runners for slide on installation, which simplifies planning when mixing runner types in the same project.

Using This Quadro V6 Runner In Real Projects

Where This 480mm Undermount Slide Fits Best

This Hettich Quadro V6 480mm full extension undermount drawer slide suits cabinet projects that call for drawers around 480mm deep, giving access across the full depth for storage or hardware access at the back. The product is part of a platform concept with identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners for slide on installation, which helps designers and installers keep one drilling pattern across a run of cabinets. The runner is suitable for drawers with a side profile thickness of up to 16 mm, matching many standard drawer box constructions in furniture and built-in cabinetry. Its left hand designation identifies it as the runner for the left side of the assembly, which helps match it with the corresponding right hand component during layout and installation.

Details That Support Alignment And Repeatable Results

The integrated Silent System in this undermount slide manages the closing speed of the drawer, which supports a controlled, soft-close motion that protects front gaps and reduces adjustment callbacks from hard slamming. The slide on installation with latches reduces reliance on tools at the drawer-to-runner connection, which supports repeatable installation when fitting multiple units by allowing a consistent engagement method. Tool-less height adjustment helps correct small variations in cabinet or drawer construction by allowing quick vertical tuning of the drawer front, improving the visual alignment of reveals across various cabinet bays. The ball bearing design supports smooth running characteristics over the life of the installation, helping drawers feel precise and consistent. The runner meets load capacity to EN 15338, Level 3, which indicates it is tested for performance under defined loading and cycling conditions relevant to furniture hardware applications.

Common Questions About This Hettich Quadro V6 Slide

Choose This Slide For Soft-Close Undermount Projects

The Hettich Quadro V6 480mm soft-close full extension undermount drawer slide with integrated Silent System combines hidden mounting, controlled closing, and tool-less height adjustment, which supports accurate, repeatable drawer alignment. Its suitability for drawers with side profile thickness up to 16 mm and its role in a platform concept with shared cabinet and front dimensions make it practical when standardizing layouts across a project. The galvanised steel, ball bearing construction and EN 15338, Level 3 load capacity rating give a tested runner option for cabinetry where smooth motion and consistent closing behavior are important. Select this left hand slide when specifying a Quadro V6 undermount system built for efficient installation and precise drawer front alignment.
