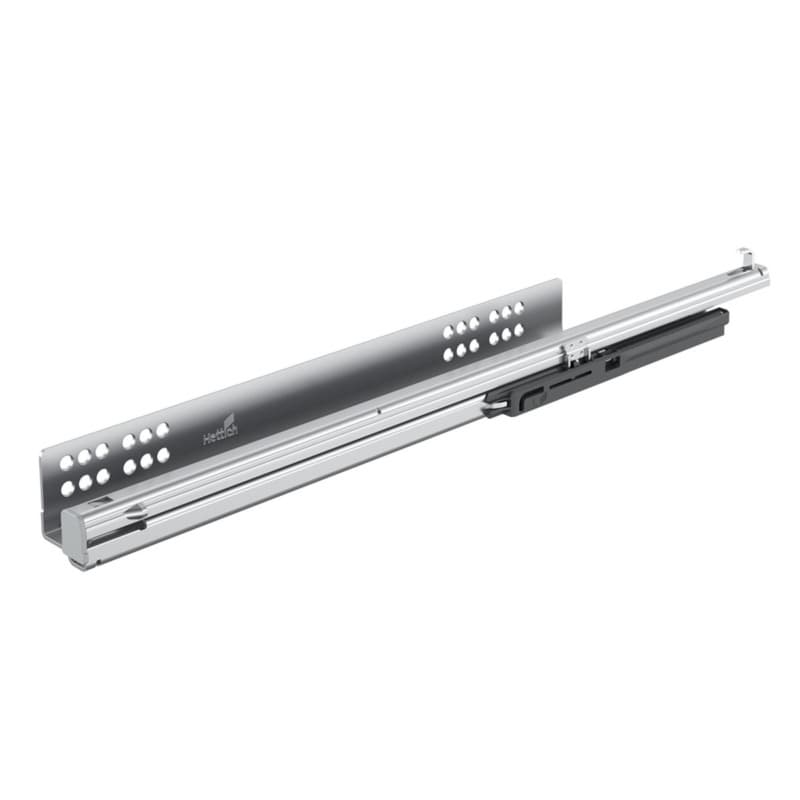

Hettich Quadro V6 300mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047647

Hettich Quadro V6 300mm Drawer Slide Purpose

Hettich Quadro V6 300mm drawer slide provides a soft-close, full extension undermount runner, so a drawer can open its full length while the mechanism stays out of sight under the drawer, useful when a clean cabinet interior is important on finished work. This slide is specified as left hand, which positions it on the left underside of the drawer, helping align with matching right-hand hardware in standard Quadro V6 layouts. The runner is described as a ball bearing design, which supports controlled movement along the slide, important where smooth travel supports precise cabinet use. Its identity as an undermount drawer slide places the running gear below the drawer box, valuable when side clearance is reserved for tight cabinet openings.

Key Functional Details For Drawer Projects

• The slide offers full extension function, allowing the drawer to travel out to access contents at the back, which matters when cabinet depth is fully used and visibility to the rear is needed for regular use.
• The product description lists soft-close performance by way of an integrated Silent System, so the runner cushions the closing motion, reducing impact at the end of travel, helpful where quieter operation and gentler closing are desired.
• The slide length is described as 300mm, giving a fixed nominal extension length, which matters when matching runner length to cabinet carcase depth during project layout and runner selection.
• The slide is identified as an undermount type from the Quadro V6 platform, positioning it beneath the drawer side, important where side-mounted hardware would interfere with cabinet clearances or visible hardware lines.
• The brand is Hettich America Corporation and the manufacturer part number is 9047647, providing a specific reference when aligning the slide with design documents or matching with catalog part listings.

Installation And Adjustment Characteristics On Site

The web description specifies slide on installation with catches, so the drawer box can be connected onto the runners by sliding the components together until they engage the catches, which helps during fit-out when drawers are installed after the cabinet is set. Tool-less height adjustment is also stated, meaning the installed drawer height relative to the runner can be altered without tools, useful for fine-tuning front alignment along a cabinet run. The product is noted as a left hand slide, so it fits on the left underside of the drawer, aligning with the intended handed layout of the Quadro V6 system in cabinet construction.

Using This Quadro V6 Slide In Cabinet Work

Where This Undermount Slide Is Applied

The category describes this item under drawer slides and undermount slides, so it is intended for use where drawers are guided from below rather than from the sides, relevant for cabinetry that calls for concealed runners. The description states it is suitable for drawers with a side profile thickness of up to 16 mm, which defines a specific drawer side dimension range when designing drawer boxes to match this slide series. The platform concept note explains that the cabinet body, drawer, and front panel dimensions remain identical for Quadro partial and full extension runners for slide on installation, so a builder can work with one set of carcase and drawer dimensions while choosing between different Quadro extension options.

Why These Slide Details Support Consistent Results

The specified suitability for drawer side profiles up to 16 mm gives a clear upper thickness limit, which supports repeatable box construction because drawer sides can be sized to that thickness and stay compatible with the runner interface. The platform concept referencing identical cabinet body, drawer, and front panel dimensions means once those dimensions are set around the Quadro standard, switching between partial and full extension versions does not require changing the basic cabinet or drawer sizing, valuable in production where design consistency supports efficient layouts. The product is described as made of galvanised steel, so the runner components use a coated steel material, significant where a metal slide construction supports typical drawer load demands and a galvanised finish suits normal indoor cabinet environments.

Common Questions About This Quadro V6 Slide

Selecting This Slide For Your Drawer Project

This soft-close full extension drawer slide pairs a 300mm undermount Quadro V6 runner with slide on installation, so a project can use concealed, smooth-running hardware built around standard cabinet, drawer, and front panel dimensions. With suitability for drawer side profiles up to 16 mm, tool-less height adjustment, and galvanised steel construction, it supports practical cabinet layouts that rely on consistent runner interfaces. When a left hand, soft-close Quadro V6 undermount slide from Hettich America Corporation is required, this 9047647 model aligns with that defined role.
