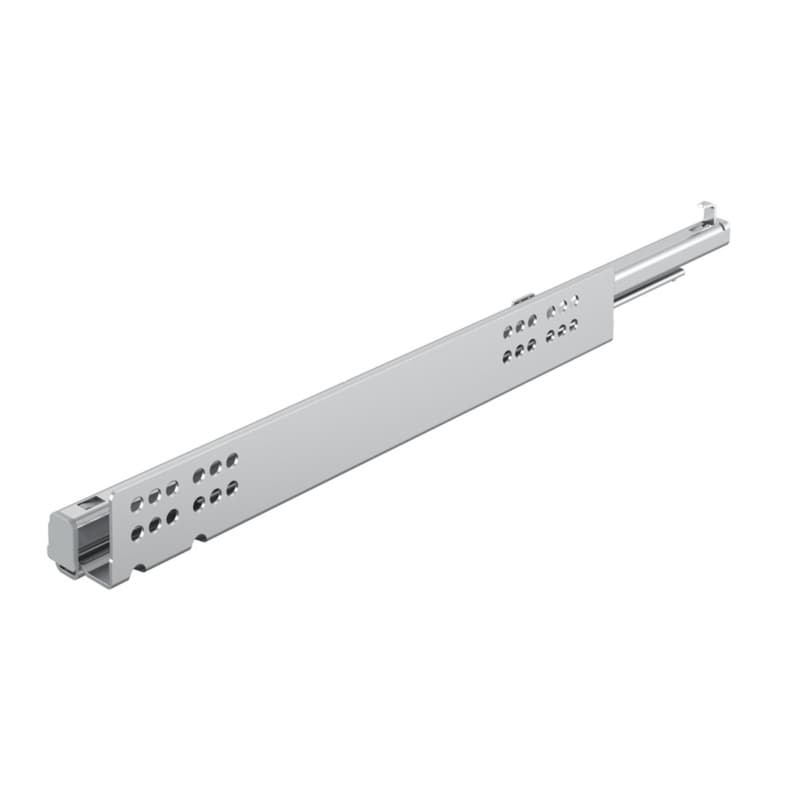

Hettich Quadro V6 300mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9047648

Hettich Quadro V6 300mm Drawer Slide Role

Hettich Quadro V6 300mm drawer slide defines a concealed undermount runner that supports full extension, so the drawer can be pulled out completely to expose the usable depth. This matters when access to the entire drawer load is required in a cabinet run without leaving dead space at the back. The soft-close action is provided by the integrated Silent System, which slows the closing stroke, reducing slamming impact on the drawer and cabinet. This helps maintain consistent alignment over repeated use because the drawer is not driven hard against the front. The runner is designed as an undermount slide, so it supports the drawer from below rather than the sides, keeping drawer sides clear for a cleaner interior. The ball bearing design supports smooth motion under load, helping drawers feel controlled along the full 300mm travel.

Key Slide Features That Support Cabinet Work

• The full extension function lets the drawer move its full 300mm length, so the rear of the drawer is reachable during everyday use and during installation checks or adjustments.
• The integrated Silent System provides a soft-close action, so the drawer closes gently and consistently, helping reduce noise and impact stress on the cabinet front and drawer joints.
• The slide on installation with catches allows the drawer to be connected to the runner by sliding the drawer into place, which can speed fitting when setting multiple similar cabinets.
• The tool-less height adjustment lets the installer change drawer front position vertically without tools, which simplifies fine alignment of fronts across a cabinet bank.
• The platform concept uses identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners, which supports consistent drilling patterns and repeatable layouts.
• The galvanised steel construction gives the runner a protective metallic finish, which helps the slide resist surface corrosion in typical interior cabinet environments.
• The runner is suitable for drawers with a side profile thickness of up to 16 mm, so drawer box material can be selected within that limit while maintaining proper interfacing with the slide.
• The load capacity is tested to EN 15338, Level 3, meaning the slide is rated under that standard, supporting confidence in its use for drawers within the intended load range.

Undermount Slide Fit And Adjustment Details

This Hettich undermount drawer slide is suitable for drawers with a side profile thickness of up to 16 mm, so drawer construction can use materials such as engineered panels within that thickness range while retaining proper fit to the runner geometry. The slide on installation with catches supports connecting the drawer to the runner by engaging the drawer onto the slide, which can streamline mounting in cabinet carcasses where access is from the front. Tool-less height adjustment is built into the system, so vertical positioning of the drawer front can be altered at the runner without tools, giving the installer practical control to align multiple drawer fronts. The 300mm length defines the nominal carcase depth that pairs with this runner, guiding cabinet design when planning drawer depths and clearances.

Using This Hettich 9047648 Slide In Projects

Where This 300mm Undermount Slide Fits Best

This Hettich Quadro V6 undermount slide is part of a platform concept that uses identical cabinet body, drawer, and front panel dimensions across Quadro partial and full extension runners for slide on installation, so layouts developed for one Quadro variant can be applied to others with matching dimensions. The 300mm full extension travel suits cabinet sections built for that depth, allowing drawers to open completely to their designed length. Because the runner is suitable for drawer side profile thickness up to 16 mm, it works with drawer boxes built from many common cabinet materials within that thickness range. The right hand specification defines this particular runner orientation, guiding its position within the cabinet when paired with a corresponding system element.

Why These Runner Details Support Repeatable Results

The tool-less height adjustment on this Quadro V6 runner lets the installer adjust drawer front height directly at the slide, so fine tuning gaps between fronts can be done without removing the drawer, reducing interruptions during installation. The integrated Silent System soft-close mechanism slows the final closing movement of the drawer, so the drawer front meets the cabinet front in a controlled way, which supports consistent reveals over time by limiting repeated high-impact closures. The full extension design allows drawers to travel the full 300mm, so the slide works through its entire bearing length, helping distribute operational forces along the runner. Testing to EN 15338, Level 3 means the slide undergoes performance assessment under that standard, giving a defined reference point for expected load handling in cabinet applications. The galvanised steel material provides a protective surface on the runner, which supports the functional life of the sliding elements in normal interior conditions.

Common Questions About This Quadro V6 Runner

Selecting This 300mm Quadro V6 For Your Job

The Hettich Quadro V6 300mm soft-close full extension undermount drawer slide in galvanised steel combines undermount support, integrated Silent System, and tool-less height adjustment, so it suits cabinet projects that need clean drawer sides, controlled closing, and practical front alignment. The platform concept with identical cabinet body, drawer, and front panel dimensions across Quadro partial and full extension runners supports consistent drilling and layout when planning a run of cabinets. For installations built around 300mm depth and drawer sides up to 16 mm, this right hand slide offers a defined, tested runner option ready for use in professional or serious DIY cabinet work.
