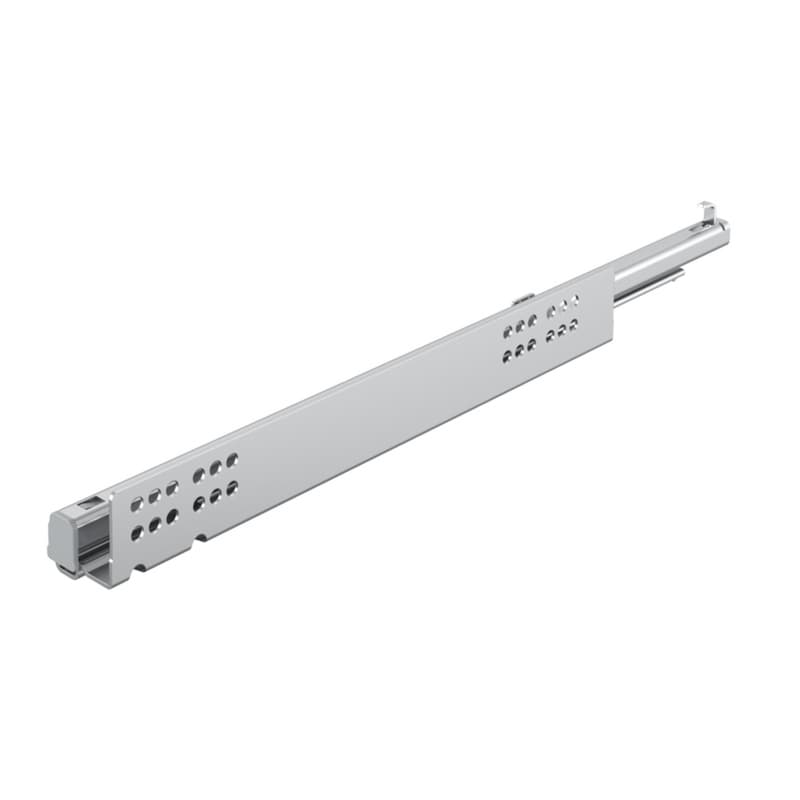

Hettich Quadro V6 520mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9047773

Hettich Quadro V6 520mm Drawer Slide Use

Hettich Quadro V6 520mm drawer slide describes a soft-close, full extension undermount drawer slide that supports smooth access to the full drawer length while keeping the slide concealed under the drawer. The right hand design identifies this runner as the right side component in a Quadro V6 undermount setup, which matters when matching parts by handing on the job. The integrated Silent System provides controlled, soft-closing action, which reduces impact at the end of travel and supports quieter operation in finished cabinetry. The slide on installation with latches means the drawer box connects to the runner using the slide-on interface and latch points, which can streamline drawer mounting during cabinet assembly. The load capacity to EN 15338, Level 3 indicates the runner is tested to that standard level, which provides a defined performance benchmark for service conditions.

Key Functional Details For Drawer Projects

• The full extension undermount design lets the drawer travel its full nominal length, which gives clear access to contents while keeping runners hidden beneath the drawer box for a clean cabinet appearance.
• The integrated Silent System provides soft-close damping at the end of travel, which helps drawers close in a controlled way and reduces slamming forces on the cabinet and front.
• Slide on installation with latches establishes a slide-on connection between drawer and runner, so the drawer engages the slide by sliding onto the hardware and securing it with latching points.
• The platform concept uses identical cabinet body, drawer and front panel dimensions for Quadro partial and full extension runners, which supports a single case and drawer geometry across different Quadro runner options.
• The runner is made of galvanised steel, which provides a steel slide construction with a galvanised finish for corrosion resistance in typical cabinet environments.

Undermount Slide Fit And Installation Details

This undermount drawer slide is suitable for drawers with a side profile thickness of up to 16 mm, which defines the maximum drawer side thickness when designing or selecting boxes to run on this slide. The slide on installation with latches establishes a mounting method where the drawer engages the runner by sliding onto the undermount hardware and securing to latching points, which can simplify drawer removal and reattachment during fitting or adjustment. Tool-less height adjustment allows the installer to adjust drawer height without tools, which helps align fronts vertically within the cabinet opening using the runner interface. The right hand designation defines the handing of this individual slide, which matters when pairing it with the corresponding left side runner in Quadro V6 undermount applications.

Using This Quadro V6 Slide In Projects

Where This Hettich Undermount Slide Fits

This Hettich America Corporation undermount drawer slide belongs to the Quadro V6 slide on platform concept, which means cabinet body, drawer and front panel dimensions match across Quadro partial and full extension runners for slide on installation. That shared geometry supports using the same cabinet and drawer design when choosing between partial extension and full extension Quadro runners in the same project line. The 520mm nominal length defines the drawer runner length in the depth direction, guiding carcass depth and drawer length planning around that measurement. Suitability for drawers with a side profile thickness of up to 16 mm ties directly to drawer box design, because the side thickness must remain within that limit for the runner to support the box correctly. The full extension function lets the drawer travel its full designed stroke, which helps in cabinets where access to the rear of the drawer space is required in normal use.

Why These Slide Details Support Consistent Results

The integrated Silent System feature provides soft-close damping built into the runner, which helps drawers close steadily and can reduce adjustment callbacks related to slamming or harsh closing behavior over time. Tool-less height adjustment offers vertical fine-tuning through the runner interface, which allows front panel reveals to be set visually without extra tools during final fit-out. The platform concept with identical cabinet body, drawer and front panel dimensions for Quadro partial and full extension runners helps standardize drilling and construction patterns, which can streamline production across different runner options in a product range. Load capacity to EN 15338, Level 3 confirms that this slide design is tested to that standard level, which provides a documented reference for performance expectations in furniture applications. The galvanised steel construction gives a steel runner with a galvanised finish, supporting surface protection in typical indoor cabinet conditions and contributing to the overall service life of the sliding system.

Common Questions About This Quadro V6 Slide

Selecting This Slide For Your Drawer Run

The Hettich Quadro V6 520mm drawer slide combines full extension, undermount placement, integrated Silent System and slide on installation with latches, which supports clean cabinet looks with soft-close function. Suitability for drawers with a side profile thickness of up to 16 mm connects directly to drawer box construction, guiding project planning. The platform concept with identical cabinet body, drawer and front panel dimensions across Quadro partial and full extension runners lets a single case design support different extension choices. Choosing this galvanised steel slide with load capacity to EN 15338, Level 3 aligns runner selection with defined performance and the Quadro V6 system layout.
