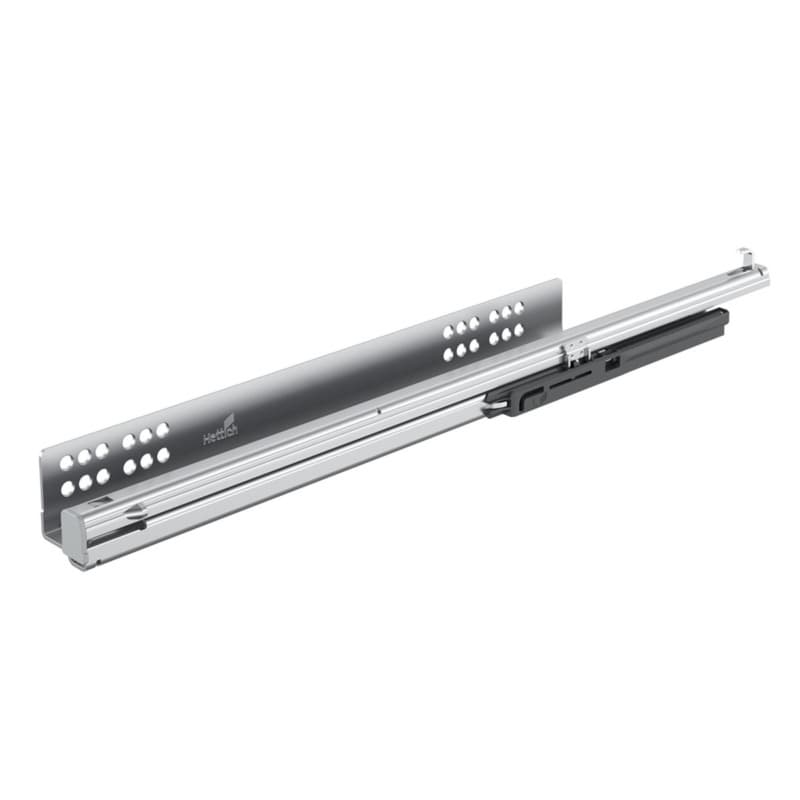

Hettich Quadro V6 520mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047772

Hettich Quadro V6 520mm Drawer Slide Use

Hettich Quadro V6 520mm drawer slide is a full extension undermount drawer runner that supports smooth drawer travel while keeping hardware concealed under the drawer. The left hand configuration with manufacturer part number 9047772 fits installations that require a dedicated left side runner for accurate motion control on that side of the cabinet opening.

The integrated Silent System provides a soft-close function that slows the drawer before it reaches the cabinet front, which helps prevent slamming and reduces impact on the drawer box and cabinet structure over repeated cycles. The platform concept matches cabinet body, drawer, and front panel dimensions across Quadro partial and full extension runners designed for slide on installation, so layouts using both runner types maintain the same basic carcass and front geometry during planning and shop work.

The galvanised steel construction resists corrosion in typical indoor woodworking environments, which supports consistent runner movement over time in kitchens, baths, or shop-fit projects where metal components are exposed inside carcasses.

Key Functional Details For Drawer Projects

• Slide on installation with latches lets the drawer engage the undermount runner without separate tools, which can speed fitting and help with repeatable alignment on multiple cabinet bays during production runs.
• Tool-less height adjustment at the runner interface allows small vertical corrections at the drawer front after installation, which helps bring front gaps into line when cabinets, floors, or carcasses have minor dimensional variation.
• The integrated Silent System soft-close function controls the final movement of the drawer, which improves user feel and reduces noise in residential or commercial spaces where repeated openings occur.
• Suitability for drawers with a side profile thickness of up to 16 mm defines the drawer side material range, which guides box construction so the undermount geometry and locking points interact correctly with the runner.
• The platform concept using identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners supports a standardized carcass design, which simplifies design work where different extension types are used in the same project.
• Load capacity to EN 15338, Level 3 indicates the runner has been evaluated to a defined furniture hardware standard, which provides a basis for selecting the slide in higher load or high-use applications aligned with that level.

Installation And Fit Details For Quadro V6

This Quadro V6 undermount runner uses a slide on installation approach, where the drawer is positioned onto the runner and secured with latches. That method sets up a consistent interface between the drawer box and the left hand 9047772 runner, which helps keep movement predictable across similar cabinets assembled on the same line.

The tool-less height adjustment built into the system lets the installer change drawer front position vertically after the drawer is already hanging on the runner, so fine-tuning reveals and aligning neighboring fronts can be done with the drawer in place. Side profile thickness suitability up to 16 mm defines how the drawer box needs to be built for the undermount engagement points to seat properly, affecting side material choice and machining.

Using The 9047772 Runner In Real Projects

Where This Quadro V6 Undermount Slide Fits

The Quadro V6 slide with Silent System in 520mm length is suited to drawer constructions using side profiles up to 16 mm thick, so cabinetmakers can pair it with common engineered wood or solid stock within that dimension for undermount assemblies. The full extension design allows the drawer to travel outward so the back of the box moves into clear reach, which is useful in kitchen, bath, or shop storage layouts where access to the rear of the drawer is important during daily use.

The platform concept, which keeps cabinet body, drawer, and front panel dimensions identical between Quadro partial and full extension runners for slide on installation, supports project lines that mix different extension types while staying on one drilling pattern and front sizing scheme. In that scenario, a shop can assign full extension Quadro V6 runners like this 9047772 unit to priority drawers while using compatible partial extension runners elsewhere, without changing the base cabinet geometry.

The EN 15338 Level 3 load capacity rating gives a standardized reference for the mechanical performance of the runner, guiding its use in furniture or built-ins that see frequent operation or carry higher stored loads within the scope of that level. The galvanised steel material supports this use by offering a durable runner body in normal indoor environments typical of cabinetry and woodworking installations, which helps maintain slide function over extended service.

Details That Support Repeatable Mounting Results

The slide on installation with latches sets a defined position when the drawer engages the Quadro V6 undermount, which can reduce set-up time when running identical cabinets through a shop process because drawers locate on the runner using the same engagement points. That consistent interface helps maintain parallelism of movement between the left hand 9047772 runner and its counterpart on the opposite side when used as part of a drawer system.

The tool-less height adjustment feature lets small vertical changes be made at the drawer front without removing fasteners, which streamlines the final alignment stage when fitting a bank of fronts across a tall cabinet or long run. For builders handling multiple units, this reduces disruption during punch-out stages because the drawer remains supported on the runners while front reveals are dialed in.

The suitability for side profile thickness up to 16 mm informs the cutting and machining of drawer components from the design phase, leading to drawer boxes that match the undermount engagement geometry and sit properly on the Quadro V6 runners. The integrated Silent System further supports repeatable results by damping the closing motion in the same way each time, which contributes to a uniform user experience across all drawers outfitted with this soft-close full extension undermount slide.

Common Questions About This Quadro V6 Slide

Selecting This Slide For Your Next Build

The Hettich Quadro V6 520mm drawer slide with integrated Silent System brings full extension, soft-close performance to undermount drawer projects while staying concealed beneath the box. The left hand 9047772 runner, built from galvanised steel, aligns with EN 15338 Level 3 load capacity, giving a defined performance reference for demanding cabinetry or furniture use. By supporting drawers with side profile thickness up to 16 mm and using slide on installation with tool-less height adjustment, this Quadro V6 option fits workflows where consistent geometry, fine front alignment, and controlled closing behavior are priorities for installers and shop builders.
