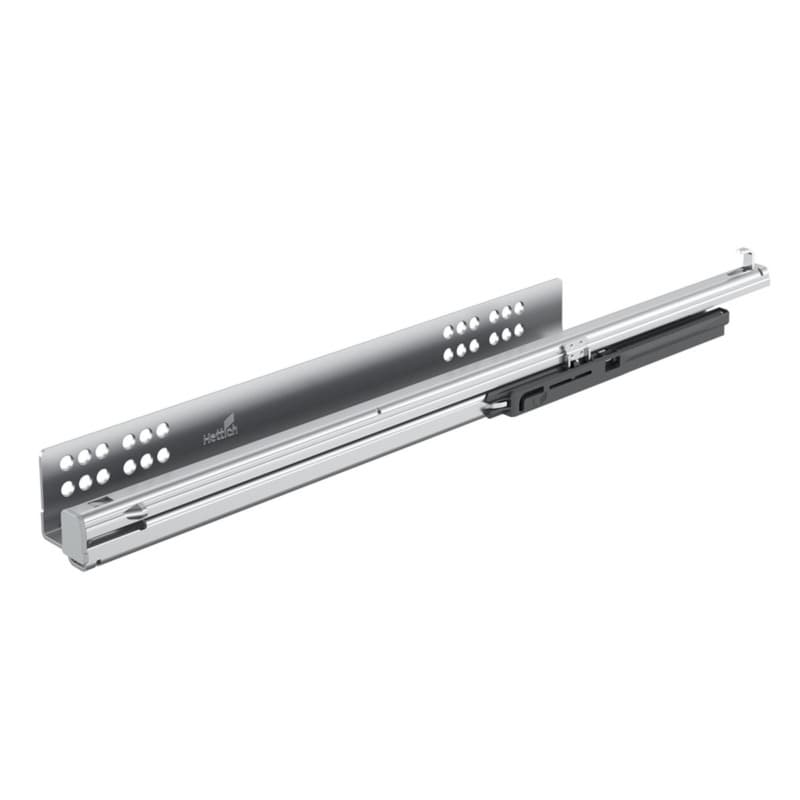

Hettich Quadro V6 350mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047662

Hettich Quadro V6 350mm Drawer Slide Use

Hettich Quadro V6 350mm drawer slide is a soft-close full extension undermount runner that supports smooth drawer travel and controlled closing, which helps drawers run quietly and reach full access without exposing visible side hardware in finished cabinetry.

This slide is designed as a left hand unit, guiding the drawer accurately on the left side so the overall system tracks square when paired with its matching right hand counterpart in cabinet installations.

The runner uses ball bearing technology, which supports even movement along the entire 350mm extension length, so drawers feel consistent from light access to fully loaded operation.

The integrated Silent System forms the soft-close function, slowing the drawer near the end of travel so fronts settle gently against the cabinet, which is useful where reduced noise and controlled closing improve everyday use in living or work spaces.

As an undermount slide, it fits beneath the drawer box rather than on the side, which keeps drawer sides clear and suits modern cabinetry layouts where a clean look and consistent clearances are important.

Key Functional Details For Cabinet Projects

• The full extension design lets the 350mm drawer slide travel its usable length, helping installers deliver access to the full drawer depth so stored items at the back remain reachable during normal use.
• Integrated Silent System provides the soft-close action inside the slide body, so there is no separate closer device to coordinate, which simplifies planning when specifying quiet drawers across multiple cabinets.
• Slide on installation with catches supports a slide-on mounting method between drawer and runner, which streamlines fitting because the drawer can be connected to the undermount slide using the designed catching interface.
• Tool-less height adjustment enables vertical fine-tuning of the drawer front without tools, so installers can align fronts across a run of cabinets and correct small height offsets after the drawer is mounted.
• The undermount design suits drawers with a side profile thickness of up to 16 mm, giving a clear limit for drawer side construction so cabinetmakers can size sides to work within the slide geometry.
• The platform concept keeps cabinet body, drawer, and front dimensions identical between Quadro partial and full extension runners for slide on installation, allowing one carcass and drawer layout to accept either runner style.

Installation, Slide On Connection, And Adjustment

This Hettich Quadro V6 slide uses a slide on installation method with catches, so the drawer connects onto the undermount runner through a defined sliding and latching motion, which helps speed up assembly runs in the shop or on site.

Tool-less height adjustment built into the system means the vertical position of the drawer front can be changed after mounting without separate tools, which is helpful for dialing in front reveals where cabinet runs need tight vertical alignment.

The runner is suitable for drawers with a side profile thickness of up to 16 mm, guiding drawer box construction toward that side thickness so the undermount engagement points align properly along the drawer bottom and sides during fitting.

With a nominal length of 350mm, the slide pairs naturally with drawer depths around that length, supporting proportionate extension so the full extension action matches typical cabinet depths in smaller or mid-depth furniture pieces.

How This Undermount Slide Works In Practice

Using The 350mm Undermount Slide In Cabinets

This Hettich Quadro V6 350mm soft-close full extension undermount drawer slide is suited to drawer boxes where the clear depth aligns with the 350mm runner length, so the slide can support full travel without overextending the drawer beyond its design.

The product is part of Hettich America Corporation's Quadro V6 platform, which means cabinet bodies and drawer fronts can share the same dimensions between partial and full extension Quadro runners for slide on installation, helping shops standardize one set of drilling and cutting dimensions.

Because the slide is specified for drawers with a side profile thickness of up to 16 mm, it supports common engineered board or solid wood drawer sides sized within that limit, allowing consistent undermount engagement points on a variety of materials and constructions.

The undermount style positions the runner beneath the drawer, so side-clearance is driven mainly by the slide geometry under the box rather than large side-mounted profiles, which can be helpful when planning narrow gaps between drawers.

Its full extension action lets the drawer move out over its 350mm working length, which aids access to storage at the back of the drawer, particularly in kitchen, bathroom, or office cabinetry where full reach improves everyday workflow.

The left hand designation establishes that this runner is designed to operate on the left side of the drawer system, guiding one side while the right hand partner carries the opposite side, which supports smooth, racked-resistant operation when both are installed correctly.

Details That Support Repeatable Drawer Results

The integrated Silent System soft-close feature moderates closing speed as the drawer returns, so fronts settle gently into the cabinet, which reduces slamming forces on fronts and carcasses during repeated use.

Ball bearing operation inside the runner guides the drawer along the slide path, distributing movement along the bearing races so motion remains even through the entire extension and retraction cycle.

Slide on installation with catches defines a repeatable connection between drawer and runner, which supports consistent positioning from drawer to drawer when the same drilling and mounting pattern is followed in a production setting.

Tool-less height adjustment gives installers the ability to shift drawer fronts vertically without removing the slide, supporting quick corrections to front alignment across stacked drawers or adjacent units in built-in cabinetry.

The platform concept around identical cabinet body, drawer, and front panel dimensions across Quadro partial and full extension runners for slide on installation allows a single cabinet design to accept either runner style, which can simplify stocking and design changes.

Galvanised steel construction provides a zinc-coated steel runner body, which offers a robust metal track for the bearings and mechanisms while giving a surface treatment suited to typical indoor cabinet environments where steel slides are commonly used.

Load capacity to EN 15338, Level 3 ties the slide's performance to a recognized drawer runner standard, indicating that the product has been rated according to that EN level so designers can select it with a defined performance reference.

Common Questions About This Hettich Drawer Slide

Selecting This Quadro V6 Slide For Your Job

The Hettich Quadro V6 350mm soft-close full extension undermount drawer slide, in a left hand configuration, combines ball bearing movement, slide on installation, and tool-less height adjustment to support efficient drawer construction and alignment in cabinet projects.

Its suitability for drawer sides up to 16 mm, platform concept dimensions across Quadro runners, galvanised steel construction, and EN 15338 Level 3 load capacity give designers and installers defined parameters when specifying runners.

For projects using Hettich America Corporation undermount hardware, this 9047662 Quadro V6 slide provides a clearly defined 350mm, left side option ready to integrate into coordinated drawer systems.
