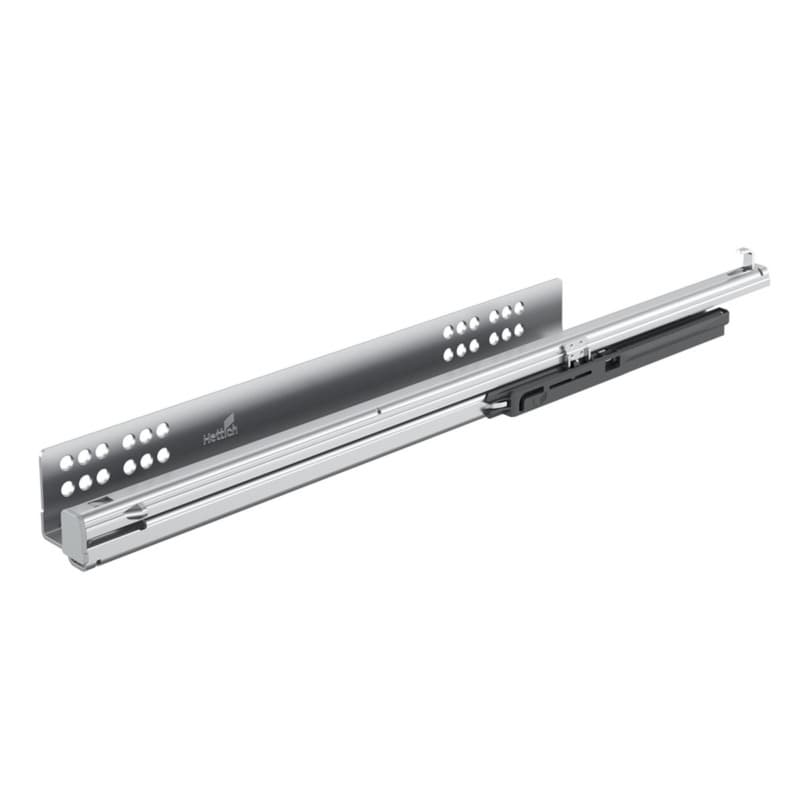

Hettich Quadro V6 280mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047564

Hettich Quadro V6 Drawer Slide For 280mm Drawers

Hettich Quadro V6 drawer slide is a full extension undermount drawer runner designed for 280mm drawer depths, so the drawer can travel its complete length and expose stored items clearly during use. The soft-close function is provided by the integrated Silent System, which slows the drawer at the end of travel to help prevent slamming in everyday operation. This Quadro V6 model is specified as left hand, so it is used on the left side of the undermount slide set during installation. The slide is suitable for drawers with a side profile thickness of up to 16 mm, so standard thin drawer box sides can be used without extra build-up. The slide on installation design with catches allows the drawer to be connected directly to the runner, supporting efficient assembly on site or in the shop.

Key Quadro V6 Details That Help On The Job

• The full extension undermount design allows the 280mm drawer to open its complete travel, which improves access to the cabinet interior during daily use and layout work.
• The integrated Silent System soft-close mechanism controls closing speed, which helps reduce impact stresses on the drawer box and front over repeated cycles.
• The slide on installation with catches provides a defined connection method between drawer and runner, supporting repeatable mounting steps in production or retrofit projects.
• The runner is suitable for drawer side profile thicknesses up to 16 mm, which aligns well with common modern drawer box constructions using relatively thin material.
• The galvanised steel construction provides a metal runner body, which supports a rigid guiding track for the drawer along the full extension length.
• The platform concept allows identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners, simplifying planning when mixing these runners in one project.

Undermount Slide Installation And Adjustment Benefits

The slide on installation design means the Quadro V6 runner connects to the drawer using dedicated catches, so once the cabinet member is positioned, the drawer can be mounted with a defined engagement motion. This helps keep installation steps consistent from drawer to drawer. Tool-less height adjustment is integrated into the slide on system, so vertical position of the drawer front relative to the cabinet can be altered without separate tools, which aids fine front alignment at the end of installation. The undermount configuration places the runner beneath the drawer box, which keeps the guiding hardware out of the drawer sides and supports a clean interior appearance while still providing full extension.

Using This Hettich 9047564 Slide In Real Projects

Where The 280mm Quadro V6 Runner Fits Best

The Hettich Quadro V6 280mm full extension undermount slide is suited to drawer boxes built for 280mm runner length, so cabinet depths can be planned around this travel distance in kitchens, baths, or furniture projects. Because the runner is suitable for drawer side profiles up to 16 mm, it works with slim drawer constructions that keep weight down while still engaging the undermount hardware correctly. The platform concept of identical cabinet body, drawer, and front panel dimensions across Quadro partial and full extension runners for slide on installation allows a project to combine different extension types while using one set of case and front drilling dimensions. This reduces layout variation when some drawers need full extension travel and others can use partial extension in the same cabinet run.

Why Quadro V6 Design Supports Repeatable Results

The designation Hettich 9047564 identifies the left hand version of this Quadro V6 slide, so installers can pair it with the corresponding right hand runner when building an undermount set and keep orientation consistent. The integrated Silent System soft-close function is built into the runner, so there is no separate soft-close device to coordinate, which simplifies the hardware mix on a job and supports uniform closing behavior across drawers. Load capacity to EN 15338, Level 3 means the slide has been rated according to a European drawer runner standard at that level, giving the installer a defined performance category when choosing runners for drawers that will see regular use. The galvanised steel material used for the runner body provides a formed metal track that maintains guiding geometry over the full extension length, which is important when drawers are opened and closed repeatedly in a busy environment.

Common Questions About This Quadro V6 Slide

Selecting This Quadro V6 Slide For Your Next Job

The Hettich Quadro V6 280mm soft-close full extension undermount slide combines slide on installation, integrated Silent System, and tool-less height adjustment, so it supports efficient setup and finished front alignment. The platform concept with identical cabinet body, drawer, and front panel dimensions across related Quadro runners also streamlines case design when specifying multiple runner types. For projects using drawer sides up to 16 mm in thickness and needing 280mm travel, this left hand galvanised steel runner provides a defined option by part number 9047564.
