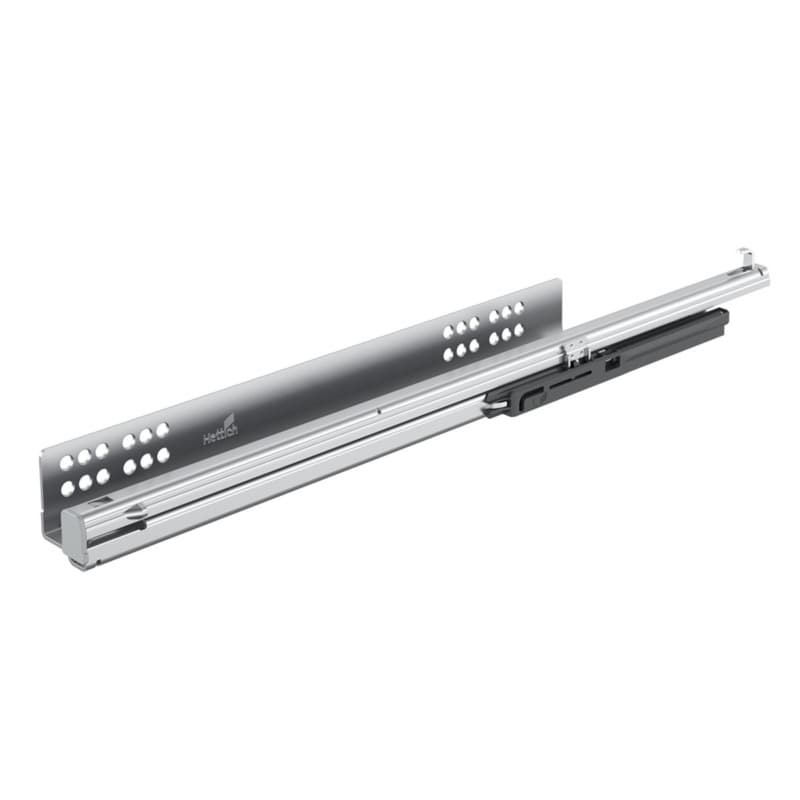

Hettich Quadro V6 400mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047735

Hettich Quadro V6 400mm Drawer Slide Use

Hettich Quadro V6 400mm drawer slide is a full extension undermount drawer slide that carries the drawer from beneath, so the slide stays concealed while providing the complete opening length of the 400 mm runner. The left hand design with manufacturer part 9047735 defines the handed installation side, which matters when matching it with the corresponding right hand runner in a cabinet set. The ball bearing construction supports the movement inside the undermount system, which helps keep the slide running consistently under repeated openings in a cabinet application. The load capacity is tested to EN 15338, Level 3, which defines a performance level for furniture runners and gives a predictable load range for typical drawer storage in furniture or cabinetry. The galvanised steel material forms the slide structure, which provides a rigid metal base for the undermount mechanism in everyday residential or commercial drawer use.

Key Quadro V6 Details That Support Jobs

• The soft-close function is provided by the Integrated Silent System, which slows the last part of the closing stroke so the drawer closes gently and helps reduce impact on the cabinet and drawer front over time.
• The full extension design allows the drawer to travel the full working length of the 400 mm slide, which opens the drawer contents to the front of the cabinet and aids access during everyday use or service work.
• The slide-on installation with latches forms a connection method between drawer and runner, which lets the installer engage the drawer to the slide without separate tools at that interface and speeds repeat cabinet assembly.
• The tool-less height adjustment is built into the system, which lets the installer change drawer front height using the integrated adjustment feature and fine-tune front alignment across a bank of drawers.
• The platform concept uses identical cabinet body, drawer, and front panel dimensions for Quadro partial and full extension runners for slide-on installation, which allows the same basic cabinet and drawer layout across these runner versions.
• The runner is suitable for drawers with a side profile thickness of up to 16 mm, which defines the maximum drawer side thickness and guides material choice when building or ordering the drawer box.

Undermount Slide Fit And Installation Details

The slide-on installation with latches describes how the Hettich Quadro V6 runner connects to the drawer, which means the drawer hooks onto the undermount slide using the designed latch points for a defined attachment geometry. The tool-less height adjustment is part of this installation arrangement, which lets the installer raise or lower the drawer front using the slide system so the front lines up with adjacent fronts in a run of cabinets. The product is specified as an undermount drawer slide, which positions the runner under the drawer box and supports the drawer from below, leaving the drawer sides free for a clean interior appearance in cabinetry. The 400 mm length forms the nominal runner length, which corresponds to drawer depth planning so the cabinet body and drawer depth can be designed around this standard metric size.

Using This Quadro V6 Slide In Cabinet Work

Where This 400mm Undermount Slide Fits Best

This Hettich Quadro V6 soft-close full extension undermount drawer slide is part of the product class identified as undermount drawer slides, which places it in applications where the slide is concealed beneath the drawer in kitchen, bath, or furniture cabinetry using undermount runners. The web description notes suitability for drawers with a side profile thickness of up to 16 mm, which fits many European-style drawer constructions that use relatively thin drawer sides and supports planning for metric panel thicknesses. The platform concept uses identical cabinet body, drawer, and front panel dimension for Quadro partial and full extension runners for slide-on installation, which allows a cabinet program to use the same cabinet drilling and drawer front layout while choosing between partial-extension and full-extension versions. The optional catch and plug for pull-out shelves and optional pull-out shelf locating catch are listed as features in the system, which indicates the runner range can serve both drawer and pull-out shelf applications in furniture projects that use these options.

Why These Quadro V6 Details Improve Results

The Integrated Silent System provides the soft-close action within the Quadro V6 runner, which cushions the closing movement so drawers close in a controlled way and helps reduce slamming forces that could shift front alignment over many closing cycles. The full extension function works with the undermount format to bring the drawer fully out on the 400 mm slide, which exposes stored items at the front edge and eases access in deeper cabinets where partial extension would hide contents at the back. The ball bearing description in the product name reflects the internal guidance method, which supports smooth travel of the undermount carriage and helps keep running performance stable over the service life defined by EN 15338 Level 3 testing. The galvanised steel construction ties to the durability of the runner body, which keeps the slide geometry stable when loaded to the standard and supports consistent clearances between drawer and cabinet. The left hand identification combined with the manufacturer part number 9047735 gives an exact reference for the runner side, which simplifies specifying the correct piece in drawings or part lists when coordinating cabinet manufacturing or replacement ordering.

Common Questions About This Quadro V6 Slide

Selecting This Quadro V6 Slide For Your Project

The Hettich Quadro V6 soft-close full extension undermount drawer slide in 400 mm length combines slide-on installation with latches, tool-less height adjustment, and the Integrated Silent System, which together streamline drawer fitting while providing controlled closing motion. The runner is suitable for drawers with a side profile thickness of up to 16 mm, which frames drawer box design around common metric materials. With an EN 15338 Level 3 load capacity and galvanised steel construction, this Hettich 9047735 left hand slide offers a defined performance level for undermount drawer projects that use the Quadro platform concept in cabinet and furniture work.
