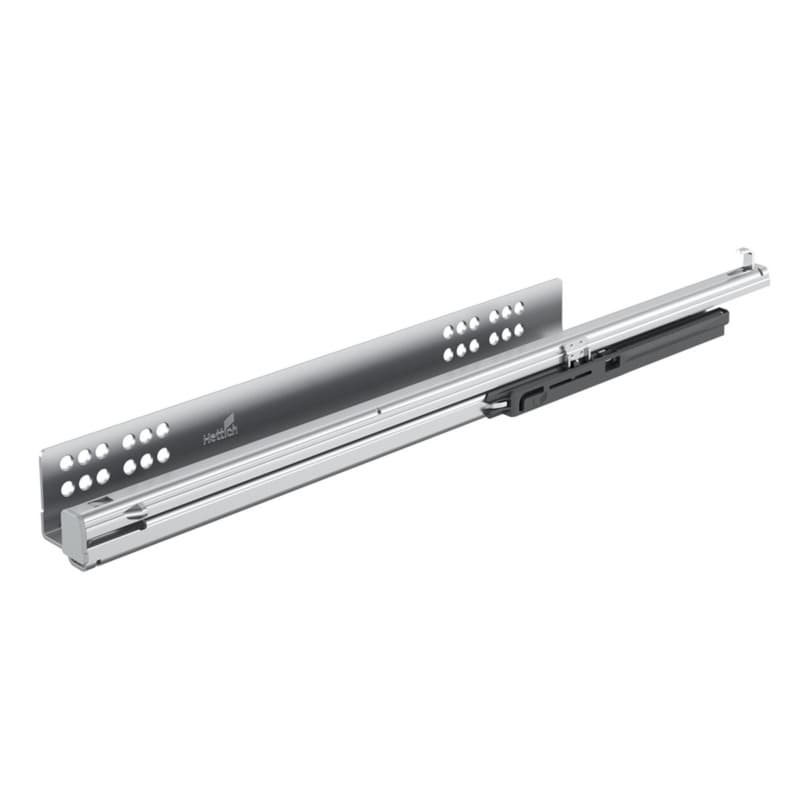

Hettich Quadro V6 600mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9047625

Hettich Quadro V6 600mm Drawer Slide Use

Hettich Quadro V6 600mm drawer slide is a full extension undermount drawer slide that lets the drawer travel the entire runner length, which helps access the full drawer depth during everyday use. The slide on installation with catches allows the drawer to be connected to the runner in one motion, which supports straightforward mounting on site. Tool-less height adjustment built into the system lets the installer shift the drawer front vertically without tools, which helps align fronts accurately across a bank of drawers. The integrated Silent System provides a soft-close function that slows the drawer travel, which reduces slamming and helps drawers settle smoothly in normal cabinet use. The runner is suitable for drawers with a side profile thickness of up to 16 mm, which defines the drawer material layout during construction. The galvanised steel construction forms the structural body of the runner, which supports its role as a load-bearing undermount slide.

Key Quadro V6 Undermount Slide Advantages

• The full extension undermount design lets the drawer open along the complete 600 mm slide length, which helps reach items stored at the back without shifting contents.
• Slide on installation with catches allows the drawer to engage with the runner quickly, which supports efficient assembly when fitting multiple drawers in one cabinet run.
• Tool-less height adjustment built into the slide enables vertical tuning of the drawer front, which helps create even reveal lines across adjacent fronts without disassembling the drawer box.
• The integrated Silent System soft-close function moderates closing speed, which helps drawers close quietly and reduces impact on the cabinet structure over repeated use.
• Suitability for drawers with side profile thickness of up to 16 mm defines the usable drawer side material range, which supports consistent construction details across a project.
• Compliance with load capacity to EN 15338, Level 3 links the runner to a defined performance standard, which helps plan drawer loading within that tested range.

Installation And Adjustment For Quadro V6 Slides

The slide on installation with catches lets the installer mount the cabinet member first and then engage the drawer in a sliding action, which streamlines workflow when setting up several units. Tool-less height adjustment on the Quadro V6 runner gives access to vertical front movement directly on the installed drawer, which helps correct small reveal variations without removing components. The platform concept with identical cabinet body, drawer and front panel dimensions for Quadro partial and full extension runners for slide on installation allows the same basic carcass and drawer sizing to serve different runner types, which simplifies layout work when mixing partial and full extension in one design. The 600 mm runner length defines the nominal cabinet depth required for this slide, which guides cabinet planning when choosing drawer depths in a project.

Using This 600mm Left Hand Undermount Runner

Left Hand Runner For Undermount Drawer Systems

The Hettich America Corporation Quadro V6 slide with manufacturer part 9047625 is defined as a left hand runner, which identifies its position on the left side of an undermount drawer system. Being part of the Quadro V6 platform concept with identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation links this runner to a coordinated range, which helps maintain consistent drilling patterns and front sizes when specifying other Quadro V6 variants. The category definition as an undermount drawer slide places the runner beneath the drawer box, which leaves the drawer sides exposed for a cleaner interior appearance in finished cabinetry.

Details That Support Alignment And Drawer Performance

The integrated Silent System on this Quadro V6 undermount slide introduces a controlled damping action during closing, which helps drawers run in smoothly and is beneficial in frequently used cabinet zones. Tool-less height adjustment designed into the runner makes front alignment an on-site adjustment task, which supports tight reveal control even after carcasses are fixed. Suitability for drawers with a side profile thickness of up to 16 mm links the runner geometry to specific drawer side constructions, which helps builders choose side materials and thicknesses that match the runner design. The full extension function uses the 600 mm undermount mechanism to project the drawer fully from the cabinet, which improves access to stored contents at the rear of deeper drawers. The galvanised steel material used for the runner structure provides a metal sliding base, which supports long-term mechanical movement in standard cabinet environments.

Common Questions About Quadro V6 600mm Slide

Selecting This Quadro V6 Runner For Projects

The Hettich Quadro V6 600mm drawer slide with integrated Silent System, full extension undermount function and slide on installation targets projects needing smooth access and soft-close behavior. Suitability for drawers with a side profile thickness of up to 16 mm and the platform concept with identical cabinet body, drawer and front panel dimensions for Quadro partial and full extension runners for slide on installation support consistent cabinet design using one set of core dimensions. The galvanised steel construction and EN 15338, Level 3 load capacity give a defined technical basis, which helps plan drawer configurations when specifying hardware through Wurth Baer Supply.
