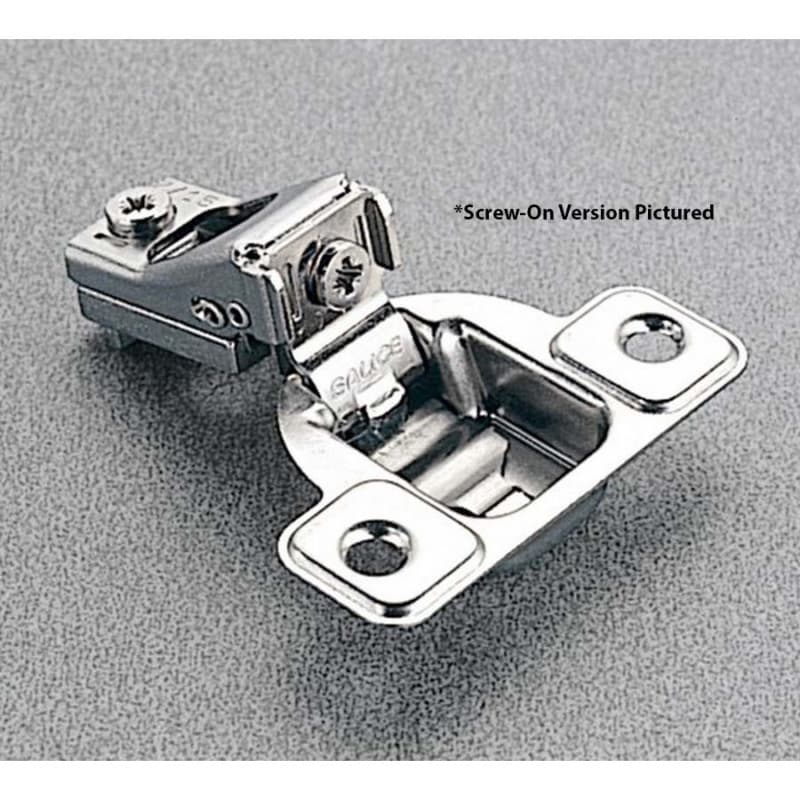

Salice Excentra S face frame hinge is a concealed cabinet hinge designed for 1/4 inch overlay doors on face frame cabinets, so it supports clean lines while keeping the hinge out of sight. This Salice Excentra S face frame hinge is self-closing, so it pulls the door shut at the end of travel and helps doors sit consistently in the closed position on completed runs. The hinge provides a 106 degree opening angle, which gives ample access into the cabinet while keeping the door clear of adjacent faces in typical face frame layouts. A cup depth of only 11 mm lets this hinge work on most door styles that have limited material for boring. The hinge is designed to work with cabinet doors up to 3/4 inch thick, which covers standard residential and many light commercial cabinet doors.
This hinge uses a screw-on mounting method, so it fastens directly to the face frame and door with screws during installation. As a concealed cabinet hinge in the Excentra series, it is set up for precise position changes using its 2 cam adjustable system, which means installers can dial in depth and lateral settings without remounting. The self-closing design works with the 106 degree opening angle to move the door smoothly into the frame and then bring it closed, useful when many doors are mounted in line on a project. The hinge is designed to work with Salice Type U soft-close devices, so projects that use those dampers can pair them with this hinge.
Salice Series S face frame hinges provide perfect closing to any kind of door in face frame cabinet construction, so they suit a wide range of cabinet projects using this frame style. The hinge is designed to work with cabinet doors up to 3/4 inch thick, so it supports common kitchen, bath, and built-in cabinet door thicknesses without special machining. A cup depth of only 11 mm allows this hinge to be used on most door styles, which helps when door designs or panel details limit available material for the cup bore. The hinge cup edge drilling distance is 2.5 mm, giving a clear boring reference that supports consistent cup placement in shop or jobsite setups. Excentra hinges with overlays of 1/2 inch and greater have zero door protrusion, so in those overlay applications the open door does not project into the cabinet interior, improving access for storage.
This 2 cam adjustable hinge provides the best side to side adjustment in the industry to ensure butt door problems are resolved, which helps installers quickly correct doors that meet on a face frame without rehanging. Cam depth adjustment from plus 2.8 mm to minus 0.5 mm, cam lateral adjustment from plus 3.0 mm to minus 2 mm, and slotted screw hole height adjustment of plus or minus 2 mm give three-way fine tuning, so reveals and alignment can be set after the hinge is mounted. All steel one piece construction with nickel plating resists corrosion, supporting long service life in normal cabinet environments. All hinges are self-closing design, which helps doors return to shut without additional catches. Excentra face frame hinges are designed to work with Salice Type U soft-close devices, so projects using those devices can add soft closing while keeping this hinge as the main pivot. The hinge provides a 106 degree opening angle that balances wide access with controlled swing on face frame cabinets.
The Salice Excentra S face frame hinge is designed for face frame cabinets, so it mounts to a frame and works with overlay doors in that construction style.
The hinge is designed to work with cabinet doors up to 3/4 inch thick, so it matches standard door construction without special adjustments.
The hinge provides a 106 degree opening angle, giving good interior access while keeping movement controlled on face frame cabinets.
The hinge offers cam depth, cam lateral, and slotted screw hole height adjustments, so door position can be tuned in and out, side to side, and up or down.
The 11 mm cup depth allows the hinge to be used on most door styles, which helps when thinner profiles or panel details limit boring depth.
The Excentra face frame hinge is designed to work with Salice Type U soft-close devices, so soft-closing can be added using those components.
The Salice Excentra S face frame hinge with 1/4 inch overlay, 106 degree opening angle, and 2 cam adjustment system offers controlled door motion and precise alignment on face frame cabinets. Its self-closing action, 11 mm cup depth, and ability to work with doors up to 3/4 inch thick support typical cabinet construction. All steel one piece construction with nickel plating resists corrosion, adding confidence when specifying this hinge across multiple jobs. For projects using Salice Type U soft-close devices, this hinge is designed to work with those components for a coordinated hardware setup.
Sold In: 1 Each
