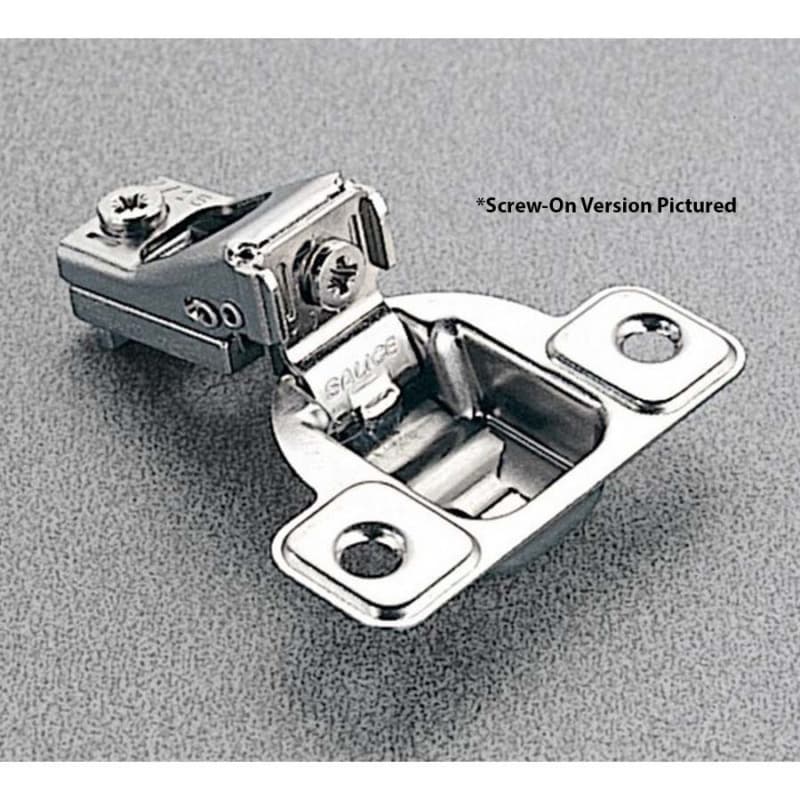

Salice Excentra S 2 cam self-close hinge is a concealed face frame hinge designed for 5/16 inch overlay doors, so cabinet doors cover the frame edge consistently on face frame constructions. This hinge opens to 106 degrees, allowing wide door swing for everyday cabinet access while keeping the hardware hidden when the door is closed. It belongs to Salice Series S face frame hinges, which are built for precise closing on many cabinet door styles. The hinge uses a dowel mounting style for the cup, giving a positive, repeatable seating in the door. As a self-closing hinge, it pulls the door shut at the end of travel, helping doors stay closed in regular kitchen or shop use. The nickel finish provides a clean, neutral appearance that blends with typical cabinet interiors.
The Salice face frame concealed hinge is specified for a 5/16 inch overlay, so it is targeted to cabinets where the door overlaps the face frame by that amount. Hinge cup edge drilling distance is 2.5 mm, giving a defined boring position for repeatable door production. Cam depth adjustment from plus 2.8 mm to minus 0.5 mm lets the door move in and out over the frame, helping align reveals along a run. Cam lateral adjustment from plus 3.0 mm to minus 2 mm shifts the door side to side, helping correct butt door rubbing. Slotted screw hole height adjustment of plus or minus 2 mm moves the door up or down, fine-tuning top and bottom reveals on the cabinet.
Salice CSR3Z99 5/16 overlay hinge is a concealed cabinet hinge built for face frame construction, so it suits kitchens, baths, and built-ins using traditional frames. The hinge is designed to work with cabinet doors up to 3/4 inch thick, allowing use on common solid wood and composite door builds. As part of the Salice Excentra line of concealed face frame hinges, it fits projects that call for hidden hardware rather than surface-mounted hinges. The 106 degree opening angle offers enough swing for most base and wall cabinets, so doors open comfortably without requiring a wider angle hinge in typical layouts. Self-closing design helps doors rest firmly against the frame, useful on frequently used cabinets where consistent latching feel is preferred.
The 2-cam adjustable cabinet hinge provides depth and lateral adjustments, so fine-tuning happens at the hinge rather than re-drilling doors. Cam depth adjustment from plus 2.8 mm to minus 0.5 mm lets installers correct doors that sit too proud or too deep relative to the face frame. Cam lateral adjustment from plus 3.0 mm to minus 2 mm addresses small side-to-side misalignments, which is especially helpful on butt doors sharing a vertical frame stile. Slotted screw hole height adjustment of plus or minus 2 mm lets the hinge shift vertically, tightening up uneven top lines along a bank of doors. Hinge cup edge drilling distance of 2.5 mm pairs with the 11 mm cup depth to create a predictable boring layout. All steel one piece construction with nickel plating supports stable adjustment over time in normal cabinet service.
The hinge is designed to work with cabinet doors up to 3/4 inch thick, so it fits many standard kitchen and bath door builds.
The Salice Excentra S hinge is designed for a 5/16 inch overlay on face frame cabinets, setting the intended door-to-frame coverage.
The hinge opens to 106 degrees, providing a wide swing suitable for everyday access in most cabinet installations.
The two cams provide depth and lateral adjustments, so doors can be shifted in and out or side to side to correct reveals.
The hinge has a cup depth of 11 mm, allowing installation on most door styles without excessive material removal.
The hinge is designed to work with Salice Type U soft-close devices, so soft-closing action can be added on compatible cabinets.
Salice Series S face frame hinge CSR3Z99 pairs a 5/16 inch overlay with 106 degree opening, giving a clear fit target for face frame cabinet runs. The self-closing action and steel, nickel-plated one piece construction support dependable everyday cabinet use. The 2-cam adjustable design with depth, lateral, and height ranges helps align doors without changing bores, which is valuable on multi-door installations. For projects using doors up to 3/4 inch thick where concealed hardware and precise alignment matter, this Salice Excentra hinge offers a focused solution for face frame construction.
