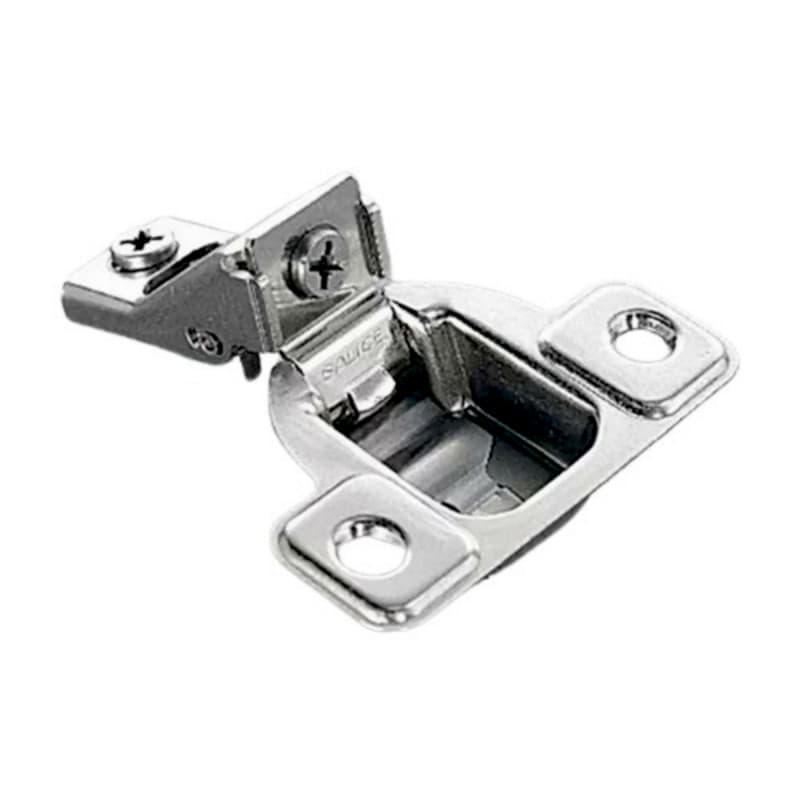

Salice Excentra S 2 cam self-close hinge is a concealed face frame hinge that closes cabinet doors smoothly while keeping hardware hidden, which helps finished face-frame work look clean on completed jobs. This hinge belongs to the Salice Series S face frame range, so it is built specifically for face-frame cabinet construction in woodworking projects. A 5/8 inch overlay design matches layouts where doors overlay the frame by that amount, which helps maintain consistent reveals across a run of cabinets. The hinge opens to 106 degrees, giving good access into the cabinet while still controlling door travel in typical residential and commercial layouts. A screw-on mounting style fastens the hinge securely to the cabinet components, which supports repeatable placement when installing multiple doors in the same run.
The Salice face frame hinge CSP3599 uses a hinge cup edge drilling distance of 2.5 mm, which gives a clear reference for boring jig or CNC programs so the cup lands correctly relative to the door edge. The hinge is designed for cabinet doors up to 3/4 inch thick, which matches common stocked door thicknesses used in kitchen, bath, and casework, reducing the need for special hinges on standard doors. Excentra hinges with overlays of 1/2 inch and greater provide zero door protrusion, which allows doors to open without projecting into the cabinet opening, helping storage items slide in and out without catching the door edge. All hinges in this line use a self-closing design, so doors pull themselves shut at the end of travel, which is useful in busy shops and end-user settings where consistent closing is expected.
This Salice Series S face frame hinge is intended for face-frame cabinetry, so it fits kitchen, bath, and general casework built with frame-front construction. A 5/8 inch overlay rating matches layouts where the door overlays the frame by that amount, which is common in many framed kitchen lines. With the hinge designed for doors up to 3/4 inch thick, it suits standard panel and five-piece doors used across residential and light commercial work. Excentra hinges with overlays of 1/2 inch and greater provide zero door protrusion, which keeps the door edge from intruding into the opening at full swing and helps maintain clear access for pullouts or shelving. The 106 degree opening angle supports normal cabinet access while controlling how far doors project into walkways, which can matter in tight runs or galley spaces.
The 2-cam adjustable hinge design gives installers depth and lateral adjustment on cams, so fine tuning can be done with simple cam turns instead of moving mounting points, which saves rework time on site. Cam depth adjustment from plus 2.8 mm to minus 0.5 mm lets the door be moved in or out relative to the face frame, which helps correct slight boring or frame variations while keeping the door face flush with neighboring doors. Cam lateral adjustment from plus 3.0 mm to minus 2 mm shifts the door side to side, which is especially useful for resolving butt door problems by opening or closing gaps where two doors meet. Slotted screw hole height adjustment of plus or minus 2 mm allows vertical movement, so top and bottom reveals can be matched across a run without reboring. All steel one piece construction with nickel plating resists corrosion, which supports long-term use in typical kitchen and bath environments. The Excentra face frame hinge line is designed to work with Salice Type U soft-close devices, so projects that need soft-closing behavior can pair this hinge with those devices while retaining the same hinge geometry. The hinge has a lifetime warranty, which gives long-term backing to the hinge performance over the life of the installation.
The CSP3599 hinge is a Salice Series S face frame hinge, so it is used on face-frame cabinets where doors overlay the frame, such as many kitchen and bath installations.
This Excentra hinge is specified as a 5/8 inch overlay model, so it suits layouts where the door overlays the face frame by 5/8 inch on the hinged edge.
The hinge is designed to work with cabinet doors up to 3/4 inch thick, which matches standard door construction used in many cabinet shops.
The Excentra 2 cam system provides depth and lateral adjustment ranges, so installers can move the door in, out, and sideways to align reveals and resolve butt door issues.
This hinge uses an 11 mm cup depth and a 2.5 mm cup edge drilling distance, which guides boring depth and setback for consistent hinge cup placement.
This Excentra face frame hinge is a self-closing design, so the hinge action draws the door shut at the end of travel for consistent closing behavior.
The Salice Excentra S 2 cam self-close hinge CSP3599 combines a 5/8 inch overlay rating, 106 degree opening, and face-frame specific geometry, which matches many framed cabinet programs. Adjustable cams for depth and lateral movement, plus slotted height adjustment, provide the fine control needed to align butt doors and reveals quickly. All steel one piece construction with nickel plating, a self-closing design, and a lifetime warranty support long-term cabinet service. For face-frame projects that use doors up to 3/4 inch thick and benefit from zero door protrusion at overlays of 1/2 inch and greater, this Salice Series S hinge offers a focused solution.
Sold In: 1 Each
