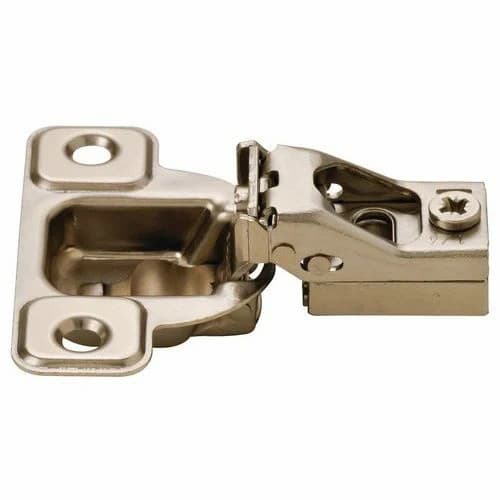

Salice Excentra S 2 cam face frame hinge is a concealed cabinet hinge designed for 3/4 inch overlay doors, so it suits common face-frame kitchen and bath cabinet layouts. This face frame hinge sits in the concealed hinges category, so the hardware stays hidden when the door is shut and leaves a clean cabinet face during everyday use. The hinge provides 106 degree opening, giving a wide swing angle that helps doors clear nearby faces on typical face frame runs. The hinge uses a self-closing mechanism, so doors pull firmly shut at the end of travel, which helps keep fronts aligned in regular use. Salice America supplies this Excentra hinge in nickel, and the nickel plating covers the steel one piece hinge body, giving corrosion resistance in normal cabinet environments. The hinge uses screw-on mounting, which lets installers position and secure each hinge directly to the door and face frame during layout.
This Salice Excentra S concealed cabinet hinge is described as a face frame hinge, so it is meant to mount on cabinets built with a frontal frame rather than full-access construction. The hinge is designed to work with cabinet doors up to 3/4 inch thick, which fits the common panel thickness used on many framed kitchen and bath doors. Excentra hinges with overlays of 1/2 inch and greater have zero door protrusion, so when the door is fully open the edge does not project into the cabinet opening, helping interior pull-outs or shelves move freely. The hinge uses screw-on attachment, letting installers fasten the hinge securely to both the cup bore in the door and the face frame side with standard drilling patterns during install.
The Salice CSP3499 hinge sits in the concealed cabinet hinges class and is specified as a face frame hinge, so it fits framed cabinet construction where the door overlays the frame by 3/4 inch. The hinge is described as providing perfect closing to any kind of door, so it is intended for a broad range of cabinet door styles within its thickness limit. A hinge cup edge drilling distance of 2.5 mm sets the bore close to the door edge, which suits modern overlay layouts and helps achieve the stated 3/4 inch overlay on typical profiles. The hinge is designed to work with cabinet doors up to 3/4 inch thick, so it accommodates many solid wood and composite doors used in residential and light commercial cabinetry. A cup depth of only 11 mm also supports use on doors with thinner or more decorative profiles, where a deeper cup might cut through the panel or weaken the hinge area.
This Excentra two cam hinge provides cam depth adjustment from plus 2.8 mm to minus 0.5 mm, giving front-to-back tuning that lets installers pull the door tighter to the face frame or move it out slightly to align across a run. It also provides cam lateral adjustment from plus 3.0 mm to minus 2 mm, so side-to-side door spacing can be corrected at the hinge without changing the hinge cup position, which reduces rework after doors are hung. The slotted screw hole gives height adjustment of plus or minus 2 mm, allowing small up or down shifts that smooth out reveal lines between doors and drawers. Web description notes this 2 cam adjustable hinge provides the best side to side adjustment in the industry, which highlights how the lateral range supports resolving butt door conflicts on cabinets with tight gaps. Excentra hinges with overlays of 1/2 inch and greater have zero door protrusion, so fully opened doors do not obstruct the cabinet interior, making internal drawers, wire pull-outs, or slide-out trays easier to use beside the hinge side.
The Salice Excentra S CSP3499 hinge is a face frame hinge, so it is intended for framed cabinets where the door overlays the front frame rather than frameless boxes.
The Salice Excentra S face frame hinge is designed to work with cabinet doors up to 3/4 inch thick, which matches many common kitchen and bath door constructions.
The hinge offers 106 degree opening, which gives a wide swing that helps doors clear adjacent cabinet faces and improves access to the cabinet interior.
The two cam system gives depth and lateral adjustment ranges, letting installers shift doors front-to-back and side-to-side at the hinge to fine tune reveals.
The 11 mm cup depth allows the Salice Excentra hinge to be used on most door styles, supporting thinner or profiled doors without overly deep boring.
The Excentra face frame hinge is designed to work with Salice Type U soft-close devices, so soft-close action can be added while keeping the hinge geometry.
The Salice 3/4 inch overlay hinge CSP3499 combines concealed face frame mounting, self-closing action, and a two cam adjustment system, so it supports precise alignment on framed cabinet jobs. Its 106 degree opening and zero door protrusion at overlays of 1/2 inch and greater keep doors clear of the cabinet interior, which suits installations with interior pull-outs or sliding storage. Steel one piece construction with nickel plating offers a robust hinge platform with corrosion resistance for typical woodworking environments. The hinge is also designed to work with Salice Type U soft-close devices, giving a path to add soft-close performance to the same hinge layout. Use this hinge when a concealed 3/4 inch overlay face frame solution from Salice America is required on your next cabinet project.
Sold In: 1 Each
