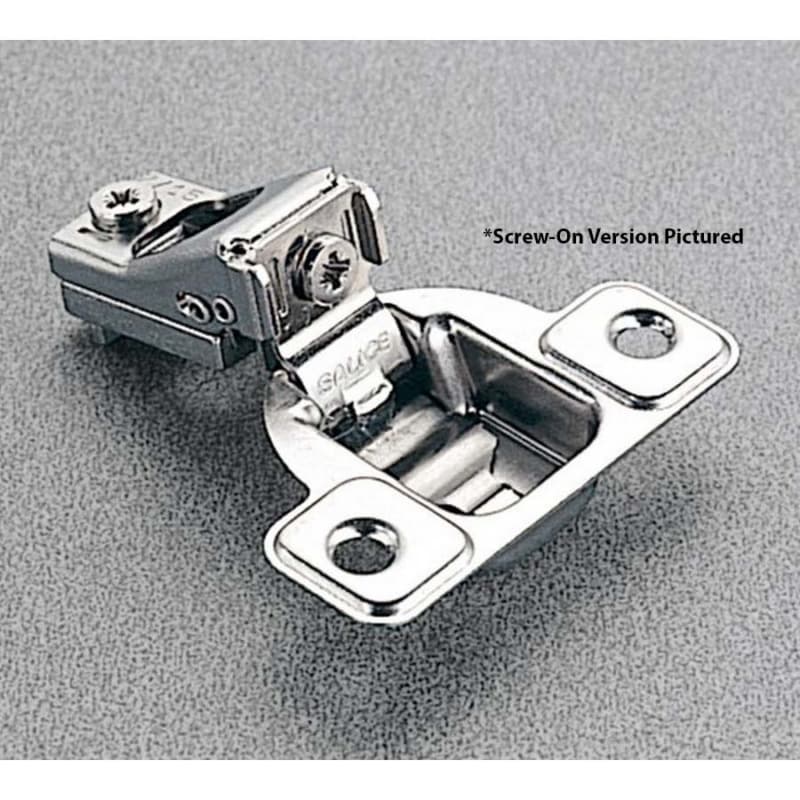

Salice Excentra S face frame hinge is a concealed cabinet hinge designed for face-frame construction, so doors stay clean-lined while the hardware remains hidden during everyday use. This hinge is a self-closing design, so cabinet doors are pulled shut at the end of travel, helping doors stay closed without latches on typical kitchen or shop installations. The hinge provides 106 degree opening, so doors swing wide enough for normal cabinet access while still controlling how far they project into the room. A 7/16 inch overlay configuration positions the door over the frame by that amount, which helps match existing overlay layouts on runs of face-frame cabinets. The hinge works with cabinet doors up to 3/4 inch thick, so it covers the most common door thickness used in residential and light commercial cabinetry.
This Salice Excentra face frame hinge is built for 7/16 inch overlay, so the hinge geometry is tuned to position the door that distance past the face frame edge when adjusted correctly. Excentra hinges with overlays of 1/2 inch and greater have zero door protrusion, so on those installations the open door does not project into the cabinet interior, which helps with full-extension drawer or rollout clearance. The hinge is designed to work with cabinet doors up to 3/4 inch thick, which covers standard solid wood and panel doors commonly used by shops. A 106 degree opening angle balances access and control, so doors clear the opening while still limiting swing in tight corridors or against adjacent obstacles planned around typical cabinetry.
Salice Series S face frame hinges provide perfect closing to any kind of door, so they suit mixed jobs where door construction can vary across the project. The hinge is part of the Concealed Cabinet Hinges class, so it fits situations where hidden hardware and clean fronts are priorities, such as kitchens, bathrooms, and built-ins. Salice Excentra face frame hinges are designed to work with Salice Type U soft-close devices, so they integrate into layouts where soft closing is desired by adding that device at the hinge side. The hinge is designed for face-frame cabinets, so it aligns well with North American framed cabinet construction in both new builds and retrofit work when matching existing overlays and motion.
This 2-cam adjustable hinge provides the best side to side adjustment in the industry to ensure butt door problems are resolved, so installers gain extra lateral range when fitting pairs of doors at a shared stile. Cam depth adjustment from plus 2.8 mm to minus 0.5 mm moves the door toward or away from the face frame, which helps fine-tune reveal at the hinge side after boring. Cam lateral adjustment from plus 3.0 mm to minus 2 mm shifts the door along the frame, so center gaps between doors can be tightened or opened without remounting. Slotted screw hole height adjustment of plus or minus 2 mm provides vertical tuning at the hinge arm, which helps align door top lines and bottom lines over irregular floors or face frames. All hinges are self-closing design, so doors are drawn shut from the last part of the swing, which supports consistent closing feel across multiple openings on a run.
The Salice CSR3899 hinge is a face frame hinge, so it is intended for framed cabinet construction where the hinge mounts to a front frame.
The Salice Excentra S hinge provides 106 degree opening, giving doors a wide swing for access while still controlling projection into surrounding spaces.
This 2-cam adjustable cabinet hinge is designed to work with cabinet doors up to 3/4 inch thick, covering common solid wood and panel door builds.
This Salice 7/16 overlay hinge is built to position the door 7/16 inch over the face frame edge, which helps match standard overlay layouts on framed cabinets.
The hinge offers cam depth adjustment, cam lateral adjustment, and plus or minus 2 mm height via slotted screw holes, helping refine reveal and alignment without rebored holes.
This Salice concealed cabinet hinge is designed to work with Salice Type U soft-close devices, allowing soft-closing action to be added at the hinge side.
The Salice Excentra S face frame hinge with 7/16 inch overlay, 106 degree opening, and 2-cam adjustment brings concealed mounting and precise control to framed cabinets. With an 11 mm cup depth, steel one piece nickel-plated construction, and self-closing design, it supports repeatable alignment across doors up to 3/4 inch thick. For projects using Salice Type U soft-close devices, this hinge provides the motion and geometry foundation those devices are designed around. Select this hinge when concealed appearance, fine adjustment, and overlay control are central to your cabinet work.
Sold In: 1 Each
