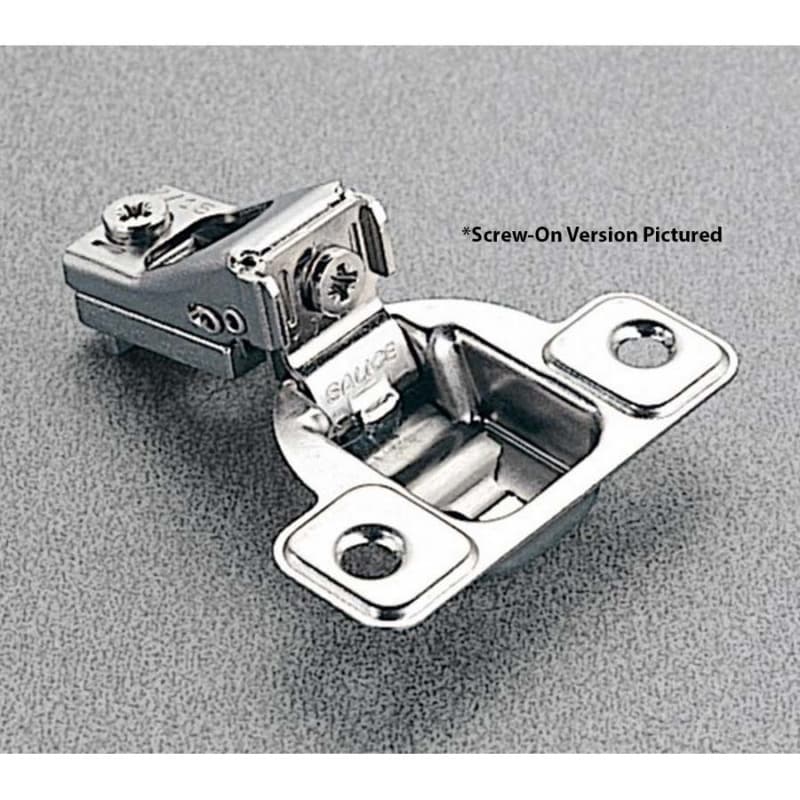

Salice Excentra S 2 cam hinge is a concealed face frame hinge designed for 3/8 inch overlay cabinet doors, so it suits common face frame construction where partial overlay is required. This model CSR3999 belongs to the Salice Series S face frame hinges, which are engineered to provide perfect closing to any kind of door, helping doors sit correctly against the frame. The hinge offers a 106 degree opening angle, giving wide access into the cabinet interior while keeping the hinge hidden from the front. A cup depth of only 11 mm allows this hinge to be used on most door styles, so existing doors with limited material at the cup area still accept the hinge. The product uses a dowel mounting style in the cup, supporting standard production drilling setups for repeatable door preparation.
This Salice face frame concealed cabinet hinge is designed for 3/8 inch overlay, so the door overlaps the face frame by that amount when closed, matching a common North American partial overlay layout. The hinge is designed to work with cabinet doors up to 3/4 inch thick, so standard kitchen and bath door thicknesses remain within the working range. Excentra hinges with overlays of 1/2 inch and greater have zero door protrusion, which means on those overlays the open door does not project into the cabinet opening and can clear interior pull-outs more easily. The CSR3999 hinge is designed to work with Salice Type U soft-close devices, so a soft-close unit can be paired to slow the final closing motion while this hinge manages positioning and alignment.
Salice Series S face frame hinges provide perfect closing to any kind of door, so they suit both new cabinet runs and retrofit work where door alignment needs improvement. The hinge is designed to work with cabinet doors up to 3/4 inch thick, covering many residential and light commercial face frame applications that rely on this common door stock. As a concealed cabinet hinge in the Excentra family, it keeps hardware out of sight from the front, which preserves clean cabinet lines while still allowing full adjustment access inside the cabinet. Excentra face frame hinges are designed to work with Salice Type U soft-close devices, so these hinges integrate into soft-close upgrades while maintaining the same drilling pattern and basic layout.
A cup depth of only 11 mm allows this hinge to be used on most door styles, which helps on doors with narrow rails or profiled inside edges where deeper cups would weaken the door. The hinge cup edge drilling distance of 2.5 mm coordinates door boring with a 3/8 inch overlay layout, simplifying shop drawings and CNC programming. Because the product is a concealed face frame hinge in the Salice Excentra Series S line, it fits into jobs that specify this series for consistency across a project. As a Salice America hinge in nickel finish, it visually matches other nickel-plated Salice components inside the cabinet when doors are open.
This 2-cam adjustable hinge provides the best side to side adjustment in the industry, so small layout variances in face frames or drilling can be corrected at installation instead of rebuilding a door. Cam depth adjustment from plus 2.8 mm to minus 0.5 mm allows the door to move toward or away from the cabinet, which helps flush doors across a long run where frames may not be perfectly planar. Cam lateral adjustment from plus 3.0 mm to minus 2 mm lets doors be shifted to clear adjacent fronts or fillers, reducing time spent planing edges or altering reveals.
Slotted screw hole height adjustment of plus or minus 2 mm permits minor vertical repositioning of the door, which is valuable for aligning rail lines and maintaining even top and bottom clearances without changing hinge cup locations. Excentra hinges with overlays of 1/2 inch and greater have zero door protrusion, and this detail helps when planning interior pull-outs or roll-outs so the open door does not interfere with hardware movement. All hinges are self-closing design, which pulls the door into its final position and maintains contact at the face frame, supporting consistent gaps cabinet to cabinet. The Salice CSR3999 hinge uses all steel one piece construction with nickel plating to resist corrosion, so hinge settings remain stable over time in typical cabinet environments.
The Salice CSR3999 hinge is a 3/8 inch overlay face frame hinge, so the closed door overlaps the cabinet face frame by 3/8 inch for a standard partial overlay layout.
The hinge is designed to work with cabinet doors up to 3/4 inch thick, covering many common residential face frame cabinet doors without changing the basic boring pattern.
The Salice Excentra face frame hinge provides a 106 degree opening angle, giving wide cabinet access while maintaining a concealed hinge installation from the front view.
The hinge offers cam depth adjustment from plus 2.8 mm to minus 0.5 mm and cam lateral adjustment from plus 3.0 mm to minus 2 mm, so doors can be finely positioned on the frame.
Excentra face frame hinges are designed to work with Salice Type U soft-close devices, allowing a soft-close function to be paired with this hinge in cabinet installations.
The hinge has a cup depth of 11 mm with a cup edge drilling distance of 2.5 mm, so door boring can follow this fixed pattern for consistent overlay and structural strength.
The Salice CSR3999 3/8 inch overlay face frame concealed hinge combines a 106 degree opening angle with all steel one piece construction and nickel plating to resist corrosion, so it supports long-term performance in cabinetry. Its 2-cam adjustment system, with defined depth, lateral, and height ranges, lets installers fine-tune door position without rebuilding components. The hinge is designed for doors up to 3/4 inch thick, tying into typical kitchen or bath work. Use this hinge where precise alignment, self-closing action, and compatibility with Salice Type U soft-close devices matter across a project.
Sold In: 1 Each
