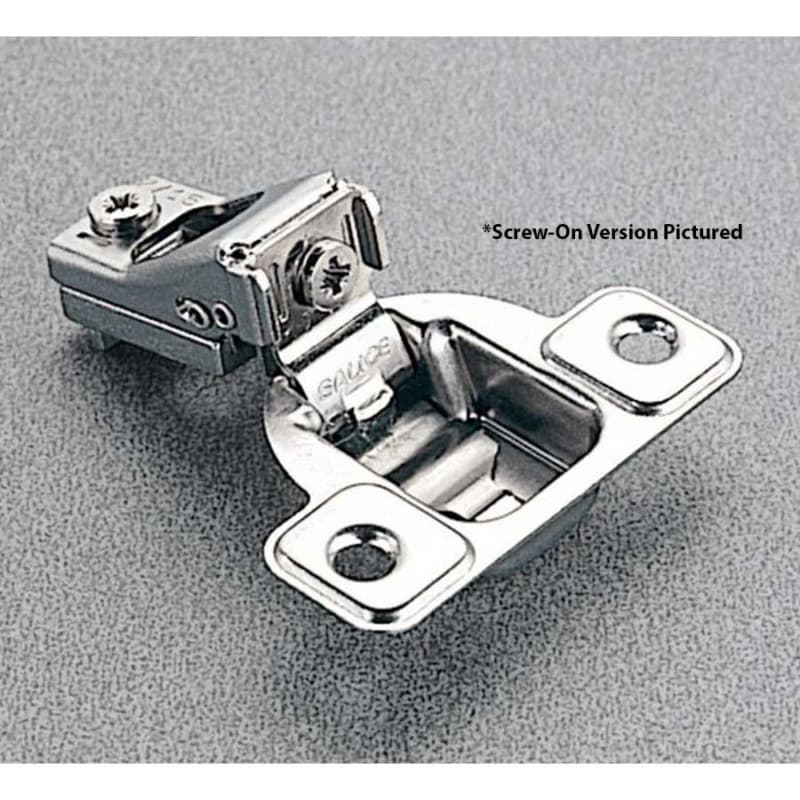

Salice Excentra S 2 cam hinge is a concealed face frame hinge designed for 1/4 inch overlay doors in cabinet projects that call for a clean front and dependable door action. This hinge belongs to the Salice Series S face frame line, so it is engineered to provide precise closing on many kinds of cabinet doors where a hidden hinge is preferred. The hinge provides a 106 degree opening angle, giving doors a wide but controlled swing that suits everyday cabinet access. It is a self-closing design, so once the door reaches the closing range the hinge pulls it shut, helping doors sit consistently without extra effort. As a face frame hinge in the concealed cabinet hinge class, it supports professional installations where the hinge stays hidden while managing overlay, swing, and closing action.
This Salice face frame hinge is designed specifically for 1/4 inch overlay doors on face frame cabinets, so it targets a common residential and commercial cabinet layout where the door overlays the frame modestly. The hinge cup edge drilling distance is 2.5 mm, giving a defined setback from the door edge that supports repeatable boring on door production runs. A door thickness capacity up to 3/4 inch means standard cabinet doors can be used without changing material thickness to suit the hinge. The hinge uses a dowel mounting style, which suits door preparation where dowel boring is already part of the machining process. As a 106 degree hinge in the concealed cabinet hinges class, it balances full access with controlled swing for typical cabinet interiors.
This Salice face frame hinge is designed for 1/4 inch overlay applications on face frame cabinets, so it fits projects where the door overlays the frame edge by a quarter inch and the hardware must stay concealed. The hinge is intended to work with cabinet doors up to 3/4 inch thick, aligning with standard door construction in many shops. As part of the Salice Series S face frame hinges, it is made for cabinets that need precise closing across a variety of door styles while keeping the hardware hidden. The hinge cup requires only 11 mm depth, so it suits thinner or profiled doors that cannot accept deeper cup borings. Excentra face frame hinges are designed to work with Salice Type U soft-close devices, giving shops a path to add soft-closing function where that system is used.
This Excentra hinge uses a two cam adjustment system that provides cam depth adjustment from plus 2.8 mm to minus 0.5 mm and cam lateral adjustment from plus 3.0 mm to minus 2 mm, so installers can fine-tune door position in and out as well as side to side after the hinge is mounted. The slotted screw hole height adjustment of plus or minus 2 mm adds vertical control, which simplifies lining up reveals across multiple doors without recutting components. All steel one piece construction with nickel plating resists corrosion, supporting hinge performance in normal cabinet environments over extended service. The hinge delivers a 106 degree opening angle, offering a wide door swing that still respects adjacent cabinets and walls in many layouts. Excentra hinges with overlays of 1/2 inch and greater provide zero door protrusion, which is useful in runs where large overlays must open without the door projecting into the interior path. All hinges in this line are self-closing, so doors are drawn shut into consistent contact with the cabinet, reducing variation in how doors sit. The hinge carries a lifetime warranty from Salice, signaling that it is built for long-term cabinet service where repeated opening and closing are expected.
The Salice CSR3Y99 hinge is for face frame cabinets with 1/4 inch overlay doors, so it suits cabinet frames where the door overlays the front by a quarter inch.
The Salice Excentra face frame hinge is designed to work with cabinet doors up to 3/4 inch thick, covering common cabinet door constructions used in many shops.
The hinge provides cam depth adjustment from plus 2.8 mm to minus 0.5 mm and cam lateral adjustment from plus 3.0 mm to minus 2 mm, helping dial in gaps and reveals.
The Salice CSR3Y99 hinge has slotted screw hole height adjustment of plus or minus 2 mm, allowing small vertical shifts to align doors along the face frame.
The 11 mm cup depth allows this hinge to be used on most door styles, which helps when working with thinner or profiled doors that cannot accept deeper cups.
Excentra face frame hinges are designed to work with Salice Type U soft-close devices, so doors can gain controlled soft closing where that system is installed.
The Salice CSR3Y99 concealed cabinet hinge combines a 106 degree opening angle, self-closing action, and two cam adjustment for fine door control on 1/4 inch overlay face frame cabinets. With 11 mm cup depth, 2.5 mm cup edge drilling distance, and capacity for doors up to 3/4 inch thick, it aligns with common cabinet construction methods. All steel one piece construction with nickel plating and a lifetime warranty supports long-term cabinet performance. For face frame jobs needing concealed hardware, controlled adjustment, and the option to coordinate with Salice Type U soft-close devices, this hinge provides a focused solution.
Sold In: 1 Each
