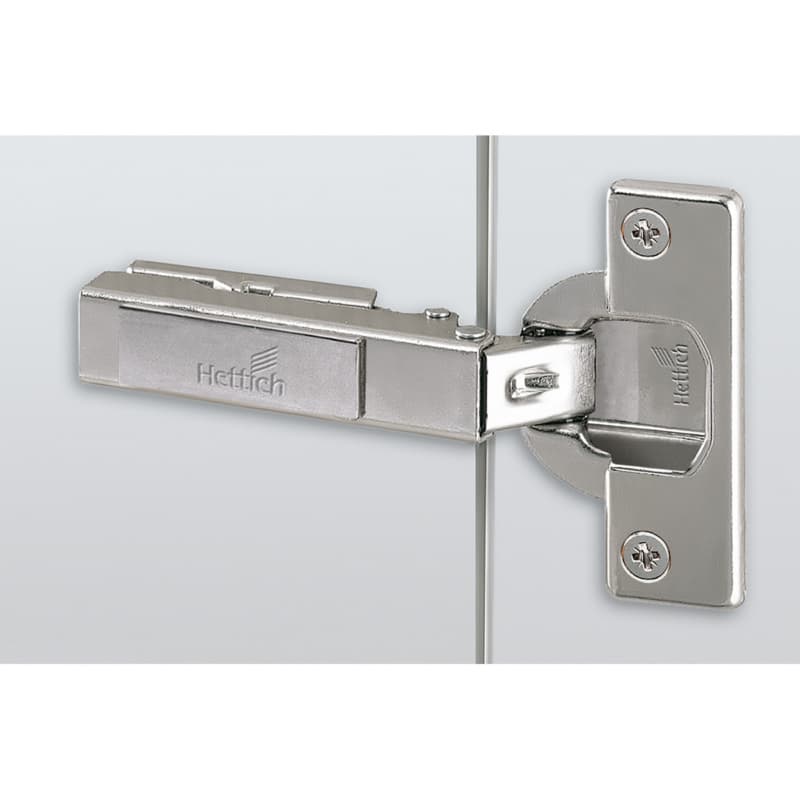

Hettich Intermat self-close hinge is a concealed cabinet hinge designed for half overlay face-frame and frameless applications, so it supports standard European-style layouts while keeping hardware hidden. The 110 degree opening angle allows wide door swing, which helps during access to cabinet interiors and when installing pull-out components. A 35mm cup diameter matches common European hinge boring, so it fits standard hinge cup drilling patterns on many cabinet doors using that size. The 11.6mm cup depth keeps the bore shallow, which helps when working with doors where deeper drilling could be a concern. The hinge is built as a self-close unit, so the door is drawn shut at the end of travel, helping doors sit closed consistently in everyday use.
The hinge uses a 35mm cup diameter and 11.6mm cup depth, so boring operations can follow standard 35mm hinge cup drilling routines with that depth. Door thickness from 15-25mm is supported, allowing use on many cabinet doors built within that range. Integrated overlay adjustment of plus 2mm / minus 2mm and depth adjustment of plus 2.5mm / minus 1.5mm are built into the hinge, so final door position can be tuned in multiple directions using the adjustment features rather than altering drilling. Height adjustment at the mounting plate adds vertical movement, so installers can align doors along a run by working at the plate instead of modifying the door.
The hinge is specified for half overlay face-frame and frameless hinges, so it serves both traditional face-frame cabinets with partial overlay and frameless constructions that follow European concealed standards. The 110 degree opening angle works well on cabinets where wider access is helpful, such as base cabinets or storage units using interior fittings that benefit from a broad swing. With a door thickness range of 15-25mm, the hinge can be used on many standard cabinet doors within that thickness, so one hinge type can support multiple door styles in the same project. The 35mm cup diameter connects directly to common European boring setups, so door preparation can follow familiar patterns on CNC or line-boring equipment using that size. A cup depth of 11.6mm suits doors where a moderate bore depth is preferred, supporting stable seating of the hinge cup in the door material.
Integrated overlay adjustment of plus 2mm / minus 2mm lets the door edge be shifted side-to-side at the hinge, so the reveal between doors or between door and frame can be evened out after installation. Integrated depth adjustment of plus 2.5mm / minus 1.5mm moves the door closer to or farther from the cabinet front, so doors can be aligned flush across a bank of cabinets even when the cabinet faces vary slightly. Height adjustment at the mounting plate answers vertical fit, so the door can be raised or lowered relative to the cabinet opening to line up top and bottom edges across adjoining units. The hinge is classified under EN 15570, Level 2, giving a standard-based performance classification that can be referenced when specifying hardware in projects that call for tested European concealed cabinet hinges.
The hinge supports door thickness from 15-25mm, so it can be used across many cabinet door constructions built within that thickness range.
The hinge uses a 35mm cup diameter with an 11.6mm cup depth, so the door requires a 35mm bore drilled to that depth for the hinge cup.
The hinge has a 110 degree opening angle, allowing the door to swing wide for better access to cabinet interiors and hardware inside.
The hinge provides integrated overlay adjustment of plus 2mm / minus 2mm, depth adjustment of plus 2.5mm / minus 1.5mm, and height adjustment at the mounting plate.
The hinge has quality classification under EN 15570, Level 2, indicating it has been assessed to that European hinge performance standard and placed in that level.
The manufacturer part number is 1030921, which identifies this specific Intermat 110 self-close half overlay hinge with 45mm dowel configuration.
The Hettich Intermat self-close hinge combines 110 degree opening with concealed mounting, so cabinets gain clear access and a clean front appearance. With integrated overlay, depth, and height adjustment, the hinge supports precise door alignment on doors from 15-25mm thick. The 35mm cup diameter and 11.6mm cup depth match standard European boring, so production and installation can follow established drilling patterns. EN 15570 Level 2 classification provides a defined performance level for specification. Use this hinge when a concealed, self-closing European hinge with multi-directional adjustment and half overlay face-frame or frameless capability is required.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
