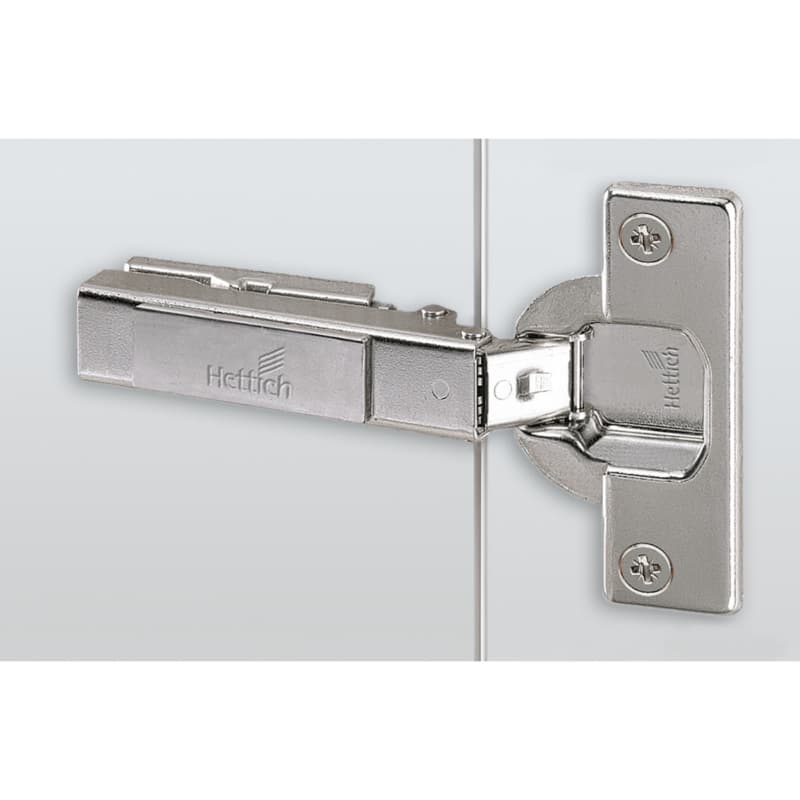

Hettich Intermat Self-Close Half Overlay Face-Frame;Frameless Hinges Nickel, 95° Dowel - 9043633

Hettich Intermat Self-Close Hinge For Cabinets

Hettich Intermat self-close hinge provides a concealed cabinet hinge solution that keeps the hardware out of sight while controlling cabinet door movement, which helps give finished jobs a clean, professional look. This concealed hinge belongs to the European standard hinges class, so it supports typical concealed installations on cabinet doors where a traditional exposed hinge would not be suitable. The 95 degree opening angle lets the door swing open far enough for normal cabinet access while still limiting the arc, which helps when doors open near walls or adjacent cabinets. The hinge works with door thickness from 14 to 32mm, covering a wide range of cabinet door materials and construction styles. Its nickel finish provides a uniform appearance across a run of cabinets on jobs where consistent hardware style matters.

Key Intermat Hinge Details For Cabinet Work

• This hinge is specified as a self-close hinge, so the closing function is built into the hinge mechanism, which helps doors return to the closed position for a more controlled shut in everyday use.
• The product is described as a half overlay hinge, so the door covers only part of the face frame or side panel, which helps when planning reveals and margins on multi-door cabinet runs.
• The hinge is listed for face-frame and frameless cabinet use, so it can be applied across different cabinet construction methods, which helps streamline hardware selection on mixed-construction projects.
• A cup diameter of 35mm defines the drilling size needed in the door, which helps align boring operations with standard 35mm hinge cup tooling in the shop.
• The cup depth of 11.1mm sets how deep the hole is bored into the door, which helps avoid drilling through thinner doors while still seating the hinge cup securely.

Installation And Adjustment Details For This Hinge

This concealed hinge uses a 35mm cup with 11.1mm depth, so drilling operations can follow a consistent pattern that fits common European hinge boring setups, which helps speed repetitive cabinet door preparation. Integrated overlay adjustment of plus 2mm or minus 2mm is built into the hinge, so the door position over the cabinet front can be shifted at the hardware, which helps fine-tune reveals without re-drilling hinge cups. Integrated depth adjustment of plus 2.5mm or minus 1.5mm is also provided at the hinge, so the door can move closer to or farther from the cabinet front, which helps correct small alignment issues after installation. Height adjustment is handled at the mounting plate, so vertical door gaps can be corrected on the cabinet, which supports consistent lines across multiple doors on the same elevation.

Using This Concealed Hinge In Cabinet Projects

Where This Hettich Intermat Hinge Is Applied

This Hettich concealed cabinet hinge is identified as a half overlay face-frame and frameless hinge, so it can be used on cabinets with a front frame or on frameless boxes, which helps one hinge style serve different cabinet constructions. The specified 95 degree opening angle means the door stops short of a full swing, which helps when cabinets are located near corners, appliances, or walls where extra travel could cause interference. Door thickness capability from 14 to 32mm lets this hinge work on thinner doors through to heavier fronts within that range, which supports use on a variety of residential or commercial cabinet doors built from different materials. As part of the concealed cabinet hinges product class, this hinge keeps hardware hidden inside the cabinet, which helps projects that call for clean door faces and uninterrupted exterior styling.

Why Intermat Adjustments Support Consistent Results

The hinge provides integrated overlay adjustment of plus 2mm and minus 2mm, so the door overlay can be shifted directly at the hinge arm, which helps dial in side gaps and alignment between neighboring doors without altering the drilling pattern. Integrated depth adjustment of plus 2.5mm and minus 1.5mm lets the door move relative to the cabinet front, which helps correct doors that sit slightly proud or recessed after initial mounting. Height adjustment at the mounting plate means vertical gaps can be balanced by moving the door up or down at the plate, which supports straight sight lines across doors and drawer fronts. The hinge has a quality classification under EN 15570, Level 2, so it has been assessed to that hinge standard, which matters for projects where a documented hinge performance level is part of the specification. The self-close function built into this hinge controls the final part of the closing motion, which helps doors rest at the closed position without relying on additional closing devices. The nickel finish noted for this hinge gives the hardware a consistent metallic appearance inside the cabinet, which helps maintain a uniform look when doors are open on finished installations.

Common Questions About This Intermat Cabinet Hinge

Select This Hinge For Adjustable Concealed Cabinet Doors

The Hettich Intermat self-close hinge with 95 degree opening, 35mm cup diameter, and 11.1mm cup depth offers a concealed mounting style with defined drilling details, which supports accurate preparation on cabinet doors. Door thickness capability from 14 to 32mm, together with integrated overlay and depth adjustments and height adjustment at the mounting plate, provides the adjustment range needed to align doors across a cabinet installation. With quality classification under EN 15570, Level 2 and a nickel finish, this concealed cabinet hinge supplies specification data and a consistent appearance for cabinet projects where both function and documented hinge details are important.
