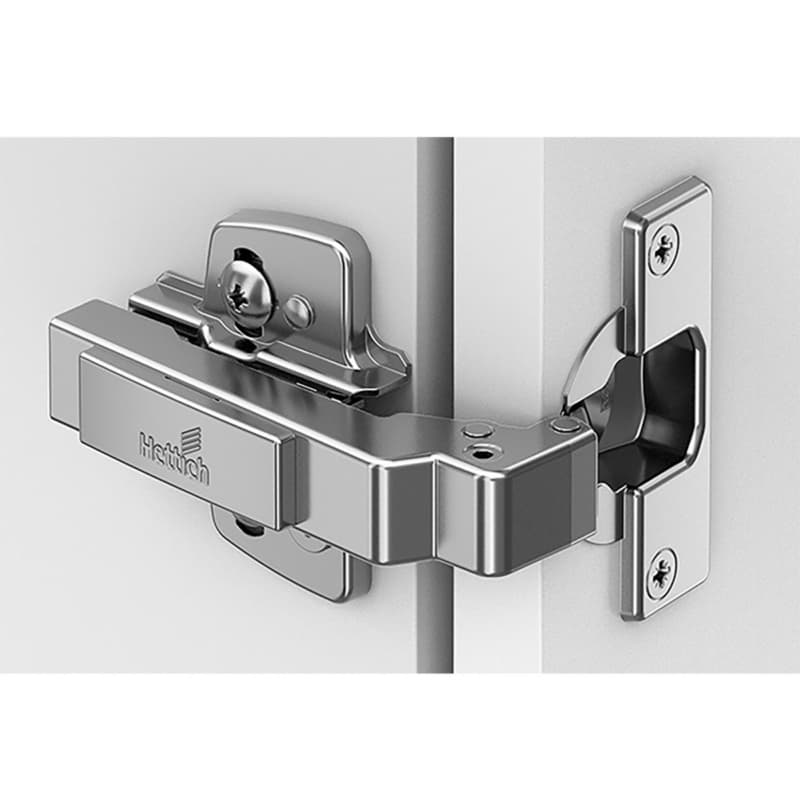

Hettich Intermat Self-Close Inset Overlay 90° Angle Face-Frame;Frameless Blind Corner Hinge Nickel, 95° Dowel - 9043682

Hettich Intermat Blind Corner Hinge For Cabinet Doors

Hettich Intermat blind corner hinge is a concealed cabinet hinge designed for inset overlay applications on face-frame and frameless blind corner doors. This hinge belongs to the European concealed long arm hinge category, so it sits out of sight while controlling the door movement. The 95 degree opening angle lets the door swing to a workable position without overextending, which helps manage clearances in tight cabinet runs. The hinge is nickel finished, giving the hardware a consistent look with other nickel cabinet components where a uniform appearance helps tie a job together. As a concealed cabinet hinge, it supports clean door lines on finished work while still providing access for adjustment at the cup and mounting area.

Key Intermat Hinge Details That Support Your Work

• The hinge is part of the Intermat line, described as easy to fit, which streamlines installing multiple doors on a run because the same familiar setup process can be repeated from cabinet to cabinet.
• Intermat hinges are described as adjustable without effort, so fine-tuning gaps and reveals during install or later service work can be done quickly at the hinge instead of refitting the door.
• The hinge is noted as handy and versatile and suitable for any application, which lets one hardware family cover a range of cabinet layouts, reducing product variation on the job.
• This product is classified under European concealed long arm hinges and European blind corner hinges, aligning it with common shop drilling patterns and helping maintain consistency with other European-style components.
• Quality classification under EN 15570, Level 2, places the hinge within a defined performance standard, which supports predictable behavior in normal cabinet use over time.

Mounting And Adjustment For Accurate Cabinet Fit

The hinge installs with expanding sockets, so the dowel-style connection locks into the door drilling and helps provide a consistent, repeatable mounting method across multiple doors. The integrated adjustment of door offset from plus 2mm to minus 2mm lets the installer shift the door relative to the cabinet front, which is useful for aligning doors along a face frame or flush front. Integrated reveal adjustment of plus 2.5mm to minus 1.5mm provides control over the gap between door and frame or adjacent door, helping achieve uniform spacing on a full bank. Height adjustment is located at the mounting plate, which means vertical alignment can be corrected at the plate rather than reworking the door, saving time during final fit.

Using This Intermat Concealed Cabinet Hinge In Practice

Where This Blind Corner Hinge Fits Best

This hinge is identified as a face-frame and frameless blind corner hinge, so it is suited to blind corner cabinet layouts where standard hinges cannot be positioned directly at the opening edge. The self-close function draws the door shut at the end of travel, which helps cabinet doors return to the closed position in everyday use. Door thickness from 14mm to 28mm is supported, giving room to work across common cabinet door constructions, from thinner doors to heavier fronts within that range. The 35mm cup diameter works with standard European hinge boring, so existing drilling processes and jigs in the shop can be used. A cup depth of 11.1mm keeps the bore contained within the door thickness range given, which supports maintaining face integrity while still housing the concealed mechanism. Because this hinge is a concealed cabinet hinge from Hettich America Corporation, it aligns with other Hettich hardware families often used on professional cabinetry projects.

Adjustment Range For Repeatable Door Alignment

The integrated door offset adjustment of plus 2mm to minus 2mm provides lateral movement at the hinge, so doors can be nudged into alignment along the cabinet front without altering the drilling. This adjustment simplifies running a straight line of doors across face-frame or frameless cabinets where small variations in carcass construction would otherwise show. The integrated reveal adjustment of plus 2.5mm to minus 1.5mm gives additional control over the gap between the door edge and the frame or neighboring door, which is important when matching reveals across an entire kitchen or bank of office cabinets. Height adjustment at the mounting plate concentrates vertical tuning at one location, so doors can be raised or lowered relative to the cabinet box with the mounting plate interface. Installation with expanding sockets in the door provides a secure seating of the hinge cup, helping the adjustments remain effective over time as the hinge is operated during regular cabinet use.

Common Questions About This Hettich Intermat Hinge

Select This Intermat Hinge For Precise Cabinet Work

The Hettich Intermat blind corner hinge combines concealed mounting, a 95 degree opening angle, and self-close action to manage doors on inset overlay blind corner cabinets. Its 35mm cup diameter, 11.1mm depth, and 14mm to 28mm door thickness range align with common shop practices. Integrated door offset and reveal adjustments, plus height adjustment at the mounting plate, give the control needed to dial in clean lines and even gaps. For projects using European concealed long arm hinges, this nickel Intermat option from Hettich America Corporation offers a coordinated way to handle blind corner doors while keeping adjustment accessible after installation.
