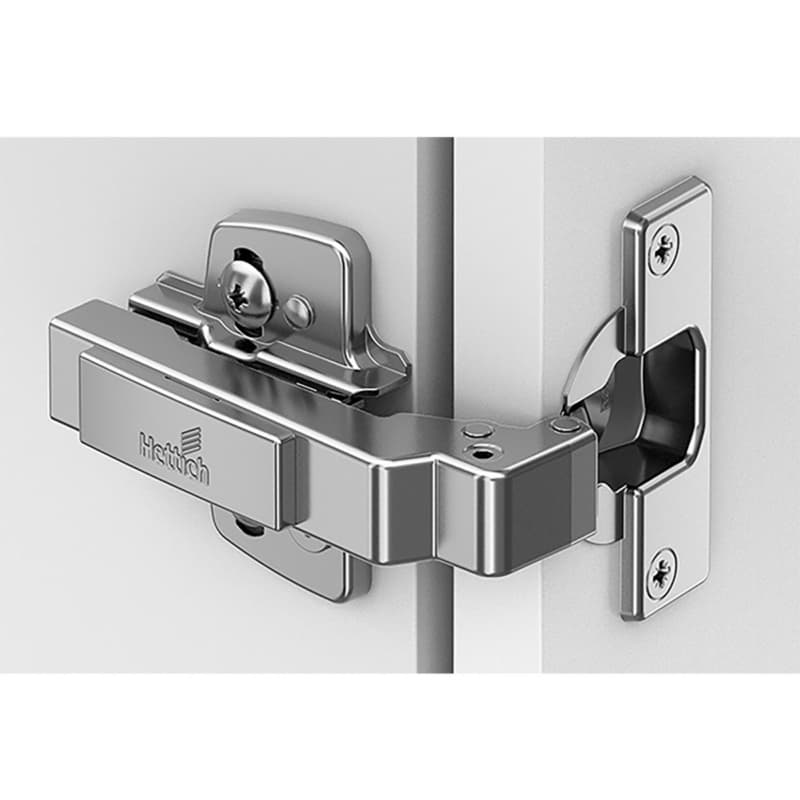

Intermat Blind Corner Hinge For Cabinet Doors
Intermat blind corner hinge is a concealed cabinet hinge designed for overlay face-frame or frameless blind corner applications, so it lets you keep hardware hidden while hanging doors in tight corner layouts. The cup diameter of 35mm fits standard European hinge boring patterns, which simplifies drilling when working on new cabinets or retrofits. Cup depth of 11.1mm helps the cup sit securely in the door while preserving material behind the bore, which supports strength in typical cabinet door constructions. A door thickness range of 14 - 28mm means the same hinge style can serve thinner doors up through thicker fronts, which helps keep hardware consistent across a project. The 95 degree opening angle gives enough swing for everyday access while controlling how far the door projects into the room or into adjacent cabinets.
Key Intermat Overlay Hinge Working Advantages
- The self-close function pulls the door shut at the end of travel, which helps doors sit closed without extra catches in regular cabinet use.
- Overlay design for face-frame and frameless blind corners lets the door overlap the cabinet structure, which helps achieve common reveal and overlay layouts on corner runs.
- Integrated door offset adjustment of plus 2mm / minus 2mm allows the door position to shift side-to-side on the hinge side, which supports fine tuning alignment between neighboring doors.
- Integrated reveal adjustment of plus 2.5mm / minus 1.5mm lets you change the gap between door and cabinet, which helps line up reveals across a bank of cabinets.
- Height adjustment at the mounting plate provides vertical movement, which helps bring door tops and bottoms into line without redrilling hinge cups.
- Installation with expanding sockets secures the 45mm dowel-style hinge in the door, which speeds installation and provides consistent holding in the 35mm bore.
Intermat Hinge Mounting, Boring, And Adjustment
This Intermat 35mm cup hinge uses a 35mm cup diameter and 11.1mm cup depth, so standard European hinge boring equipment and bits can be used to prepare the door. The 45mm dowel layout with installation by expanding sockets lets the dowels lock in the bore, which is useful when repeating the same hinge position across multiple doors. The hinge provides integrated door offset adjustment of plus 2mm / minus 2mm and reveal adjustment of plus 2.5mm / minus 1.5mm, so the door can be shifted horizontally to correct small layout variations. Height adjustment at the mounting plate allows vertical tuning from the plate, which supports on-cabinet corrections after doors are hung.
Using This Hinge In Blind Corner Cabinet Runs
Where This European Blind Corner Hinge Fits
This concealed cabinet hinge is part of the European concealed long arm hinge class and is described for overlay 90 degree angle face-frame and frameless blind corner hinge use, so it fits corner cabinet layouts where the door must clear adjacent components while remaining overlay. The 95 degree opening angle helps the door swing open enough for access in blind corner conditions without over-rotating into neighboring doors or walls. A door thickness range of 14 - 28mm supports use on a variety of cabinet door builds, from thinner stock up to heavier fronts, which helps align one hinge choice across a kitchen or commercial installation that uses different door constructions. The nickel finish on the hinge gives a neutral metal appearance inside the cabinet, which suits typical cabinet interiors where visible hardware should stay unobtrusive.
Why Intermat Hinge Adjustments Support Clean Results
The integrated adjustment of door offset plus 2mm / minus 2mm lets you move the door across the opening on the hinge side, which helps correct minor drilling or mounting variations so reveals stay even. Integrated reveal adjustment of plus 2.5mm / minus 1.5mm provides control over the gap between the door edge and cabinet, which is important when aligning multiple doors in a run or around a blind corner where gaps are immediately noticeable. Height adjustment at the mounting plate means vertical alignment can be dialed in on the cabinet, which reduces rework on door boring when tops or bottoms are slightly off line. Installation using expanding sockets with the 45mm dowel design stabilizes the hinge in the 35mm cup, which supports repeatable positioning and helps the hinge hold alignment during normal cabinet use. Quality classification under EN 15570, Level 2 describes a tested performance category, which matters for projects that call for hinges evaluated to a recognized European standard.
Common Questions About This Intermat Blind Corner Hinge
What door thickness range does this hinge support?
This hinge supports a door thickness of 14 - 28mm, which covers many cabinet door constructions from lighter fronts to thicker doors in the same project.
What cup size is required for the Intermat 35mm cup hinge?
The hinge uses a 35mm cup diameter with an 11.1mm cup depth, which matches standard European hinge boring patterns for typical cabinet door machining.
How far can the cabinet door open with this hinge?
The hinge provides a 95 degree opening angle, which allows the door to open for access while controlling swing in tight or blind corner cabinet layouts.
What installation method does the 45mm dowel cabinet hinge use?
The hinge installs with expanding sockets in a 35mm bore, so the dowels expand in the door material to hold the hinge cup securely in place.
How can this hinge be adjusted after mounting?
The hinge offers door offset adjustment of plus 2mm / minus 2mm, reveal adjustment of plus 2.5mm / minus 1.5mm, and height adjustment at the mounting plate for alignment.
What does the EN 15570 level 2 classification indicate?
The EN 15570, Level 2 classification identifies a quality level under this European standard, giving a defined performance category for the hinge design.
Select This Intermat Hinge For Corner Applications
The Intermat self-close cabinet hinge from Hettich America Corporation combines a 35mm cup, 14 - 28mm door thickness range, and 95 degree opening angle, so it suits many overlay blind corner and face-frame applications. Integrated door offset, reveal, and height adjustments let you fine tune alignment on the cabinet, which supports clean reveals and consistent gaps. Installation with 45mm dowels and expanding sockets ties the hinge solidly to the door, which helps maintain position over time. For trade shops and serious DIY work, this hinge provides a concealed option for corner layouts needing overlay doors and precise adjustment.
