Hettich Intermat Self-Close Overlay Face-Frame;Frameless Pie Cut Corner Hinge Nickel, 50° Dowel - 9090108

Hettich Intermat Pie Cut Corner Hinge For Corner Doors

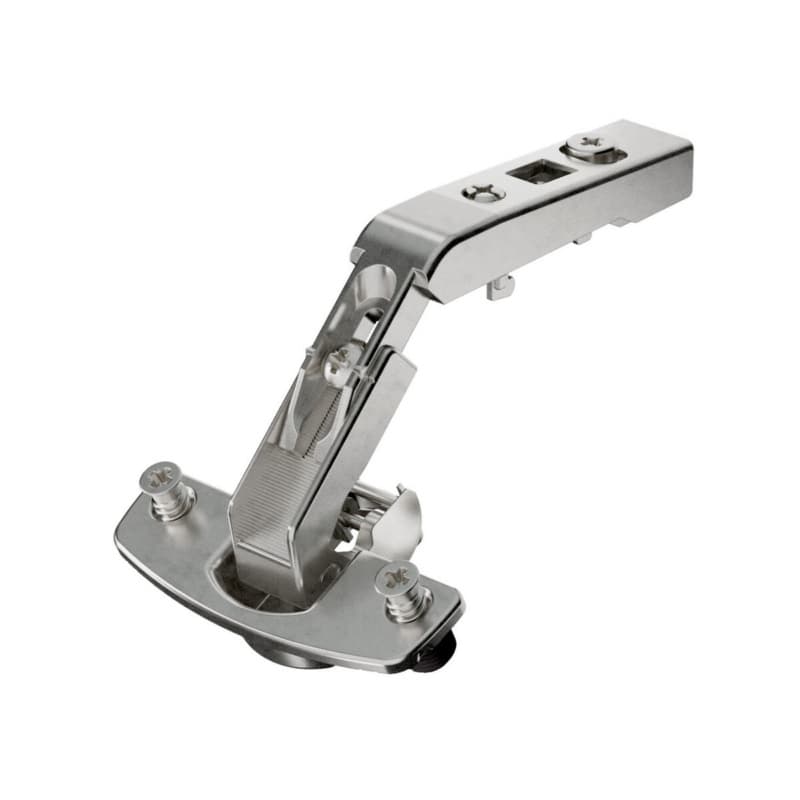

Hettich Intermat pie cut corner hinge is a European concealed long arm hinge designed as a hinge for corner cabinet folding doors, so it supports pie cut corner layouts in kitchen or similar cabinetry. The hinge provides overlay mounting for face-frame and frameless applications, which lets you use the same hinge style across different cabinet constructions on the job. Its 50 degree opening angle matches corner cabinet requirements where doors share a pie cut configuration, so the doors swing to the intended working position without overtravel. The hinge is specified for door thickness from 14 to 21 mm, giving a defined thickness range that matches common cabinet door constructions. A cup depth of 12.8 mm sets the drilling depth in the door, which simplifies repeating the same cup bore setup across multiple doors. Nickel finish on the hinge presents a standard cabinet hardware appearance that matches typical interior hardware finishes.

Key Intermat Hinge Details That Help On Site

• Overlay face-frame and frameless design lets this hinge work on both cabinet construction styles, so a single hinge type can be used across different runs of cabinetry during one installation.
• The 50 degree configuration is tailored as a hinge for corner cabinet folding doors, which supports the motion range those doors need in pie cut corner layouts without requiring a wider swing.
• Door thickness capability from 14 to 21 mm defines the usable range for door material, helping align hinge choice with typical panel stock and avoiding hinges that do not match the build.
• Cup depth of 12.8 mm provides a precise drilling depth in the door, which helps set up boring equipment once and repeat accurate hinge cup holes door after door.
• Diagonal adjustment of plus or minus 9.5 mm offers in-and-out alignment capability at the hinge, so the doors can be fine-tuned relative to each other along the folding joint.
• Height adjustment at the mounting plate places vertical correction at the plate position, allowing door reveal alignment along the cabinet run without re-boring hinge cups.
• Installation with expanding sockets provides a defined mounting method, so the hinge is secured in the door using this socket style rather than relying on a different fixing system.
• Quality classification under EN 15570, Level 2 states a tested performance level for this concealed cabinet hinge, which indicates the hinge has been evaluated against that European standard.

Mounting, Adjustment, And Intermat Hinge Setup

This Intermat 50/65 hinge installs using expanding sockets, so the door-side fixing relies on expansion within the bored cup area rather than separate fastener methods. The cup depth of 12.8 mm defines the boring depth for the hinge cup, so once the drilling setup is dialed in, multiple doors can be processed with consistent results. Diagonal adjustment of plus or minus 9.5 mm is built into the hinge, providing a way to shift the door position diagonally at the hinge side to refine the fold between corner cabinet doors. Height adjustment is located at the mounting plate, which gives a vertical correction point across the cabinet face, allowing the installer to bring the folding doors into line with adjacent faces. The hinge is noted as without self closing feature, so the door movement is not driven by an internal self-closing mechanism during operation.

Using This Concealed Corner Hinge In Cabinet Projects

Where This Corner Folding Door Hinge Fits Best

This concealed cabinet hinge is categorized as a European pie cut corner hinge and a hinge for corner cabinet folding doors, so it is aligned with corner cabinet applications where two doors are linked as a folding set. Its overlay face-frame and frameless designation means it is configured for use on overlay doors in both face-frame cabinets and frameless cabinets, which supports consistent hardware selection across different carcass styles. The specified door thickness range of 14 to 21 mm fits many standard cabinet door constructions, so doors within that thickness band pair with the hinge geometry. With a 50 degree design noted in the product identity, the hinge is tailored toward corner configurations matching that opening requirement in cabinet layouts. The concealed long arm hinge construction keeps the hardware within the cabinet envelope, maintaining the clean exterior appearance typical of European concealed hinges in residential and commercial casework.

Why Intermat Hinge Details Support Accurate Results

The cup depth of 12.8 mm lets boring operations be standardized, which supports repeatable hinge positioning and reduces variation in the way doors sit relative to the cabinet front. Diagonal adjustment of plus or minus 9.5 mm built into the hinge provides a defined adjustment range, helping to refine the angle and gap between folding doors so they work smoothly in corner use. Height adjustment at the mounting plate means vertical alignment changes are carried out at the plate interface, which helps align multiple doors along the run without altering the hinge cup locations already drilled in the door. Installation with expanding sockets establishes a consistent retention method within the door, so once the sockets are engaged, the hinge sits in a repeatable position that supports accurate overlay. The EN 15570 Level 2 quality classification signals that the hinge has been classified to this European concealed hinge standard, which relates the product to a recognized testing framework. The hinge is specified as without self closing feature, so door movement is governed by user operation or any additional components in the cabinet rather than by a built-in self-close action.

Common Questions About The Intermat Pie Cut Hinge

Choose This Intermat Hinge For Corner Door Projects

This Hettich America Corporation Intermat 50/65 hinge, part number 9090108, combines overlay capability for face-frame and frameless cabinets with a design specific to corner cabinet folding doors. The defined 14 to 21 mm door thickness range, 12.8 mm cup depth, and diagonal plus or minus 9.5 mm and height adjustments give clear parameters for drilling and alignment work. With installation using expanding sockets and quality classification under EN 15570 Level 2, this concealed cabinet hinge provides a documented configuration for pie cut corner cabinet projects where European concealed long arm hinges are required.
