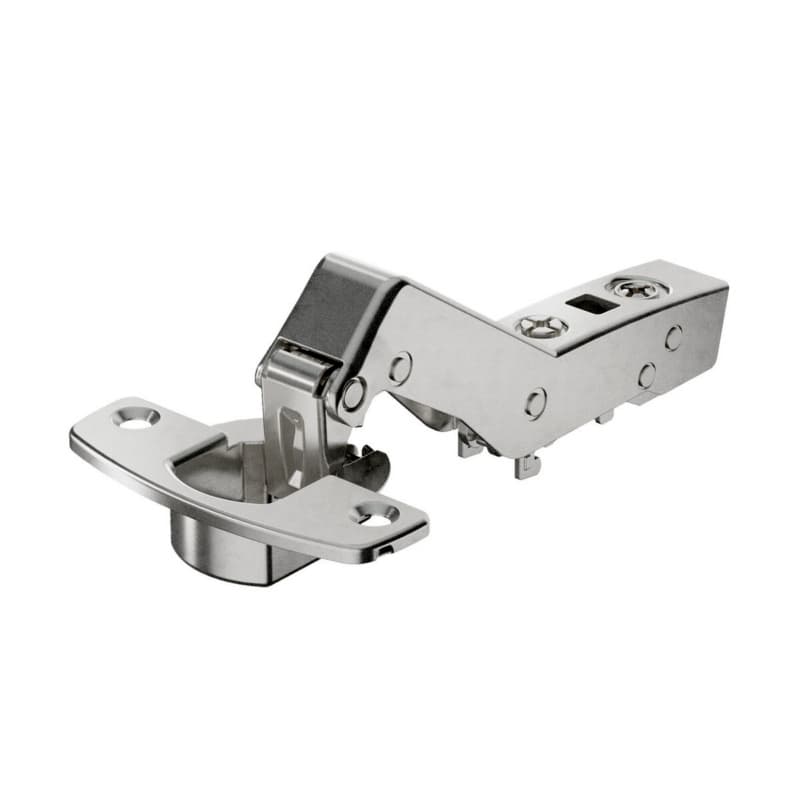

Hettich Sensys Soft Close Hinge For Angled Cabinets
Hettich Sensys soft close hinge is a concealed cabinet hinge designed for 45 degree angle face-frame or frameless applications, so doors on angled cabinets can be aligned while keeping hardware out of sight. This hinge offers a 95 degree opening angle, giving doors enough swing for everyday access without overextending into walkways. The zero protrusion design keeps the door and hinge out of the cabinet interior path, which supports full use of storage space behind the door. A wide automatic closing angle of 35 degrees pulls the door shut once it is partially closed, helping doors seat consistently against the face frame. The integrated Silent System provides soft closing, so the door slows down at the end of travel for controlled, quiet closing in regular use.
Key Sensys Hinge Details That Help On The Job
- The hinge is built as a European concealed long arm hinge, so the cup sits inside a machined hole and the arm reaches to the mounting plate, leaving only the door and face-frame visible for a clean finished look.
- Zero protrusion is engineered into this Sensys hinge, which means when doors are opened the hinge geometry keeps the hardware from projecting into the cabinet interior, helping storage items slide or sit without catching on the hinge.
- The automatic closing angle of 35 degrees on this hinge means once the door reaches that point it continues closing under its own spring force, reducing the effort needed to bring the door fully shut on every cycle.
- The Silent System integrated into the hinge uses a damper to slow the final part of the closing motion, so the door does not slam against the cabinet and the impact on fronts and frames stays moderate over repeated use.
- A temperature stable damper rated from 41 F to 104 F keeps the soft-close action within its designed range across typical room and shop temperatures, which supports predictable closing speed during seasonal temperature changes.
Mounting, Cup geometry, And Adjustment Functions
This Sensys hinge uses a screw-on mounting method, so the hinge arm fastens directly to the mounting plate using screws for a secure mechanical connection. The hinge is specified for door thickness from 15 mm to 28 mm, allowing it to work across a common range of cabinet door builds from thinner fronts to heavier doors. A cup depth of 12.8 mm sets how deep to bore the hinge cup hole, helping the installer align boring depth to the hinge geometry for proper seating. Integrated overlay adjustment of plus 2 mm and minus 2 mm is built into the hinge, so the door position over the frame or panel can be shifted sideways after mounting to fine-tune the reveal. Integrated depth adjustment of plus 3 mm and minus 2 mm lets the door move toward or away from the cabinet, which helps align the front flush with adjacent faces. Height adjustment is handled at the mounting plate, which allows vertical fine-tuning of the door position in relation to neighboring doors or drawers.
Using This 45 Degree Sensys Hinge In Cabinet Projects
Where The Hettich 9088026 Hinge Fits Best
This Hettich 9088026 hinge is part of the Sensys line of European angled hinges, so it is suited to 45 degree angle face-frame or frameless cabinet layouts where doors meet angled fronts. Being a concealed cabinet hinge, it mounts inside the door with a cup and onto a mounting plate, keeping the hardware hidden when the door is closed and supporting a clean cabinet appearance. The hinge is designed for inset overlay at a 45 degree angle, which means the door edge sits within the frame or panel line on angled runs, matching the geometry called for in angled corner or transition cabinets. Steel construction with a nickel plated finish gives the hinge a metal body with a corrosion resistant surface, which suits typical interior woodworking environments. Quality classification under EN 15570 at Level 3 places this hinge in a tested performance class, so it is built for frequent door cycles common in everyday cabinet use.
Why Sensys Adjustments And Zero Protrusion Matter
The integrated overlay adjustment on this European concealed long arm hinge lets the door move plus 2 mm or minus 2 mm laterally, which gives flexibility to line up reveals when cabinet cases or doors vary slightly from layout. Integrated depth adjustment of plus 3 mm and minus 2 mm allows the door to be set closer to or farther from the front of the case, so the face of the door can align with adjacent doors, end panels, or appliance fronts. Height adjustment at the mounting plate adds another axis of control, enabling vertical alignment between stacked doors without re-boring or re-drilling the hinge cup. Zero protrusion means the hinge kinematics keep the hardware from jutting into the cabinet interior space, which supports the use of pull-out storage or full-depth shelves without interference at the hinge side. The automatic closing angle of 35 degrees combines with the Silent System damper, so once the door passes that angle it is pulled in and then gently slowed, leading to consistent closing and reduced impact on the cabinet case over time.
Common Questions About This Sensys Angled Hinge
What type of hinge is the Hettich 9088026?
The Hettich 9088026 is a Sensys European concealed long arm hinge, so it mounts in a cup in the door and onto a mounting plate, keeping the hardware hidden when the door is closed.
How far does this Sensys hinge open the cabinet door?
The Sensys 9088026 hinge has a 95 degree opening angle, allowing the door to swing open for access while controlling how far it projects into the room.
What door thickness range does this hinge support?
The hinge is specified for door thickness from 15 mm to 28 mm, covering a range from thinner doors to heavier cabinet fronts in many installations.
How does the integrated overlay adjustment help during installation?
The integrated overlay adjustment of plus 2 mm and minus 2 mm lets the installer shift the door sideways on the hinge, which helps align reveals between adjacent doors.
What is the purpose of the Silent System on this hinge?
The Silent System on this hinge is a damper that slows the final closing movement, reducing slamming and helping doors settle quietly against the cabinet.
In what temperature range does the damper function as specified?
The temperature stable damper is specified to operate from 41 F to 104 F, so the soft-close function remains within its designed range across normal room temperatures.
Selecting This Sensys Hinge For Angled Cabinet Runs
The Hettich Sensys soft close hinge with 95 degree opening and 45 degree angled configuration brings zero protrusion, integrated Silent System, and full three-way adjustment to inset angled cabinet doors. Door thickness coverage from 15 mm to 28 mm and a 12.8 mm cup depth let this hinge work across many cabinet door constructions while following standard boring practice. For angled face-frame or frameless cabinets where concealed, soft-closing motion and precise alignment are priorities, this Sensys 9088026 hinge offers the geometry and adjustment range to build consistent, quiet door motion across a full run.
