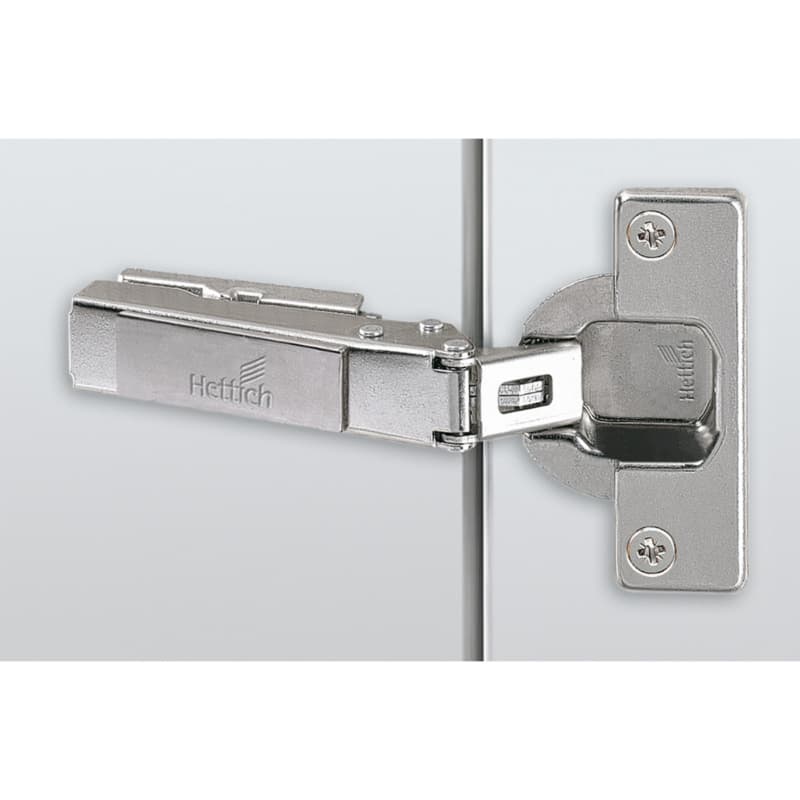

Hettich Intermat Self-Close Half Overlay Face-Frame;Frameless Hinges Nickel, 125° Dowel - 9044971

Hettich Intermat 125 Hinge For Concealed Doors

Hettich Intermat 125 hinge is a concealed cabinet hinge from the Intermat series designed for self-closing doors, so the door pulls to the closed position without separate catches on standard cabinet runs. This hinge is a concealed cabinet hinge for both face-frame and frameless construction, so it covers a wide range of common shop layouts using one hinge style. The hinge offers a 125 degree opening angle, which lets doors open beyond a right angle for better access to cabinet interiors during everyday use or installation adjustments. The cup diameter is 35mm, so it matches the standard European cup boring size used on many cabinet doors for straightforward drilling and consistent layout. A cup depth of 12.7mm supports boring into doors where that depth is appropriate, keeping the hinge seated while maintaining door strength around the cup.

Key Intermat Concealed Hinge Working Details

• The hinge provides self-close action, so the internal mechanism draws the door shut, which helps cabinet doors rest in the closed position without relying on separate closing devices in typical cabinet use.
• The 125 degree opening angle allows the door to swing past 90 degrees, giving more room to access cabinet interiors and hinge-side hardware during fitting, adjustment, or later service work.
• The hinge is part of the Intermat range described as easy to fit, which supports a straightforward installation sequence for shops and installers working through repetitive cabinet runs.
• The hinge is described as adjustable without effort, so overlay, depth, and height settings can be tuned on the job to refine reveals and door alignment after the doors are hung.
• The hinge is specified for door thickness from 15mm to 28mm, covering a spread of common cabinet door constructions so a single hinge type can be used across multiple door builds within that range.
• The cup diameter of 35mm and cup depth of 12.7mm match typical European boring operations, supporting predictable drill setups and repeatable results across multiple doors.

Mounting And Adjustment Details For Installers

This Intermat concealed cabinet hinge uses a 35mm cup with 12.7mm depth, so standard European boring equipment and bits can be used to drill the hinge cups in cabinet doors. The hinge is described as easy to fit, which supports streamlined installation workflows when hanging multiple doors in a run. Integrated overlay adjustment of plus 2mm to minus 2mm is built into the hinge, giving lateral movement at the door to move the edge gap relative to the cabinet front without re-drilling. Integrated depth adjustment of plus 2.5mm to minus 1.5mm lets the door move in and out relative to the cabinet, so the door face can be brought flush with adjacent fronts. Height adjustment is provided at the mounting plate, allowing vertical positioning of the door to even out reveals along the cabinet run.

Using This Hettich 9044971 Hinge In Cabinet Work

Where The Intermat Self Close Hinge Is Applied

This Intermat self close half overlay hinge is part of the concealed cabinet hinges class, so it is used where a hidden hinge is required on cabinet doors. The hinge is specified as suitable for both face-frame and frameless applications, so it serves in common kitchen, bath, and casework layouts that use either cabinet style. The hinge is noted as handy and versatile and can be used for any application, indicating it fits a broad range of cabinet door situations within its stated parameters. Door thickness from 15mm to 28mm is supported, which covers many plywood and solid front constructions in cabinet shops operating within metric or comparable ranges. Because the opening angle is 125 degrees, the hinge suits doors where increased access is beneficial while still using a compact concealed hinge format.

Why Intermat Adjustments Support Consistent Results

The Intermat 125 hinge provides integrated overlay adjustment of plus 2mm to minus 2mm, so lateral fine-tuning occurs at the hinge, allowing consistent reveals along cabinet fronts even when drilling or construction variances occur. Integrated depth adjustment of plus 2.5mm to minus 1.5mm lets the door move toward or away from the cabinet, so fronts can be aligned in plane across adjoining doors or next to drawer fronts. Height adjustment takes place at the mounting plate, giving vertical movement of the door to align top and bottom edges across a run without altering the door bore. The hinge is described as adjustable without effort, which reduces the time needed to dial in multiple doors because changes can be made directly at the hinge and plate. Quality classification under EN 15570, Level 2 places the hinge within a recognized European standard, so its performance is aligned with a documented level that supports repeatable function in normal cabinet service. These combined adjustment features and classification support consistent cabinet door alignment, reduced rework, and more efficient on-site or shop-based fitting when using this hinge across a project.

Common Questions About The Intermat 125 Hinge

Selecting The Intermat 125 Hinge For Your Project

The Hettich Intermat 125 hinge provides a concealed self-close solution with a 35mm cup, 12.7mm cup depth, and 125 degree opening angle, so it fits common drilling setups while giving generous door swing. Its support for door thickness from 15mm to 28mm, combined with its use on face-frame and frameless cabinets, lets one hinge address varied cabinet constructions. With integrated overlay, depth, and height adjustments plus EN 15570 Level 2 classification, this hinge supports consistent cabinet door alignment and documented performance across installations. For cabinet work needing a concealed self-close hinge with these specific dimensions and adjustment ranges, this Intermat 125 model is suited to production shops and serious installers.
