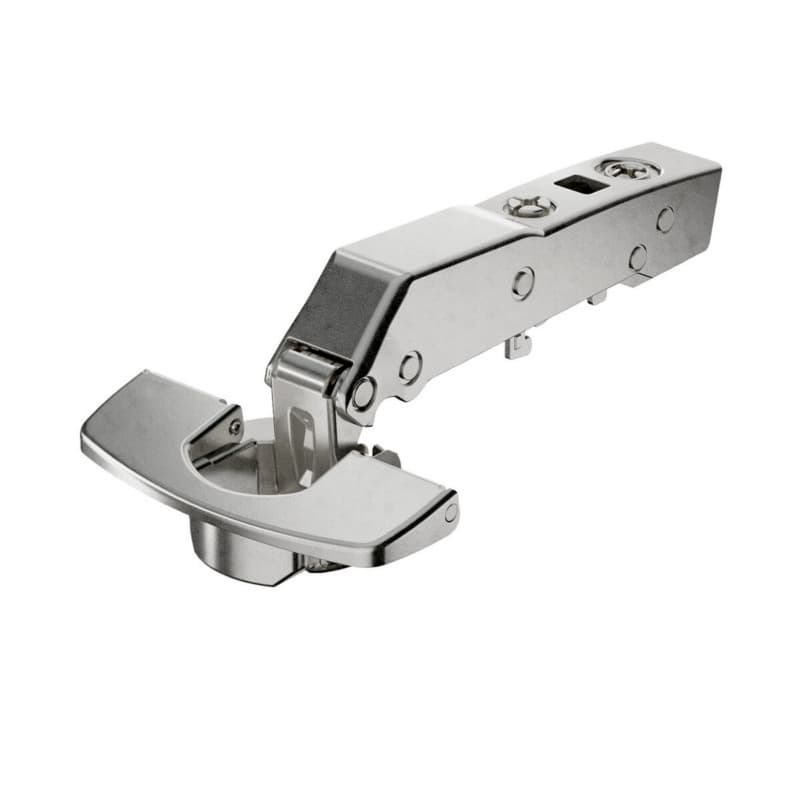

Hettich Sensys Soft-Close Hinge For Angled Doors
Hettich Sensys soft-close hinge is a concealed cabinet hinge designed as a zero protrusion hinge for optimum use of storage space on angled overlay doors. As a 95 degree hinge, it lets the door open to a controlled, functional angle that suits many cabinet layouts. The 45 degree angle face-frame;frameless description means it is built for angled overlay applications in both face-frame and frameless cabinet construction. The hinge is classified as a European angled hinge in the concealed long arm hinge family, so it works well where a clean exterior and hidden hardware are preferred. Nickel plating on the steel hinge gives a familiar cabinet hardware appearance, while supporting a consistent look across matching doors. The hinge belongs to Hettichs Sensys range, tying it to a proven concealed cabinet hinge platform.
Key Sensys 95 Degree Hinge Working Advantages
- The zero protrusion concealed hinge design keeps the hinge from projecting into the cabinet interior, which helps when fitting pull-out shelves or maximizing storage space behind the door.
- The wide automatic closing angle of 35 degrees pulls the door reliably into the closed position once it reaches that angle, which simplifies consistent door closing in everyday use.
- The temperature stable damper is rated for 41 F to 104 F (5 C to 40 C), so the soft-close function stays more consistent in normal room and shop temperature ranges.
- The hinge uses the Silent System from Hettich, which slows the door travel at the end of the swing, reducing door slam and helping protect cabinet fronts over time.
- The hinge is specified for door thickness from 15 mm to 28 mm, giving flexibility to work with a range of cabinet door materials and construction styles.
- The 12.8 mm cup depth matches common European boring equipment, which supports predictable drilling setups on production or jobsite machinery.
Installation And Adjustment Details For This Hinge
This Sensys 95 W45 hinge provides integrated overlay adjustment of plus 2 mm to minus 2 mm, which lets the installer shift the door position at the hinge side without re-boring. Integrated depth adjustment of plus 3 mm to minus 2 mm is built in, so the door can be moved in or out relative to the cabinet front for better alignment. Height adjustment is handled at the mounting plate, providing vertical tuning to align door tops and bottoms across a run. These built-in adjustments reduce rework during door fitting, since fine-tuning can be done with tools at the hinge rather than altering the cabinet or door. The concealed design keeps these adjustment points hidden when the door is closed, maintaining a clean cabinet appearance while still supporting precise setup.
Using The Hettich 9088078 Hinge In Cabinet Projects
Where This Angled Overlay Hinge Is Applied
The product is described as an overlay 45 degree angle face-frame;frameless hinge, so it is intended for angled overlay doors built into both face-frame and frameless cabinets. That angled configuration helps on corner units or cabinets where doors meet at an angle, giving a consistent door reveal while still honoring the 95 degree opening function. As a concealed cabinet hinge in the European angled hinge category, it suits jobs where hardware needs to stay hidden inside the cabinet line while delivering full function. Zero protrusion behavior is valuable in cabinets that use interior roll-outs or organizers, because the open door does not intrude into the pull-out path. The nickel plated steel construction ties neatly into typical cabinet hardware finishes, which can be helpful when the project uses other nickel components nearby.
Why Sensys Adjustments And Silent System Matter
The Sensys hinge integrates overlay adjustment of plus 2 mm to minus 2 mm directly into the hinge body, which makes it easier to dial in even reveals along the hinge side of the door. Depth adjustment of plus 3 mm to minus 2 mm lets the door sit flush or slightly proud as needed, improving visual alignment across multiple doors in a bank. Height adjustment at the mounting plate supports small vertical shifts, so doors can be leveled without altering the carcass or door edge. These three adjustment axes work together to speed the fitting process, especially on multi-door installations. The Silent System is built into the hinge, adding a soft-close damper that works within the 41 F to 104 F (5 C to 40 C) temperature band. That temperature stable damper supports a predictable closing feel in typical indoor environments. Coupled with the wide automatic closing angle of 35 degrees, the hinge helps swing doors smoothly into their closed position with reduced impact on the cabinet.
Common Questions About This Sensys 95 Degree Hinge
What type of hinge is the Hettich 9088078?
The Hettich 9088078 is a Sensys zero protrusion concealed cabinet hinge with a 95 degree opening angle, so it stays hidden while allowing a functional door swing for many cabinet layouts.
How does the 35 degree automatic closing angle help?
The hinge has a wide automatic closing angle of 35 degrees, which means once the door passes that point it is pulled into the closed position, supporting consistent closure across doors.
What door thickness range does this hinge handle?
The hinge is specified for door thickness from 15 mm to 28 mm, allowing it to work with a variety of cabinet door constructions within that range.
How do the overlay and depth adjustments support alignment?
The hinge offers overlay adjustment of plus 2 mm to minus 2 mm and depth adjustment of plus 3 mm to minus 2 mm, so doors can be shifted sideways and in-out for precise alignment.
What is the benefit of the temperature stable damper?
The damper is rated from 41 F to 104 F (5 C to 40 C), so the soft-close Silent System maintains a more consistent damping effect in typical indoor conditions.
How does the zero protrusion design affect cabinet interiors?
The zero protrusion concealed hinge design keeps the open hinge out of the cabinet interior, which helps when using pull-out shelves or interior organizers behind the door.
Selecting This Sensys Hinge For Your Next Run
The Sensys 95 W45 W/SISY,OVERLY,SFTCL,FXFAST hinge from Hettich America Corporation combines 95 degree opening, Silent System soft-close, and zero protrusion behavior in a European angled concealed hinge. Adjustable overlay, depth, and height functions support clean reveals and aligned door faces across both face-frame and frameless cabinet work. The specified 15 mm to 28 mm door thickness range, 12.8 mm cup depth, and temperature stable damper make this hinge a practical choice when planning angled overlay doors around interior storage solutions.
