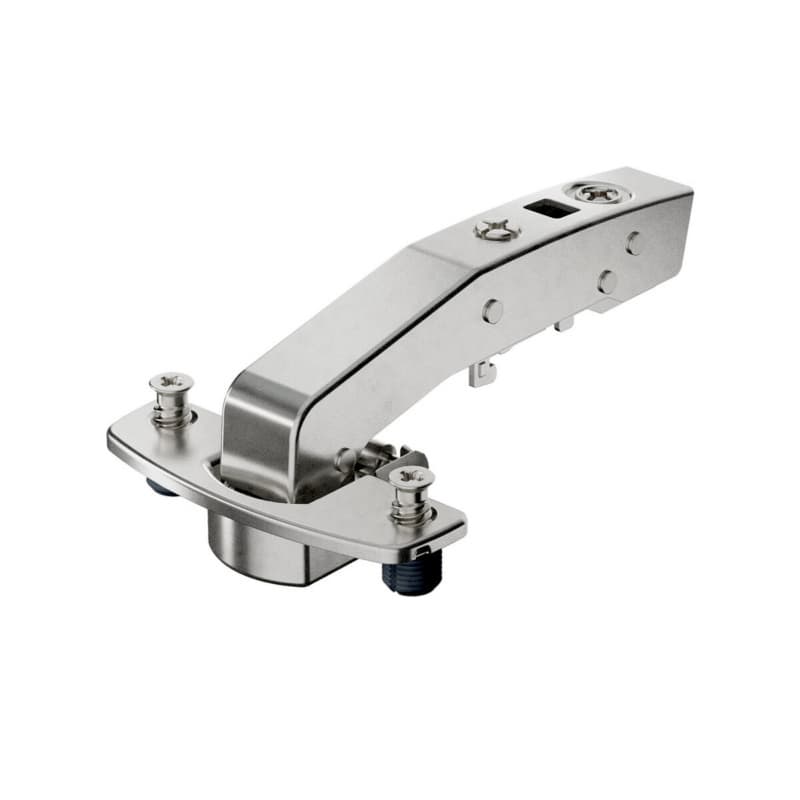

Hettich Sensys Soft-Close Silent System Inset Overlay 90° Angle Face-Frame;Frameless Hinges Nickel, 95° Dowel - 9088093

Hettich Sensys Soft-Close Hinge For Cabinet Doors

Hettich Sensys soft-close hinge is a concealed cabinet hinge designed as a zero protrusion hinge for optimum use of storage space, so shelves and contents can extend fully without the hinge arm projecting into the interior. This hinge works as a concealed cabinet hinge in the European concealed long arm hinge family, which lets doors present a clean exterior while the hardware remains hidden inside the cabinet line. The hinge operates at a 95 degree opening angle, so doors open wide for access while staying controlled for adjacent fronts. A wide automatic closing angle of 35 degrees pulls the door closed smoothly once it passes that point, which reduces slamming in everyday use. The hinge is specified as an inset overlay 90 degree angle solution for face-frame and frameless construction, addressing both common cabinet builds with one hinge model.

Key Sensys Hinge Details That Support Use

• The zero protrusion concealed hinge design keeps the hinge out of the cabinet interior space, which protects clearances for pull-out trays and full-depth shelving layouts during cabinet planning.
• The wide automatic closing angle of 35 degrees actively draws the door shut after that point, which helps doors close consistently without relying on users to push them fully home every time.
• The Silent System function adds soft-close damping to the hinge motion, which slows final door travel and reduces impact noise when doors reach the cabinet front.
• The temperature stable damper is rated for a range from 41 F to 104 F, so the soft-close behavior remains more consistent across typical room and workshop temperatures.
• The concealed hinge belongs to the Sensys family from Hettich, which gives installers a familiar adjustment layout and movement profile across related cabinet door hinge positions.

Installation And Adjustment Details For This Hinge

This Sensys concealed hinge is designed with a cup depth of 12.8 mm, so door boring operations can follow that depth target for a proper fit in the door. The hinge supports door thickness from 15 mm to 28 mm, which covers common cabinet door construction in both lighter and heavier fronts. Integrated overlay adjustment of plus 2 mm and minus 2 mm lets the door overlay be shifted directly at the hinge, so reveals can be tuned without changing the door or cabinet. Integrated depth adjustment of plus 3 mm and minus 2 mm allows the door to move in and out relative to the cabinet front, which helps align door faces flush across a run. Height adjustment is provided at the mounting plate, so vertical gaps between doors can be set consistently along the cabinet.

How This Sensys Concealed Hinge Works In Practice

Using The Hinge On Face-Frame Or Frameless Cabinets

This Sensys soft-close hinge is described for inset overlay 90 degree angle face-frame and frameless hinges, so it addresses projects using either cabinet style with one hinge platform. Inset overlay language indicates the hinge is suitable where the door position relates closely to the frame or cabinet front line, so the hinge geometry works with those layouts. The concealed long arm hinge format places the hinge inside the cabinet case, so the door exterior remains free of visible hinge hardware in both face-frame and frameless constructions. Because it is a zero protrusion hinge, interior pull-outs and shelves can run close to the door line even in frameless cabinets, so storage space is used more efficiently. The 95 degree opening range provides clear access to cabinet interiors while limiting how far the door swings into adjacent traffic or hardware zones.

Adjustment, Movement, And Service Life Considerations

The integrated overlay adjustment of plus 2 mm and minus 2 mm allows fine side-to-side positioning at the hinge, so installers can align doors against neighboring fronts without redrilling. Integrated depth adjustment of plus 3 mm and minus 2 mm provides front-to-back movement, so door faces can be brought flush with surrounding cabinets or adjusted to clear neighboring components. Height adjustment at the mounting plate gives vertical control over the door position, so top and bottom gaps can be matched across a bank of cabinets. The Silent System soft-close damper inside the hinge controls closing speed, so even heavier doors within the allowed thickness range from 15 mm to 28 mm settle against the cabinet front in a controlled motion. The temperature stable damper rating from 41 F to 104 F supports consistent soft-close behavior in typical indoor environments. The hinge carries a quality classification under EN 15570, Level 3, which identifies its tested performance category in a recognized standard for concealable hinges.

Common Questions About This Hettich Sensys Hinge

Select This Soft-Close Hinge For Precise Cabinet Work

This Hettich Sensys soft-close hinge pairs zero protrusion geometry with a 95 degree opening angle, so cabinets gain full interior use and controlled access. With door thickness support from 15 mm to 28 mm and a cup depth of 12.8 mm, it fits many cabinet doors. Integrated overlay, depth, and height adjustments give installers direct control over reveals and alignment, which supports clean runs of doors in both face-frame and frameless layouts. The Silent System damper operates within a 41 F to 104 F range, so soft-close behavior remains stable in typical indoor environments. For projects needing a concealed cabinet hinge that manages movement and alignment within tested parameters such as EN 15570, Level 3, this Sensys model offers a focused solution.
