Sensys Hinges For Efficient Cabinet Storage

Sensys hinges from Hettich are a zero protrusion concealed hinge that lets interior storage space be used efficiently because the hinge arm stays clear of drawers and rollouts when the door is open. The concealed cabinet hinge design keeps the hardware out of sight while the door operates, which is useful on both face-frame and frameless cabinetry where a clean exterior is wanted. These European angled hinges are specified as a 95 degree hinge, so the door opens to a controlled angle that suits typical cabinet runs without over-swinging into adjacent components. The hinge belongs to the concealed cabinet hinges product class, giving installers a familiar cup-and-arm layout while still providing the angled application described in the product name. The soft-close Silent System described in the web description is built into this hinge, so doors move to the closed position smoothly.

Practical Sensys Hinge Details That Matter On Site

• The zero protrusion design described in the web description keeps the hinge arm from projecting into the cabinet interior at full opening, which helps layout of pullouts, trays, and storage close behind the door.
• The wide automatic closing angle of 35 degrees noted in the web description pulls the door closed from a relatively open position, which reduces the need to push doors fully shut during everyday use.
• The temperature stable damper rated for 41 F to 104 F in the web description keeps the soft-close action consistent across common room conditions, which supports predictable door motion in typical shop-built and installed cabinetry.
• The integrated Silent System stated in the description supplies the soft-close function inside the hinge body, which avoids separate damper parts and keeps installation centered on the standard hinge positions.
• The hinge is described as a zero protrusion concealed hinge that is perfect for optimum use of storage space, so cabinet interiors can be planned tightly around drawers, organizers, and shelves without hinge interference.

Hettich Sensys Hinge Adjustment And Setup

The web description specifies an integrated overlay adjustment of plus 2mm and minus 2mm, which gives side-to-side door movement at the hinge for fine-tuning reveal lines after doors are hung. An integrated depth adjustment of plus 3mm and minus 2mm is also listed, so the door can be brought closer to or farther from the cabinet front to match neighboring doors and frameless gables. Height adjustment is specified at the mounting plate, which lets vertical alignment be handled at the plate interface instead of resetting hinge cup positions in the door. Together, these adjustments streamline onsite fitting, because the cup holes can be drilled once and final alignment handled on the hardware.

Using This 95 Degree Zero Protrusion Hinge Well

Inset And Angled Cabinet Door Applications

The product name identifies this hinge as an inset overlay 90 degree angle face-frame and frameless hinge, which indicates it is intended for angled cabinet conditions where the door sits inset relative to the frame or front. That angled description allows this Sensys concealed hinge to be specified for corner or angled front cabinets that call for a defined opening geometry. The 95 degree designation in the name and description means the door opens slightly beyond a right angle, which gives better access to cabinet interiors while still keeping the door controlled around adjacent runs. Being in the European angled hinges category, the hinge fits into projects where a long-arm European cup hinge is needed but the cabinet body is not a simple 90 degree box. The zero protrusion behavior described in the web text further supports these angled installations because interior pullouts can travel past the hinge position without clashing with the hinge arm at full opening.

Adjustment, Durability, And Cabinet Workflow

The listed door thickness range of 15mm to 28mm defines where this hinge cup works properly in standard cabinet doors, which covers many common panel constructions used by professional shops. Cup depth is specified at 12.8mm in the description, so boring operations can be set to that depth for repeatable results across production runs. Integrated overlay and depth adjustments described as plus 2mm or minus 2mm for overlay and plus 3mm or minus 2mm for depth give installers enough travel to align doors to nearby fronts without redrilling hinge cups. Height adjustment at the mounting plate moves the door vertically along the cabinet side or frame, which protects the door edge from unnecessary rework when shifting reveals. The hinge is classified to quality classification under EN 15570, Level 3, which identifies it as tested to a recognized European standard so its performance can be matched to project expectations. The steel nickel plated construction listed in the description provides a hard-wearing hinge body and a neutral metallic finish that fits typical cabinet hardware programs.

Common Questions About This Sensys Cabinet Hinge

Select This Sensys Hinge For Precise Cabinet Work

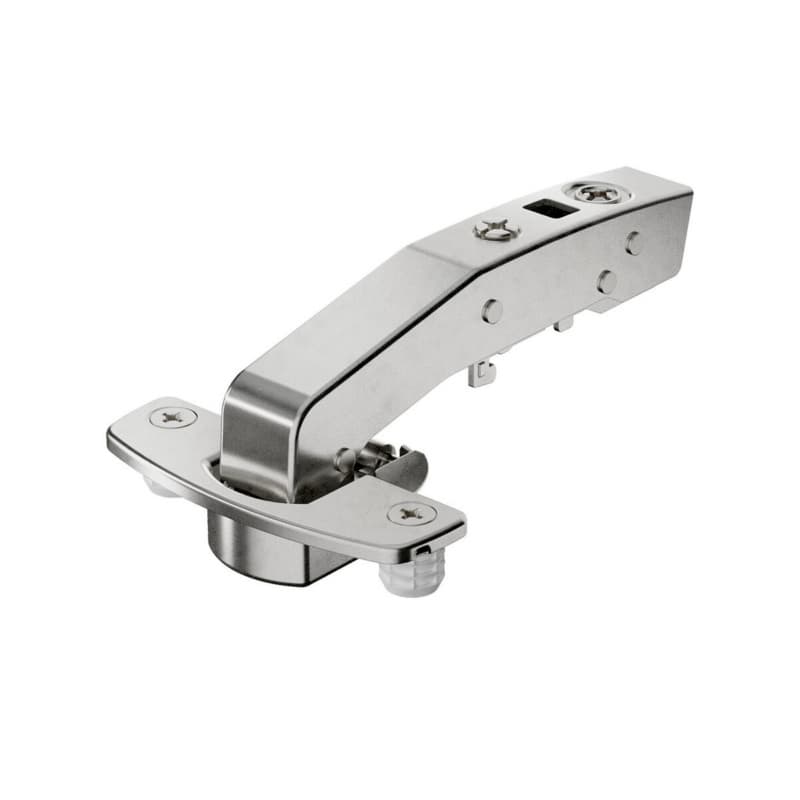

The SAP description and web description identify this product as Hettich Sensys 95 W90 with Silent System soft-close and dowel fixing, giving a defined 95 degree concealed hinge solution for inset and angled cabinet doors. With zero protrusion operation, automatic closing from 35 degrees, and integrated overlay, depth, and height adjustments, this hinge supports tidy reveals and smooth motion in both face-frame and frameless projects. The EN 15570 Level 3 classification and steel nickel plated construction described in the product data align it with demanding cabinet applications. Choose this 9088045 Sensys hinge when a zero protrusion, temperature stable soft-close concealed hinge is needed for efficient storage layouts.
