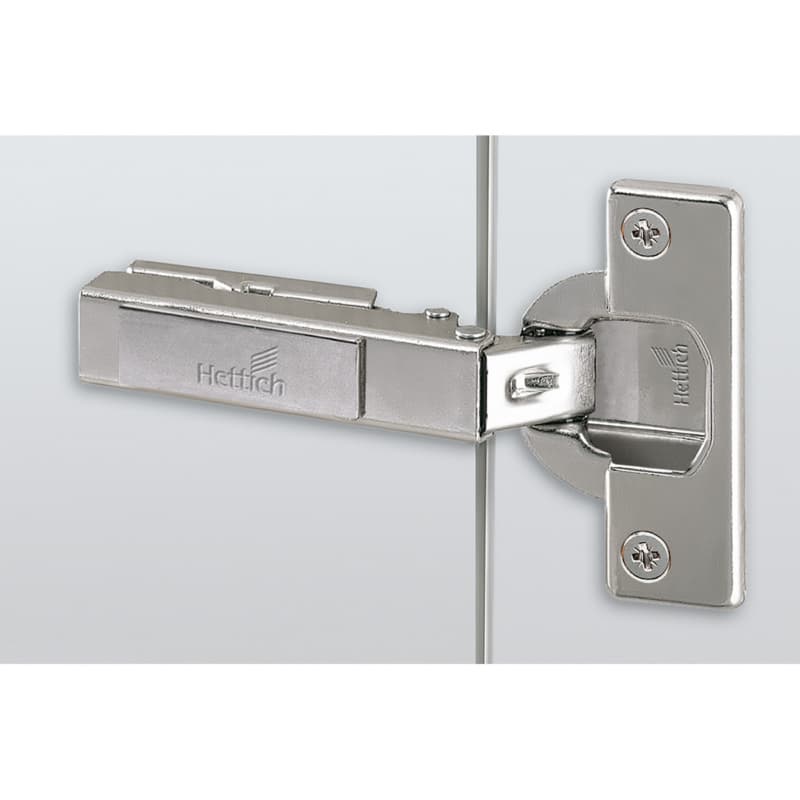

Hettich Intermat Self-Close Hinge For Concealed Doors

Hettich Intermat self-close hinge is a concealed cabinet hinge designed for full overlay doors on face-frame or frameless cabinets, so doors cover the cabinet front while keeping the hinge out of sight for a clean, modern look. As a European concealed long arm hinge in a 110 degree opening version, it provides wide access into the cabinet while maintaining controlled travel at the door. The 35mm cup diameter seats into a standard European hinge bore, so it fits common cabinet drilling patterns used in many shops. A cup depth of 11.6mm lets the cup sit securely in the door material, supporting stable door movement. The hinge is nickel finished, giving the component a professional metal appearance that matches other nickel cabinet hardware. As a concealed cabinet hinge, it supports projects where hardware needs to function smoothly while remaining discreet.

Key Hettich 9043643 Details For Cabinet Projects

• The hinge is specified for door thickness from 15 to 25mm, so it covers a typical range of cabinet doors and helps maintain consistent mounting across different fronts in the same run.
• A 35mm cup diameter provides a familiar boring dimension, allowing use of standard 35mm boring heads and jigs in the shop for repeatable door preparation.
• The 11.6mm cup depth sets a predictable recess, which helps align the hinge arm geometry and supports accurate overlay and reveal control on finished installations.
• Integrated overlay adjustment of plus 2mm or minus 2mm lets the door shift side-to-side at the hinge, so small case or drilling variations can be corrected after hanging.
• Integrated depth adjustment of plus 2.5mm or minus 1.5mm allows the door to move toward or away from the cabinet, helping tune the gap at the front edge for a cleaner line.
• Height adjustment at the mounting plate gives vertical movement at the hinge connection, so top and bottom reveals can be aligned across multiple doors on a cabinet run.

Mounting And Adjustment For Full Overlay Cabinet Doors

This self-close full overlay hinge is designed for both face-frame and frameless cabinets, so it can be used across different construction styles in the same workspace. The hinge geometry supports a full overlay application, where the door overlays the cabinet front rather than sitting inset, giving a continuous front surface when multiple doors are aligned. Integrated overlay adjustment of plus 2mm or minus 2mm is built into the hinge, allowing the installed door to shift laterally relative to the cabinet side, which is useful when case parts vary slightly from the drawing. Integrated depth adjustment of plus 2.5mm or minus 1.5mm is also provided at the hinge, so the door position at the front edge can be set to line up with adjacent doors or drawer fronts. Height adjustment occurs at the mounting plate interface, giving vertical tuning at the hinge connection and allowing consistent reveals at the top and bottom edges of each door.

Using This European Standard Hinge In Cabinet Work

Where This Concealed Cabinet Hinge Performs Best

This concealed cabinet hinge is classified as a European standard hinge, so it fits typical European cabinet construction where hinges are hidden and doors overlay the front. Its use on face-frame or frameless cabinets lets it serve in shops that handle both construction types without changing hinge families. A 35mm cup diameter matches standard hinge boring patterns, so it fits cabinet doors prepared with European hinge drills in common production setups. The 11.6mm cup depth gives enough room for the hinge cup within the door thickness range of 15 to 25mm, supporting secure seating without over-thinning the remaining material. The 110 degree opening angle provides generous access into the cabinet interior, which benefits base, wall, or utility cabinets that need wider door swing for loading and access. Being a concealed cabinet hinge, it keeps the hinge mechanism hidden when the door is closed, supporting clean-faced kitchen, bath, and casework designs that rely on uninterrupted door fronts.

Why Integrated Adjustments Matter For Repeatable Results

Integrated overlay adjustment of plus 2mm or minus 2mm on this hinge lets installers shift the door sideways at each hinge position, making it practical to straighten reveals when cabinets or doors are slightly out of square. The integrated depth adjustment of plus 2.5mm or minus 1.5mm allows the door to move toward or away from the cabinet front, which helps keep door faces flush with neighboring doors or panels for a consistent look along a run. Height adjustment at the mounting plate allows vertical tuning at the hinge connection, so doors can be raised or lowered to align top edges and bottom edges without re-drilling. Quality classification under EN 15570, Level 2, defines the hinge performance level under that European standard, giving a reference point for how the hinge is engineered to operate in long-term cabinet use. As a self-close full overlay hinge, it is part of a hardware system that brings the door to the closed position, supporting everyday cabinet operation in residential or commercial environments.

Common Questions About The Intermat 110 Hinge Details

Select This Hinge For Adjustable Full Overlay Doors

The Intermat 110 hinge SC full 45mm EXP DWL with 35mm cup diameter, 11.6mm cup depth, and self-close full overlay geometry offers a concealed solution for face-frame or frameless cabinets. Door thickness coverage from 15 to 25mm, combined with integrated overlay and depth adjustments and height adjustment at the mounting plate, provides tuning capability after doors are hung. With quality classification under EN 15570, Level 2, and a 110 degree opening angle, this Hettich Intermat self-close hinge is suited to projects that call for European concealed long arm hinges with defined performance and precise door alignment.
