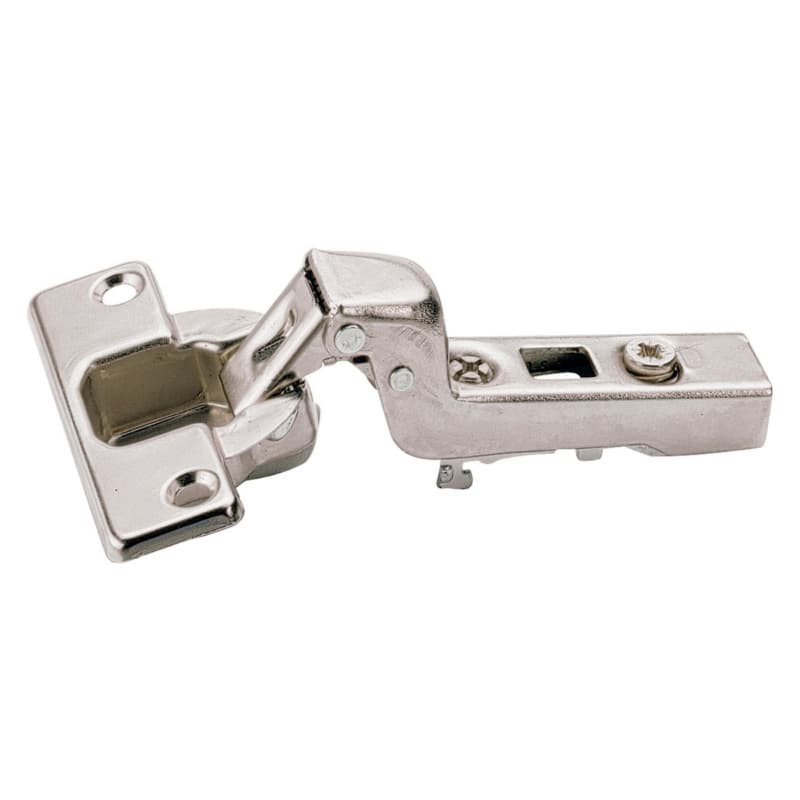

Hettich Intermat Self-Close Hinge For Precise Doors
Hettich Intermat self-close hinge gives you a concealed cabinet hinge solution built around a 35mm cup diameter and 11.6mm cup depth, so it matches standard European hinge boring and lets you keep consistent drilling patterns across a run of doors. Designed for door thickness 15 - 25mm, it covers common cabinet door materials in both lighter and heavier builds, letting you spec one hinge style across multiple projects where that thickness range is used. The 110 degree opening angle works well for everyday cabinet access while keeping the door movement controlled around adjacent fronts and walls. As a concealed cabinet hinge in nickel finish, it supports a clean exterior look while the working hardware stays inside the cabinet line. The hinge design serves both face-frame and frameless applications where an inset or overlay configuration is required in the layout.
Key Hinge Details That Support Cabinet Work
- The 35mm cup diameter and 11.6mm cup depth give you a known drilling pattern, so line boring or jig setups can remain stable from cabinet to cabinet.
- The 15 - 25mm door thickness range means the same hinge model can be used on various door constructions within that band, simplifying planning across a job.
- The 110 degree opening angle sets a predictable swing for doors, which helps when aligning cabinets near corners, appliances, or side panels in tight layouts.
- Integrated overlay adjustment of plus or minus 2mm provides sideways correction at the hinge, allowing you to true up reveals without altering door size.
- Integrated depth adjustment of plus 2.5mm and minus 1.5mm lets you move the door in and out at the hinge side, improving alignment with face-frames or cabinet fronts.
- Height adjustment at the mounting plate gives vertical fine-tuning, helping you maintain straight horizontal lines across multiple doors along a cabinet run.
- Quality classification under EN 15570, Level 2 signals tested performance characteristics, which matters where hinge function is expected to remain stable in regular cabinet use.
Hinge Mounting, Adjustment, And Fit In Practice
The 35mm cup diameter with 11.6mm cup depth sets the basic interface between the hinge and the door, so boring depth and edge setback can be dialed in once and repeated across all 15 - 25mm doors on the job. With integrated overlay adjustment of plus or minus 2mm built into the hinge, you can shift the door sideways at the hardware rather than modifying the cabinet, which saves time when chasing uniform gaps. Integrated depth adjustment of plus 2.5mm and minus 1.5mm handles in-and-out alignment at the hinge side, letting you bring the door face flush to the cabinet front in both face-frame and frameless layouts. Height adjustment at the mounting plate adds vertical tuning, which is particularly helpful on tall doors or multi-door stacks where even a small offset can look exaggerated once installed.
Using This Concealed Cabinet Hinge On Projects
Where This European Concealed Hinge Fits Best
This concealed cabinet hinge belongs to the European concealed long arm hinge family and sits within the European standard hinges category, so it works naturally in cabinet programs already set up around 35mm cup boring and hidden hardware. With a 110 degree opening angle, it suits wall and base cabinets where a broad but controlled swing is useful, such as kitchen, bath, or storage runs that share common sight lines. Door thickness coverage from 15 - 25mm means it can be used across different panel materials and cores that fall in that band, allowing a single hinge style to align with multiple construction methods. As a concealed cabinet hinge class product with a nickel finish, it keeps hardware out of view when the door is shut, which supports clean cabinet fronts in both residential and commercial settings. The self-close feature in the Intermat hinge helps bring the door back toward the frame when near closed, supporting consistent closure behavior across doors built around the same hardware specification.
Why These Intermat 9046807 Details Matter
The INTERMAT 110 HING SC INST 45MM SCREW ON designation and manufacturer part 9046807 tie the hinge to a defined specification, which is important when repeating the same setup for future jobs or replacements. Integrated overlay adjustment of plus or minus 2mm, combined with depth adjustment of plus 2.5mm and minus 1.5mm, gives three-dimensional control at the hinge side, so fine-tuning reveals, flushness, and door attitude happens mechanically instead of through rework of cabinets or doors. Height adjustment at the mounting plate supports aligning door tops and bottoms across wide cabinet runs, reducing visible step-ups between neighboring fronts. Quality classification under EN 15570, Level 2 indicates the hinge is assessed to a recognized standard level, which matters where predictable hinge behavior is part of the project requirement. As a screw-on style hinge, it attaches using screws through the hinge components, providing a direct mechanical connection that is familiar in cabinet construction workflows.
Common Questions About This Intermat Cabinet Hinge
What door thickness range does this hinge support?
The hinge is specified for door thickness 15 - 25mm, so it covers many cabinet door constructions that fall within that material thickness range.
What boring size and depth are required for the hinge cup?
The hinge uses a 35mm cup diameter with 11.6mm cup depth, which matches standard European concealed hinge boring patterns for many cabinet doors.
How far does the Hettich Intermat hinge open?
The hinge has a 110 degree opening angle, giving a wide door swing suitable for typical cabinet access in kitchens, baths, and storage areas.
What adjustments are built into this concealed hinge?
The hinge provides integrated overlay adjustment plus or minus 2mm, depth adjustment plus 2.5mm and minus 1.5mm, and height adjustment at the mounting plate.
How does the EN 15570 Level 2 classification relate to use?
The quality classification under EN 15570, Level 2 means the hinge performance is assessed to that standard level for typical cabinet applications.
What type of cabinet hinge is the 9046807 model?
The 9046807 model is a concealed cabinet hinge in the European standard hinge and European concealed long arm hinge category for hidden-door applications.
Selecting This Hettich Hinge For Your Cabinets
This Hettich Intermat self-close hinge combines a 35mm cup diameter, 11.6mm cup depth, and a door thickness range of 15 - 25mm, giving you a defined working window for cabinet door construction. With integrated overlay and depth adjustments plus height adjustment at the mounting plate, the hinge supports fine-tuning reveals and alignment on both face-frame and frameless cabinets. The 110 degree opening angle and concealed cabinet hinge design help deliver functional access and a clean exterior look around kitchens, baths, and storage runs. With the INTERMAT 110 HING SC INST 45MM SCREW ON 9046807 specification and EN 15570, Level 2 classification, it fits projects where a known European standard hinge setup is part of the cabinet plan.
