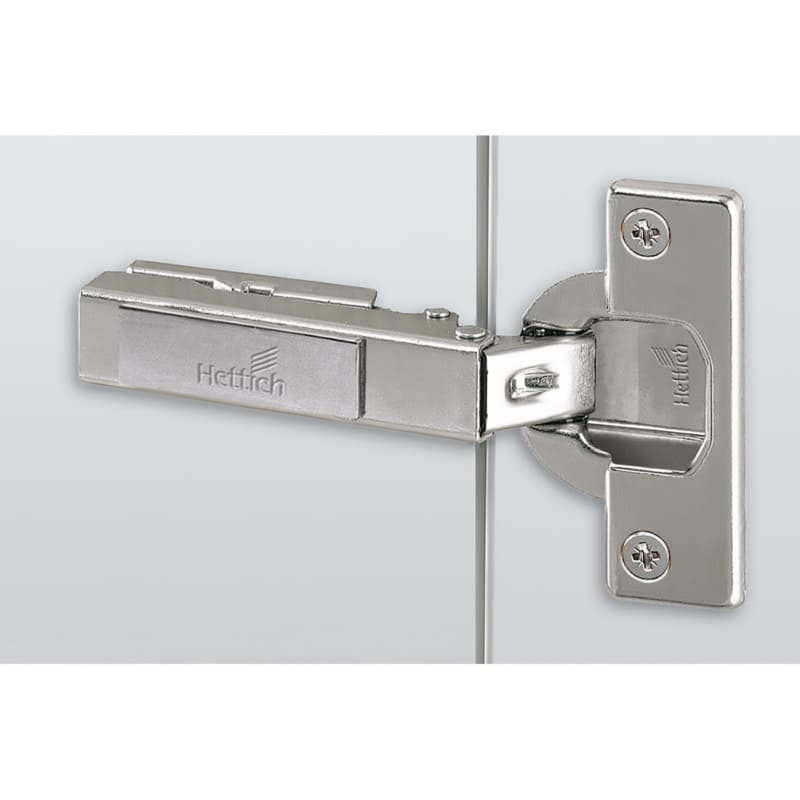

Hettich Intermat Self-Close Hinge For Cabinet Doors
Hettich Intermat self-close hinge is a concealed cabinet hinge designed for inset and overlay applications on face-frame and frameless cabinets, so one hinge style can support different cabinet constructions in a shop or on a job. The hinge offers a 110 degree opening angle, giving doors a wide swing that helps with access during installation and in daily use. A 35mm cup diameter fits standard European hinge boring, allowing straightforward drilling setups. The 11.6mm cup depth supports typical cabinet door construction while keeping material removal predictable. The hinge works with door thickness from 15 to 25mm, covering many common cabinet door builds. Integrated self-closing action pulls the door shut at the end of travel for consistent closing without separate hardware. As a concealed cabinet hinge, it keeps hardware hidden once the door is mounted, supporting clean cabinet fronts.
Key Hinge Details That Support Cabinet Work
- The 110 degree opening angle provides wide door swing, helping with interior access for adjustments and day-to-day cabinet use.
- The 35mm cup diameter matches standard European boring patterns, simplifying drilling setups and hinge cup machining on doors.
- The 11.6mm cup depth keeps boring depth consistent, supporting repeatable drilling and reducing risk of breaching the door face.
- The hinge fits door thickness from 15 to 25mm, covering many cabinet door materials and allowing flexibility in design choices.
- Integrated overlay adjustment of plus 2mm minus 2mm lets the door position be shifted on the hinge side, helping align reveals.
- Integrated depth adjustment of plus 2.5mm minus 1.5mm allows the door-to-cabinet gap to be tuned, improving fit at the front edge.
- Height adjustment at the mounting plate provides vertical fine-tuning, helping bring multiple doors into line across a run.
- Quality classification under EN 15570 Level 2 indicates the hinge is tested to a recognized standard, supporting consistent performance expectations.
Installation And Adjustment Details For This Hinge
This concealed cabinet hinge uses a 35mm cup diameter with 11.6mm cup depth, so drilling operations can follow standard European hinge boring setups for efficient production. The 15 to 25mm door thickness range allows the same hinge to be applied across many cabinet lines without changing drilling programs. Integrated overlay adjustment of plus 2mm minus 2mm lets the hinge side of the door shift laterally, which supports aligning reveals where cabinets meet. Integrated depth adjustment of plus 2.5mm minus 1.5mm moves the door in and out relative to the cabinet front, helping set the door plane against adjacent cabinets or panels. Height adjustment at the mounting plate adds vertical control after mounting, so small variations in drilling or door size can be corrected without rework.
Using The Intermat 110 Hinge In Cabinet Projects
Where This Concealed Cabinet Hinge Fits Best
This Hettich concealed cabinet hinge is specified for door thickness from 15 to 25mm, so it suits many cabinet door constructions used in residential and commercial woodworking. The 110 degree opening angle supports installations where wider access to cabinet interiors is helpful, such as base cabinets or storage units. Because the hinge is a concealed cabinet hinge for inset and overlay face-frame and frameless cabinets, it can be used across different cabinet box styles while keeping a consistent hinge family. The 35mm cup diameter aligns with common CNC and line-boring patterns, supporting efficient production runs. With an 11.6mm cup depth, the boring depth remains controlled, which is useful when working with doors where face material thickness needs to be preserved. The hinge design keeps hardware hidden when the door is closed, helping cabinets present a clean front.
Why The Intermat 110 Adjustments Matter In Use
The integrated overlay adjustment of plus 2mm minus 2mm gives lateral movement at the hinge, allowing the door edge to be brought into alignment with adjacent doors or cabinet sides without remounting. Integrated depth adjustment of plus 2.5mm minus 1.5mm sets the door-to-front gap, which helps keep doors flush with surrounding fronts or panels. Height adjustment at the mounting plate provides vertical fine-tuning, which is useful for correcting small variances in boring position or door size along a multi-door run. This combination of overlay, depth, and height adjustments lets installers dial in reveals, gaps, and alignment using the hinge hardware itself. Quality classification under EN 15570 Level 2 indicates the hinge has been evaluated to a recognized European standard, supporting confidence in hinge performance over repeated openings and closings.
Common Questions About The Intermat 110 Hinge 1030925
What door thickness range does this hinge support?
The Hettich Intermat self-close hinge is specified for door thickness from 15 to 25mm, covering many typical cabinet door materials and allowing one hinge to serve different door builds.
What boring dimensions are required for the hinge cup?
The hinge uses a 35mm cup diameter with 11.6mm cup depth, so standard European hinge boring equipment and settings can be used for door preparation.
How far does the door open with this cabinet hinge?
The Intermat 110 hinge provides a 110 degree opening angle, giving the door a wide swing that aids cabinet interior access and hinge adjustment.
What adjustments are built into this concealed hinge?
The hinge offers integrated overlay adjustment plus 2mm minus 2mm, integrated depth adjustment plus 2.5mm minus 1.5mm, and height adjustment at the mounting plate for alignment.
What does the EN 15570 Level 2 classification indicate?
The EN 15570 Level 2 classification shows the hinge is quality classified under this European standard, supporting consistent performance expectations in cabinet applications.
What is the manufacturer part number for this Intermat hinge?
The manufacturer part number is 1030925, which identifies this specific Intermat 110 self-close hinge configuration for ordering and project documentation.
Selecting This Hettich Hinge For Cabinet Projects
The Hettich Intermat self-close hinge with 110 degree opening angle and 35mm cup diameter offers a concealed solution for cabinet doors from 15 to 25mm thick. Integrated overlay, depth, and height adjustments support precise reveal and gap alignment on face-frame and frameless cabinets. Quality classification under EN 15570 Level 2 supports confident use in regular cabinet service. For projects needing a concealed cabinet hinge with adjustable fitting on standard 35mm boring patterns, this Intermat 110 configuration provides a job-focused option.
