Hettich Intermat 110 Hinge For Concealed Cabinet Doors

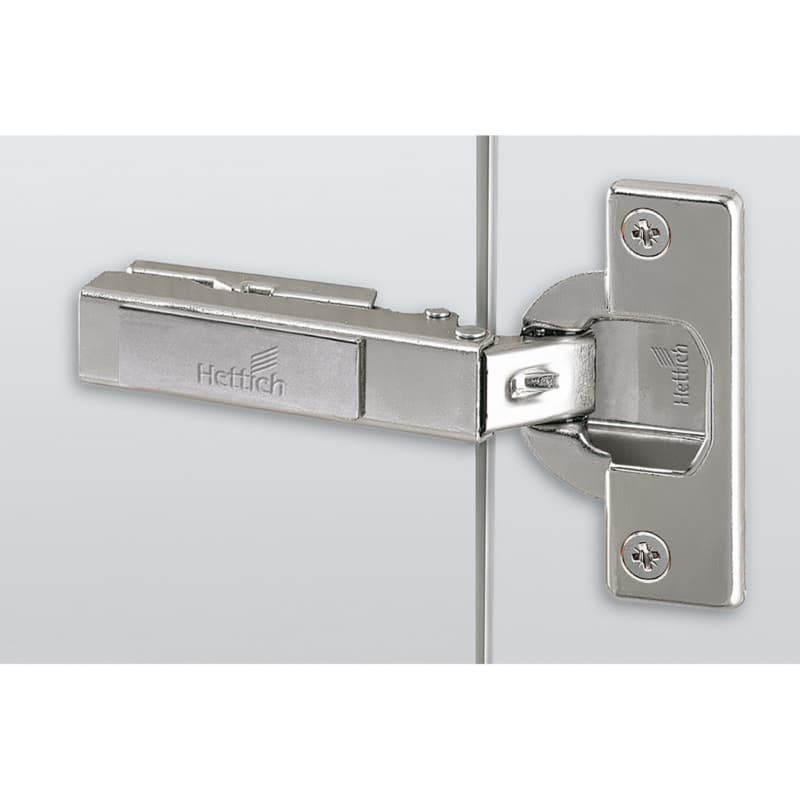

Hettich Intermat 110 hinge gives a concealed hinge solution for cabinet doors where a clean look and consistent swing are required. This concealed cabinet hinge from Hettich America Corporation is designed for doors within a specific thickness range, so doors seat correctly and operate as intended on both face-frame and frameless cabinets when used in the proper application.
The hinge is specified for door thickness from 15mm to 25mm, which sets clear limits for door construction and helps avoid problems caused by over-thick or under-thick doors at the hinge cup. A 110 degree opening angle allows the door to open past 90 degrees, which helps with everyday cabinet access while still controlling how far the door swings into nearby edges or walls.
The cup diameter of 35mm and cup depth of 11.6mm define the recess boring pattern in the door, so boring equipment can be set precisely and repeated accurately across multiple doors on a job.
Key Hettich Intermat 110 Hinge Working Details
- The 35mm cup diameter matches common European boring patterns, which lets drilling jigs and line-boring equipment be set once and used throughout a run without extra layout.
- Cup depth of 11.6mm determines how deep the hole is bored into the door, which helps keep enough material behind the cup for strength while still seating the hinge correctly.
- Door thickness suitability from 15mm to 25mm defines the construction range for doors, which helps keep the hinge geometry working as intended for reliable closing and alignment.
- A 110 degree opening angle allows the door to swing open beyond a right angle, which makes cabinet interiors more accessible while limiting interference with adjacent cabinets or walls.
- Quality classification under EN 15570, Level 2 indicates the hinge is tested to a defined European standard, which gives a documented performance level for specifying hardware on projects.
Hinge Adjustment And Mounting Details For Cabinet Work
This Intermat self-close hinge provides integrated overlay adjustment of plus 2mm to minus 2mm, which allows the door position to be shifted sideways on the cabinet to tighten reveals or relieve binding without redrilling. Integrated depth adjustment of plus 2.5mm to minus 1.5mm moves the door closer to or farther from the cabinet front, which helps align the door face with adjacent fronts during installation or later tuning.
Height adjustment at the mounting plate means vertical positioning is handled at the plate interface, so doors can be raised or lowered relative to the cabinet opening by working at the plate rather than altering the cup boring location. This combination of overlay, depth, and height adjustments offers a three-way alignment approach that supports fine-tuning doors after they are hung.
Using The Hettich 9043645 Hinge In Cabinet Projects
Where The Hettich Intermat 110 Hinge Fits In
The Intermat 110 hinge with self-close function is classified under concealed cabinet hinges and European concealed long arm hinges, which places it in the group of hinges used when the hardware should be hidden from view with the door closed. As a European standard hinge, it is suited to cabinet constructions that follow this system for cup size and drilling layout.
The hinge is identified with manufacturer part number 9043645 and described as INTERMAT 110 HING SC INST 45MM EXPDWL and as Intermat self-close inset overlay face-frame;frameless hinges nickel in the product name, which confirms it belongs to the Intermat family and is intended for cabinet applications described with inset or overlay and used on both face-frame and frameless styles when specified correctly in a system using this hardware pattern.
The nickel reference in the product name indicates a nickel-related finish, which keeps the hinge visually consistent with other nickel-finished cabinet hardware in a project when the interior is visible.
Why These Intermat 110 Adjustments Support Consistent Results
The integrated overlay adjustment of plus 2mm to minus 2mm lets the installer move the door sideways relative to the cabinet front without changing the boring layout, which supports tight, repeatable gaps between doors and between door and face-frame. When running multiple cabinets on a wall, this adjustability helps bring fronts into a straight visual line even when cabinet boxes vary slightly.
The integrated depth adjustment of plus 2.5mm to minus 1.5mm controls how far the door sits from the cabinet face, which is important for aligning doors with surrounding panels or appliance fronts that share a plane. On frameless runs, this depth range allows the door face to be brought into the same line across several cabinets, improving the finished appearance and helping doors clear adjacent hardware properly.
Height adjustment at the mounting plate means vertical correction happens at the plate interface, which is often easier to reach once cabinets are installed. This has value when adjusting doors after counters or trim are in place, because vertical fine-tuning at the plate can close up reveals at the top or bottom of the opening without altering hinge cup locations.
The 35mm cup diameter and 11.6mm cup depth tie directly into standard boring machinery setups, supporting consistent results from shop production through on-site installation. With the door thickness window of 15mm to 25mm clearly specified, door manufacturing can be planned around that range so that all three adjustments - overlay, depth, and height - function within their intended travel and the self-close action works smoothly across the project.
Common Questions About The Hettich Intermat 110 Hinge
What door thickness range does this Hettich 9043645 hinge support?
The Hettich Intermat 110 hinge is specified for door thickness from 15mm to 25mm, which sets the construction limits so the hinge cup seats correctly and the hinge geometry functions as designed.
How does the 35mm hinge cup diameter affect boring setup?
The 35mm cup diameter matches standard European boring setups, so drill bits, jigs, and line-boring machines can be configured to a common size for repeatable door production.
What is the practical value of the 11.6mm cup depth?
The 11.6mm cup depth defines how deep to bore into the door, balancing proper seating of the hinge with retaining material behind the cup for strength in normal cabinet service.
How does integrated overlay adjustment help cabinet alignment?
Integrated overlay adjustment of plus 2mm to minus 2mm lets the door shift sideways on the cabinet front, which helps dial in even gaps between doors and frames without relocating the cup.
What does the depth adjustment range allow on this hinge?
The integrated depth adjustment of plus 2.5mm to minus 1.5mm moves the door toward or away from the cabinet, aiding in flush alignment of door faces across neighboring cabinets.
What does EN 15570 Level 2 classification indicate for this hinge?
The EN 15570 Level 2 quality classification shows the hinge has been assessed under that European hinge standard, providing a defined performance category for project specifications.
Selecting This Hettich Intermat 110 Hinge For Your Job
The Hettich Intermat 110 hinge with self-close function, 35mm cup diameter, and 11.6mm cup depth offers a defined set of working dimensions, which helps plan boring operations and door construction around a known pattern. With door thickness suitability from 15mm to 25mm, a 110 degree opening angle, and integrated overlay, depth, and height adjustments at the hinge and mounting plate, this concealed cabinet hinge supports fine alignment of doors on projects that follow European standard practices. For cabinet work calling for a concealed hinge with documented EN 15570 Level 2 classification, this Intermat 9043645 model provides the specific parameters needed to match design, drilling, and installation steps.
