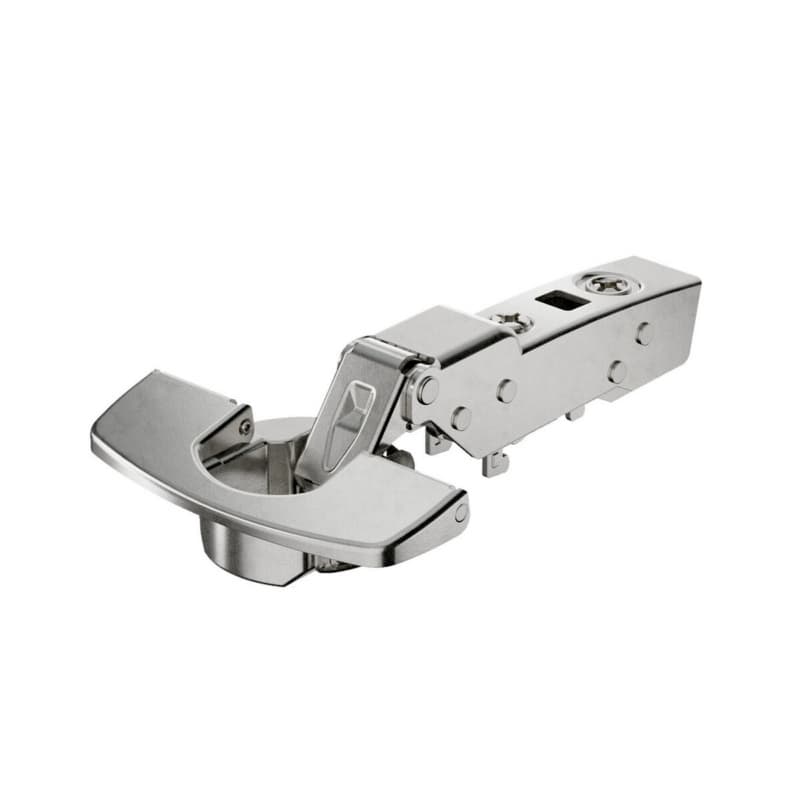

Sensys Concealed Cabinet Hinge For Efficient Storage
Sensys concealed cabinet hinge from Hettich America Corporation is a concealed cabinet hinge designed for use on cabinet doors where clean appearance and interior access matter. As a concealed hinge in the European standard hinge class, it keeps hardware hidden so the focus stays on the cabinet while still allowing full function during everyday use. The 110 degree opening angle gives doors a wide swing so access to cabinet contents is not cramped. This model is a self-closing hinge, so once the door is moved into the closing range it pulls closed on its own, helping doors stay shut without external catches. Sensys hinges are described as zero protusion, so the open door stays clear of adjacent cabinet interiors, which supports better use of storage space. The half overlay, face-frame and frameless design intent gives flexibility across common cabinet construction styles where that geometry is required.
Key Sensys Hinge Details That Support Daily Work
- The wide automatic closing angle of 35 degrees means the Sensys 8645 hinge starts the self-closing action earlier in the swing, which helps doors seat consistently without needing a hard push when users are working quickly.
- The stated zero protusion design keeps the open door clear of the cabinet interior, which allows drawers, rollouts, or stored items to move without the door edge interfering with the working space inside the cabinet.
- The temperature stable damper is specified for a range from 41 F to 104 F, so the self-closing and damping behavior remains consistent in typical room and shop conditions where cabinets are installed and used.
- The hinge is rated under EN 15570, Level 3, so it has been classified through a recognized standard, which matters when selecting hardware for projects that call for tested performance classifications.
- The product sits in the concealed cabinet hinges category with a nickel finish, which offers a familiar look for trade professionals and coordinates with other common cabinet hardware components on the job.
Sensys 110 Degree Hinge Mounting And Adjustment
The Sensys 110 degree hinge uses a cup depth of 12.8mm, so the door preparation can follow a consistent bore depth that aligns with this value. For door thickness from 15mm to 24mm, the hinge geometry supports those material sizes, which is important when working across standard cabinet door panels. Integrated overlay adjustment of plus 2mm to minus 2mm allows the installer to shift the door position sideways at the hinge, bringing reveals into line after the door is hung. Integrated depth adjustment of plus 3mm to minus 2mm lets the door move in and out relative to the cabinet front, helping align the door plane. Height adjustment is handled at the mounting plate, so vertical fine-tuning is built into the plate interface rather than the hinge arm, which organizes adjustments logically during fitting.
Using The Hettich Sensys Self Close Half Overlay Hinge
Where This Half Overlay Sensys Hinge Fits Best
The Hettich Sensys self close half overlay face-frame;frameless hinge is identified as a half overlay design, so it is suited to door layouts where each door covers only part of the cabinet side or face frame. The reference to face-frame;frameless means the hinge concept addresses both face-frame cabinets and frameless cabinets when the proper mounting layout is used for the construction type. With a 110 degree opening angle, the hinge allows doors to open wide enough for hands, tools, and stored items to move in and out without feeling restricted by the hinge swing. As a concealed cabinet hinge, it works especially well in kitchens, baths, and built-ins where a clean exterior is desired. The nickel hinge finish coordinates visually with common interior hardware tones, which supports a consistent appearance inside the cabinet run.
Why Sensys Adjustments Support Accurate Door Alignment
The integrated overlay adjustment of plus 2mm to minus 2mm provides lateral movement at the hinge, so fine tuning the gap between doors or between door and cabinet side is done without redrilling or moving the cup. The integrated depth adjustment of plus 3mm to minus 2mm adds front-to-back movement, which helps flush the door face with adjacent doors or trim by turning adjustment mechanisms instead of altering the bore. Height adjustment at the mounting plate separates vertical movement from the hinge body, allowing the door to be shifted up or down along the cabinet side or face frame through the plate interface. Together, these adjustments mean alignment corrections can be handled in three directions, helping reduce rework during installation or later service. The self closing feature of the Sensys 8645 hinge works with these adjustments so that once alignment is dialed in, the door consistently pulls closed into the same position each time.
Common Questions About Sensys 110 Degree Hinges
What type of hinge is the Sensys 9073654?
The Sensys 9073654 is a concealed cabinet hinge in the European standard hinge class, so it mounts inside the cabinet and keeps the hardware hidden when the door is closed.
What door thickness range does this hinge support?
The Sensys hinge is specified for door thickness from 15mm to 24mm, which covers common cabinet door panel sizes used in many woodworking projects.
How far does the Sensys self close hinge open?
The Sensys self close hinge has a 110 degree opening angle, so the door swings wide for better access to the cabinet interior during daily use.
How does the overlay adjustment on this hinge work?
The Sensys hinge offers integrated overlay adjustment of plus 2mm to minus 2mm, allowing sideways movement of the door to fine tune reveals without altering the cup bore.
What depth adjustment range does the Sensys hinge provide?
The hinge provides integrated depth adjustment of plus 3mm to minus 2mm, so the door can be moved in or out to align the front plane with nearby doors or trim.
In what temperature range does the damper stay stable?
The Sensys hinge damper is described as temperature stable from 41 F to 104 F, so its self-closing behavior remains consistent in typical interior environments.
Choose The Sensys 110 Hinge For Adjustable Fit
The Sensys concealed cabinet hinge from Hettich America Corporation combines a 110 degree opening angle with self closing action, which supports straightforward cabinet operation in everyday settings. With its half overlay, face-frame;frameless designation, the hinge aligns with common cabinet construction approaches that use that overlay geometry. The integrated overlay and depth adjustments, along with height adjustment at the mounting plate, give three-way alignment options to dial in door position. The zero protusion hinge design and temperature stable damper further support practical cabinet use. When a project calls for a European concealed long arm hinge with tested EN 15570 Level 3 classification, this Sensys 9073654 model offers a clear, specification-based option.
