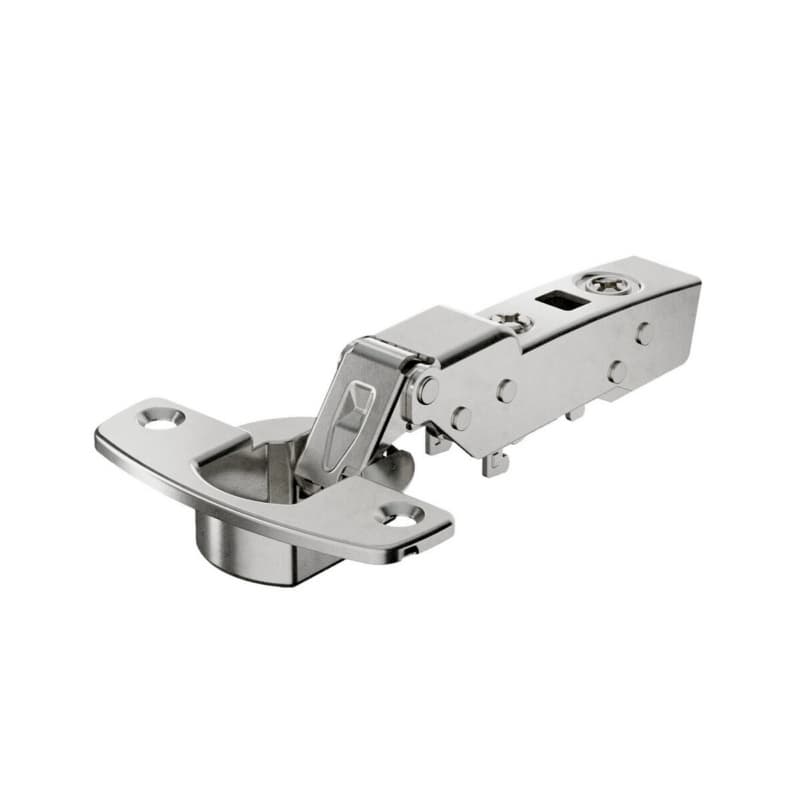

Hettich Sensys Self-Close Half Overlay Face-Frame;Frameless Hinges Nickel, 110° Screw-On - 9073648

Hettich Sensys Self-Close Hinge For Precise Cabinets

Hettich Sensys self-close hinge is a concealed European standard hinge designed as a half overlay option for both face-frame and frameless cabinets. The 110 degree opening angle gives doors full, practical access while still controlling swing in tight kitchen or shop layouts. Zero protrusion design keeps the open door clear of adjacent interior pull-outs, so drawers and roll-outs can move without interference. The self closing feature on the Sensys 8645 mechanism pulls the door shut from the last part of travel, which helps doors sit consistently closed. A wide automatic closing angle of 35 degrees means the hinge actively closes the door through a large portion of its swing, supporting quick, repeatable door operation in everyday cabinet use.

Key Sensys 110 Hinge Details For Installers

• The hinge is a concealed cabinet hinge from the Sensys series, so the hardware stays hidden when the door is closed, giving projects a clean, uninterrupted front.
• A 110 degree opening angle lets doors open wide for access while staying short of a full swing, which helps when cabinets are near walls or appliances.
• The hinge is specified as half overlay for face-frame and frameless applications, allowing one hinge pattern to serve mixed cabinet construction on the same job.
• Zero protrusion design keeps the open door edge out of the interior path, allowing interior storage solutions to slide without contact.
• The self closing feature provides automatic door pull-in near the closed position, helping doors land in the same resting spot after use.
• A temperature stable damper works within 41 F to 104 F (5 C to 40 C), so the closing behavior stays consistent in normal residential and shop conditions.

Mounting, Adjustments, And Cabinet Fit Details

This Sensys 110 self close hinge uses a screw-on mounting style, which provides a firm mechanical connection between hinge and cabinet components for repeatable positioning. Door thickness suitability from 15mm to 24mm allows use on common cabinet door builds in this metric range. A cup depth of 12.8mm sets the drilling depth required in the door, which helps control how the hinge arm sits relative to the door face. Integrated overlay adjustment of +2mm / -2mm lets the installer shift the door sideways at the hinge, dialing in gap alignment between doors and cabinet sides. Integrated depth adjustment of +3mm / -2mm moves the door in and out relative to the cabinet front, helping the door sit flush. Height adjustment is provided at the mounting plate location, so vertical door gaps can be tuned after hanging.

Using This Sensys 110 Hinge In Real Projects

Where This European Concealed Cabinet Hinge Fits

This product is classified as a concealed cabinet hinge within the European standard hinge family, so it suits applications where a hidden long arm hinge look is desired. The half overlay design supports layouts where two doors share a center cabinet partition, giving each door partial coverage of the frame or panel. Because it can be used on both face-frame and frameless cabinets, one hinge type can be specified across mixed construction on kitchen, bath, or casework runs that share the same door style and thickness range. The nickel finish visually aligns with other common cabinet hinge finishes when doors are open, so interiors maintain a consistent hardware appearance. Quality classification under EN 15570, Level 3 indicates the hinge is tested to a recognized European standard, supporting use in demanding everyday cabinet environments.

Adjustment Range That Supports Accurate Door Alignment

The integrated overlay adjustment of +2mm / -2mm allows doors to be shifted laterally without re-drilling, which is valuable for setting even reveals between adjacent doors or between door and gable. Integrated depth adjustment of +3mm / -2mm gives front-to-back tuning, helping align the door face flush with neighboring doors or cabinet fronts. Height adjustment at the mounting plate means vertical gaps at top and bottom can be corrected after initial hanging, reducing time spent removing and re-hanging doors. The wide automatic closing angle of 35 degrees supports a firm, controlled self close through a broad part of the closing movement, which helps doors pull firmly into position even when used frequently. The temperature stable damper operating from 41 F to 104 F (5 C to 40 C) helps this self closing action feel similar across normal seasonal temperature swings in typical interior spaces.

Common Questions About This Sensys 8645 Hinge

Selecting This Sensys 110 Hinge For Your Project

The Sensys 110 self close half overlay hinge with screw-on mounting offers a concealed European standard solution for both face-frame and frameless cabinets using doors from 15mm to 24mm thick. Zero protrusion design and a 110 degree opening angle support efficient storage layouts where interior pull-outs operate close to door fronts. Integrated overlay, depth, and height adjustments give the fine-tuning range needed to align doors cleanly across a run. For projects calling for a nickel-finished, EN 15570 Level 3 classified concealed hinge, this Hettich Sensys 9073648 model provides the specified combination of self closing function, temperature stable damper performance, and precise three-way adjustability.
