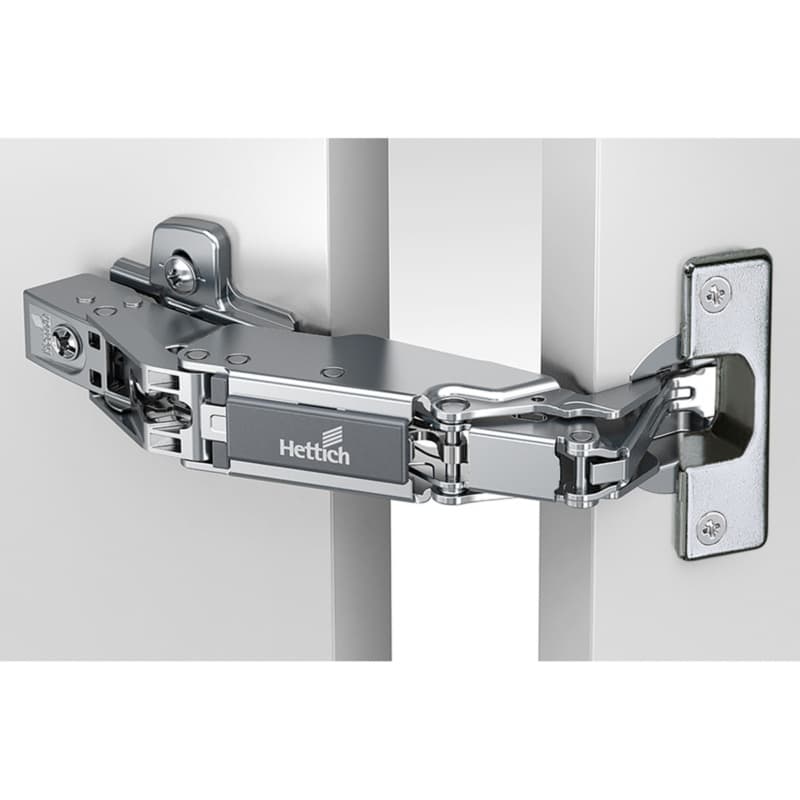

Hettich Sensys Half Overlay Hinge For Wide Opening
Hettich Sensys half overlay hinge gives a 165 degree wide opening angle, so cabinet doors swing well clear of the opening and let you access storage space efficiently during daily use or installation work. The hinge is a concealed cabinet hinge, keeping hardware out of sight while still delivering full functionality for face-frame or frameless projects where a clean interior is important. Sensys hinges from Hettich are a zero protusion concealed hinge, so the door does not project into the cabinet when open, which helps when installing roll-outs or interior fittings close to the front. The hinge is self-close, so the door is pulled shut automatically over the final part of travel, which supports consistent closing behavior across a run of cabinets.
Key Sensys Hinge Details That Support Your Work
- The 165 degree wide angle hinge design opens the door far past standard angles, which helps when loading bulky items or fitting interior components that need clear front access.
- Zero protusion concealed hinge geometry keeps the open door from intruding into the cabinet, which matters when planning pull-out shelves or storage elements near the hinge side.
- The automatic closing angle of 35 degrees brings the door shut from partially open, which reduces the effort needed to achieve a consistent closed position on multiple doors.
- The temperature stable damper operates from 41 F to 104 F (5 C to 40 C), so closing performance remains similar in typical residential or shop environments within that range.
- Steel nickel plated construction gives the hinge a hard-wearing metal body with a corrosion resistant surface, which is useful in busy kitchens and work areas.
- Quality classification under EN 15570, Level 3, indicates that the hinge has been tested to a demanding standard, which supports confidence when it is used on frequently operated doors.
Installation Adjustments For Accurate Cabinet Door Fit
The Sensys wide angle hinge is designed for door thickness from 15 mm to 32 mm, so it spans many common cabinet door builds without changing hinge type. Cup depth is 11.6 mm, which tells you how deep the cup bore in the door needs to be during machining. Integrated overlay adjustment of plus 2 mm / minus 2 mm lets you fine tune how far the door overlays the cabinet front after mounting, helping align reveals along a run. Integrated depth adjustment of plus 3 mm / minus 2 mm shifts the door in and out relative to the cabinet front, which helps when balancing gaps against neighboring doors or end panels. Height adjustment is provided at the mounting plate, so you can move the door up or down on the cabinet, aligning top edges and horizontal reveals.
Using The Sensys 165 Degree Hinge In Real Projects
Where This Zero Protusion Hinge Performs Best
Sensys hinges from Hettich are a zero protusion concealed hinge that is perfect for optimum use of storage space, so they work well wherever interior fittings come close to the door path. The Sensys wide angle hinge, with zero protrusion, suits cabinets where pull-out trays or organizers need a clear opening without the door edge blocking travel. Door thickness capability from 15 mm to 32 mm covers many painted, veneered, or laminated doors in both face-frame and frameless construction, letting you apply one hinge model across mixed jobs when dimensions match. The operating temperature range for the damper, from 41 F to 104 F (5 C to 40 C), fits normal indoor conditions, helping closing behavior stay consistent in kitchens, baths, or shop-fitted casework.
Adjustment Features That Reduce Door Rework Time
Integrated overlay adjustment of plus 2 mm / minus 2 mm builds side-to-side correction into the hinge arm, so final alignment of door edges can be done on the installed door rather than remachining the cup. Integrated depth adjustment of plus 3 mm / minus 2 mm allows front-to-back tuning, which helps achieve an even gap between door and cabinet front and can compensate for small drilling tolerances. Height adjustment at the mounting plate lets you shift the door vertically on the cabinet, so you can step doors into perfect line along a tall run without altering the door boring pattern. The self-close function at a wide automatic closing angle of 35 degrees draws the door into the closed position from partially open, which supports uniform closing across banks of cabinets and reduces the need for magnetic catches.
Common Questions About The Hettich Sensys 9099780 Hinge
What type of cabinet hinge is the Hettich 9099780?
The Hettich 9099780 is a Sensys wide angle concealed cabinet hinge with zero protrusion, providing a hidden mounting that supports optimum use of interior storage space.
How far does the Sensys 165 degree concealed hinge open?
The Sensys 165 degree concealed hinge opens to 165 degrees, allowing the door to swing widely and clear the cabinet front for easier access and interior fitting movement.
What door thickness range does this steel nickel plated hinge support?
The hinge supports door thickness from 15 mm to 32 mm, covering many common cabinet door constructions and helping standardize boring setups across different projects.
How does the integrated overlay adjustment help during installation?
The integrated overlay adjustment of plus 2 mm / minus 2 mm lets you fine tune how far the door covers the cabinet front after mounting, improving reveal consistency.
What does EN 15570 Level 3 classification indicate for this hinge?
The EN 15570 Level 3 classification means the hinge meets a high performance category under that standard, supporting use on doors that see frequent opening cycles.
In what temperature range does the Sensys damper operate effectively?
The Sensys temperature stable damper operates effectively from 41 F to 104 F (5 C to 40 C), so closing behavior remains consistent in typical interior environments.
Selecting This Sensys Hinge For Your Next Cabinet Run
The Hettich Sensys half overlay hinge with 165 degree opening, zero protrusion design, and self-close action brings wide access and controlled closing to concealed cabinet installations. With door thickness coverage from 15 mm to 32 mm, 11.6 mm cup depth, and three-way adjustment for overlay, depth, and height, it supports accurate alignment without changing door machining once bored. For cabinet projects that benefit from clear openings, stable damping within 41 F to 104 F, and EN 15570 Level 3 classification, this Sensys 9099780 hinge offers a practical fit for professional and advanced DIY casework.
