Hettich Sensys Concealed Hinge For Wide Access

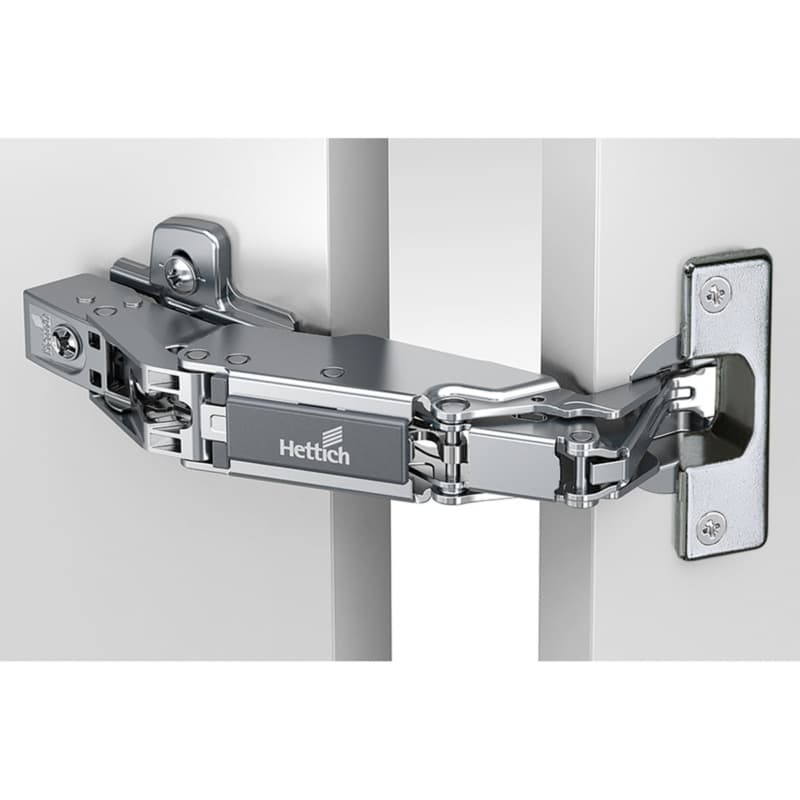

Hettich Sensys concealed hinge is a concealed cabinet hinge from Hettich America Corporation designed as a Sensys wide angle hinge with zero protrusion. That wide opening and zero protrusion allow the door to open broadly while staying clear, supporting optimum use of storage space in cabinets.

This hinge is a self-close half overlay design in the concealed cabinet hinges class, so the door pulls itself shut over a partial overlay on the face frame or panel, helping doors close consistently on day-to-day use. The hinge is a European standard long arm style, which suits applications where a concealed, clean cabinet exterior is important.

The hinge offers a 165 degree opening angle, creating very wide access into the cabinet interior. The manufacturer part number 9099786 identifies this specific Sensys 165 W/O SISY, SLF CL, HALF, EXP DWL configuration, which helps match like-for-like parts across jobs or when standardizing hardware.

Key Sensys Hinge Details For Cabinet Work

• The Sensys wide angle hinge with 165 degree opening angle lets the door swing open far, giving better reach into the cabinet without the door obstructing the opening during loading or access.
• Zero protrusion design keeps the hinge arm from projecting into the cabinet interior when the door is open, protecting clear space inside and helping storage layouts work as planned.
• Self-close function brings the door shut from the wide automatic closing angle of 35 degrees, so doors move smoothly into the closed position in regular kitchen, bath, or shop use.
• The temperature stable damper is specified for 41 F to 104 F (5 C to 40 C), so the soft-closing action stays consistent through normal building temperature conditions without changing feel.
• Steel nickel plated construction combines a steel hinge body with a nickel plated finish, giving a familiar hinge material with a uniform appearance that suits common cabinet hardware finishes.
• Quality classification under EN 15570, Level 3, indicates the hinge is tested to that European standard level, giving installers a defined performance classification to align with project requirements.

Hinge Adjustment And Mounting For Accurate Fit

This hinge uses an integrated overlay adjustment of +2mm / -2mm, so the door position over the cabinet front can be shifted in or out in small steps, helping align reveals across a run of doors. Integrated depth adjustment of +3mm / -2mm lets the door move toward or away from the cabinet, which is useful for setting the door flush to the front or tuning gaps.

Height adjustment is located at the mounting plate, giving vertical tuning of the door relative to adjacent doors. That separation of overlay, depth, and height adjustments allows each axis to be dialed in individually, reducing time spent chasing alignment over multiple doors.

The hinge is specified with cup depth 11.6mm, which guides drilling depth into the door for proper seating of the hinge cup. It is suitable for door thickness 15-32mm, covering a range of common cabinet door thicknesses used in both residential and commercial casework.

Using This Sensys 165 Degree Hinge In Practice

Where This Wide Angle Hinge Performs Best

The Sensys wide angle hinge with zero protrusion is described as perfect for optimum use of storage space, so it fits cabinet layouts where interior access and clear openings are priorities. With a 165 degree opening angle, the hinge opens the door far beyond standard angles, which is useful on base cabinets, tall cabinets, or utility storage where full-width access to shelves and contents helps daily workflow.

The hinge is a self-close half overlay design in the concealed cabinet hinges category, so it fits cabinet fronts that use a partial overlay on face-frame or frameless styles while keeping the hardware hidden from view when the door is shut. In concealed European standard hinge applications, the clean front appearance pairs well with modern and traditional cabinet designs that call for unobtrusive hardware.

The specified temperature stable damper working range of 41 F to 104 F (5 C to 40 C) supports use in typical conditioned indoor environments such as kitchens, baths, and shop cabinets where those temperatures occur. Within that range, the damping behavior remains stable, so doors close with a similar motion across seasons and daily temperature swings in normal interiors.

Adjustment Range That Supports Repeatable Results

The integrated overlay adjustment of +2mm / -2mm lets installers fine-tune how far the 15-32mm thick door overlays the cabinet front, which is especially important when aligning multiple doors across a long run so sightlines and gaps stay consistent. Being integrated into the hinge, this overlay adjustment can be done at the hinge location, helping reduce repeated removal of the door when dialing in fit.

The integrated depth adjustment of +3mm / -2mm gives control over how the door sits in depth relative to the cabinet edge, so the door can be moved in or out to sit in line with adjacent fronts. That adjustability can help correct minor drilling variances or cabinet tolerances by shifting the door instead of altering the casework.

Height adjustment at the mounting plate lets the door position move vertically without disturbing the overlay and depth settings already established at the hinge. That separation of vertical adjustment helps achieve even top and bottom gaps on the door while keeping the other two dimensions locked in, reducing the amount of rework per door.

The cup depth of 11.6mm defines the drilling depth into the door, which promotes consistent seating of every hinge cup and provides a predictable starting point for all adjustments. Combined with the EN 15570, Level 3 quality classification, these specifications support repeatable hinge performance on cabinet projects that call for defined test standards.

Common Questions About The Hettich 9099786 Hinge

Select This Sensys Hinge For Wide Access Cabinets

The Hettich Sensys concealed hinge with 165 degree wide angle opening, zero protrusion, and self-close half overlay design offers a combination tailored to cabinets that demand both access and a hidden hinge layout. Its integrated overlay and depth adjustments, plus height adjustment at the mounting plate, give three-axis control over the door position. The specified 15-32mm door thickness range and 11.6mm cup depth concentrate the working envelope for drilling and fitting. For cabinet projects aligning to EN 15570, Level 3 and needing a steel nickel plated, temperature stable damped hinge, this Sensys 9099786 model from Wurth Baer Supply is a focused option.
