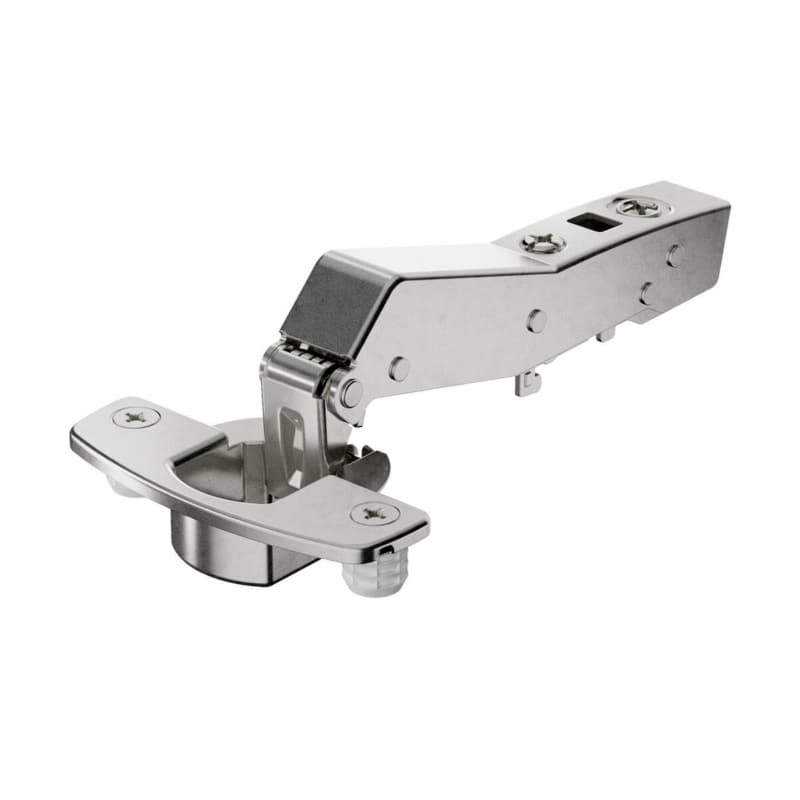

Hettich Sensys Soft-Close Silent System Inset Overlay 45° Angle Face-Frame;Frameless Hinges Nickel, 95° Dowel - 9088043

Hettich Sensys Soft-Close Hinge For Angled Doors

Hettich Sensys soft-close hinge is a concealed cabinet hinge designed as a zero protrusion hinge for optimizing storage space inside cabinets. The 95 degree opening angle lets inset or overlay doors on angled cabinets swing open enough for access while limiting door travel around adjacent components. The hinge is specified as an inset overlay 45 degree angle hinge for face-frame and frameless cabinet construction, so it suits angled corner layouts where the door meets the cabinet at 45 degrees. Steel construction with a nickel plated finish provides a robust concealed hinge body with a neutral metal look that coordinates with most interior hardware. This Sensys hinge uses a dowel mounting style, so the cup installs into bored holes in the door for a secure concealed connection. The hinge operates as part of Hettichs Silent System, giving soft-close performance built into the hinge.

Key Sensys 95 Degree Hinge Working Details

• The zero protrusion concealed hinge design keeps the hinge arm out of the cabinet interior swing path, allowing drawers or roll-outs to move past the open door for better use of storage volume.
• A wide automatic closing angle of 35 degrees pulls the door closed once it reaches this point, reducing manual effort and helping doors settle consistently against the cabinet front.
• The temperature stable damper is specified to operate from 41 F to 104 F, so the soft-close action remains consistent in typical indoor cabinet environments.
• Door thickness capacity from 15 mm to 28 mm lets this hinge work across many cabinet door constructions, from thinner doors to thicker fronts.
• A cup depth of 12.8 mm defines the boring depth in the door, giving installers a clear drilling target for proper seating and hinge function.
• Quality classification under EN 15570 Level 3 indicates the hinge has been tested to a defined performance standard, supporting dependable operation in regular cabinet use.

Mounting And Adjustment Details For This Hinge

This Sensys 95 degree hinge uses a dowel cup design, so the hinge mounts into a machined cup hole in the door. Integrated overlay adjustment of plus 2 mm to minus 2 mm at the hinge lets the door position be shifted sideways relative to the cabinet front for even gaps on angled or straight runs. Integrated depth adjustment of plus 3 mm to minus 2 mm allows the door to move in or out relative to the cabinet front, helping align the door face on face-frame and frameless boxes. Height adjustment is specified at the mounting plate, so vertical alignment can be tuned where the hinge meets the cabinet side. Together, these adjustment ranges provide the fine-tuning needed when installing angled doors in real cabinet layouts.

Using The Hettich 9088043 Hinge In Projects

Where This Zero Protrusion Hinge Fits Best

This Hettich America Corporation Sensys hinge is classified as a concealed cabinet hinge in the European angled hinge family, so it is suited to cabinets needing a hidden hinge appearance. The zero protrusion hinge arm is useful on cabinets with interior pull-outs, because the arm does not extend into the path of drawers when the door stands open at 95 degrees. Its specification as an inset overlay 45 degree angle hinge for face-frame and frameless cabinets positions it for corner cabinets and angled end cabinets where a 45 degree door layout is required. The door thickness range of 15 mm to 28 mm lets the same hinge part number 9088043 serve across many panel materials, so a shop or installer can match different fronts while keeping hinge geometry consistent. The nickel plated steel construction supports a concealed but clean-looking hinge in both residential and commercial cabinet interiors where a metallic finish is preferred.

How Sensys Adjustments Support Clean Results

The integrated overlay adjustment of plus 2 mm to minus 2 mm provides sideways movement of the door relative to the cabinet, making it practical to correct small drilling offsets and still deliver tight, even reveals on angled fronts. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door move closer to or further from the cabinet front, which is important when aligning multiple doors along a run or when balancing an angled door against neighboring fronts. Height adjustment at the mounting plate creates vertical tuning without changing the door boring, so installers can set consistent top and bottom gaps along face-frame or frameless sides. The wide automatic closing angle of 35 degrees means that once the door passes this point, the hinge brings it shut, supporting the Silent System soft-close function in everyday use. The temperature stable damper operating range from 41 F to 104 F maintains this closing behavior across normal room and shop temperatures.

Common Questions About This Sensys Angled Hinge

Selecting This Hettich Sensys Hinge For Work

The Sensys 95 degree Hettich inset overlay 45 degree angle hinge brings zero protrusion function, soft-close Silent System operation, and defined adjustment ranges into one concealed hinge. When a project calls for angled face-frame or frameless cabinets with door thickness between 15 mm and 28 mm, this hinge configuration aligns with that geometry. The nickel plated steel body, EN 15570 Level 3 classification, and integrated overlay, depth, and height adjustments support accurate installation and repeatable door alignment across similar cabinets. For shops and installers working with Hettich America Corporation components, selecting the 9088043 part keeps hinge function, appearance, and adjustment behavior consistent across angled cabinet runs.
