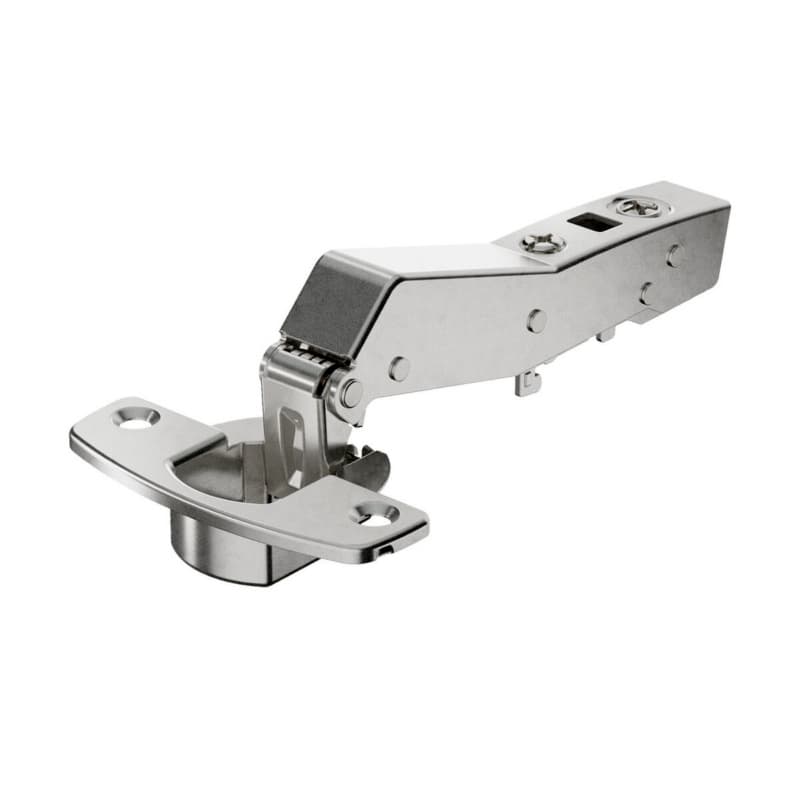

Hettich Sensys Soft-Close Hinge For Angled Doors
Hettich Sensys soft-close hinge is a concealed cabinet hinge designed for inset overlay 45 degree angle applications on face-frame and frameless cabinets. The Sensys hinge design supports optimum use of storage space by keeping the hinge concealed while allowing doors to open to 95 degrees, which helps cabinets remain accessible without the hinge hardware crowding the interior. The hinge provides a wide automatic closing angle of 35 degrees, so the door is pulled closed over a larger range, which helps doors shut consistently in everyday use. A temperature stable damper in the range 41 F to 104 F (5 C to 40 C) keeps the soft-close function working in typical shop and home conditions, so the closing action stays predictable from cooler mornings to warmer afternoons. Steel nickel plated construction provides a hard-wearing hinge surface, which supports long-term use on frequently operated cabinet doors.
Key Sensys Hinge Details For Cabinet Projects
- The hinge is a concealed cabinet hinge from the Sensys line, so the hardware sits out of sight when the door is closed, which helps projects maintain a clean exterior while still allowing full hinge function during operation.
- A 95 degree opening angle allows doors to swing open far enough for access to stored items, which is useful on cabinets where interior space and door clearance must work together around nearby walls or appliances.
- The wide automatic closing angle of 35 degrees pulls the door shut over a broad range, which supports smooth closing when users push the door from different starting positions.
- The hinge operates with a temperature stable damper between 41 F and 104 F (5 C to 40 C), which helps the soft-close function remain consistent across typical indoor temperature variations found in shops, kitchens, or workrooms.
- Steel nickel plated construction on the hinge provides a protective metal finish, which supports durability and a uniform appearance alongside other nickel plated cabinet hardware in the same installation.
- Quality classification under EN 15570, Level 3, places the hinge in a tested performance category, which supports use on demanding cabinet applications where repeated door cycles are expected over time.
Hinge Adjustment, Door Thickness, And Mounting Range
The Sensys concealed hinge provides integrated overlay adjustment of plus 2 mm / minus 2 mm, which lets installers shift the door position side-to-side at the hinge, helping align reveals without reshaping the cabinet. Integrated depth adjustment of plus 3 mm / minus 2 mm allows the door to move in and out relative to the cabinet front, which is useful for aligning flush faces on inset overlay 45 degree angle applications. Height adjustment is handled at the mounting plate, so vertical door alignment across multiple hinges can be tuned at the plate position to keep door gaps even. The hinge is designed for door thickness from 15 mm to 28 mm, which covers a wide range of common cabinet door materials and constructions used in professional and serious DIY work. A cup depth of 12.8 mm defines the bore depth in the door, which guides drilling setup so the hinge sits correctly without weakening the door.
Using The Sensys 95 Degree Hinge In Real Projects
Where This Hettich 9088025 Hinge Performs Best
The Hettich America Corporation Sensys hinge, manufacturer part 9088025, is a European concealed long arm hinge designed as a concealed cabinet hinge for angled applications, which suits projects needing an inset overlay 45 degree angle face-frame or frameless solution. The hinge belongs to the European angled hinges category, so it fits layouts where doors meet the cabinet at an angle rather than a simple straight overlay, which helps in corner cabinet runs or special carcass designs. As a soft-close hinge with Silent System, it uses an integrated damper to slow the door movement in the final closing range, which reduces door impact on the cabinet front during repeated use. The nickel plated steel material aligns visually with other nickel plated hinges in a run of cabinets, which supports a consistent hardware appearance inside the casework.
Why Sensys Adjustments Support Repeatable Results
The hinge integrates overlay adjustment of plus 2 mm / minus 2 mm directly in the mechanism, which gives installers repeatable, tool-based control over door position instead of relying on slot play in the cabinet, helping reduce rework on reveal alignment. An integrated depth adjustment range of plus 3 mm / minus 2 mm at the hinge lets the door plane be tuned in small increments, which is particularly useful on inset overlay 45 degree configurations where even minor misalignment can show at the angled joint. Height adjustment at the mounting plate separates vertical tuning from the hinge body, which allows installers to match door heights across multiple hinges by working at the mounting plate line. The wide automatic closing angle of 35 degrees ties into these adjustments by pulling the door into the adjusted position over a useful range, so once alignment is set, the hinge action guides the door to the same seated position every cycle. The soft-close Silent System operating through a temperature stable damper between 41 F and 104 F (5 C to 40 C) supports consistent closing timing throughout the day, which helps doors meet the cabinet front in a controlled way after every adjustment.
Common Questions About This Sensys Soft-Close Hinge
What type of hinge is the Hettich 9088025?
The Hettich 9088025 is a Sensys concealed cabinet hinge categorized as a European concealed long arm hinge and European angled hinge, which suits angled cabinet door layouts.
What is the opening angle of this Sensys hinge?
The Sensys hinge opens to 95 degrees, which provides access to cabinet interiors while maintaining control of the door swing on angled or standard installations.
How does the soft-close Silent System work in daily use?
The hinge uses a temperature stable damper with Silent System to slow door closing within a 41 F to 104 F range, which keeps closure smooth across typical indoor temperatures.
What door thickness range does this hinge support?
The Sensys 9088025 hinge is specified for door thickness from 15 mm to 28 mm, covering many common cabinet door constructions in professional and DIY projects.
How can this hinge help with door alignment?
The hinge offers integrated overlay adjustment of plus 2 mm / minus 2 mm and depth adjustment of plus 3 mm / minus 2 mm, with height adjustment at the mounting plate for precise alignment.
What does the EN 15570 Level 3 classification indicate?
The EN 15570 Level 3 quality classification places the hinge in a defined performance class, supporting use on cabinets where frequent opening and closing cycles are expected.
Selecting This Sensys Hinge For Angled Cabinets
The Sensys 95 degree screw-on hinge with Silent System combines concealed construction, soft-close damping, and European angled hinge geometry, which suits inset overlay 45 degree cabinet layouts using door thickness from 15 mm to 28 mm. With integrated overlay and depth adjustment plus height adjustment at the mounting plate, the hinge supports precise alignment on face-frame or frameless projects. The 95 degree opening angle and wide 35 degree automatic closing angle help doors operate smoothly around adjacent cabinets or walls. Selecting this specific Hettich 9088025 hinge lets cabinet builders match nickel plated steel hardware across installations while working within a tested EN 15570 Level 3 performance classification.
