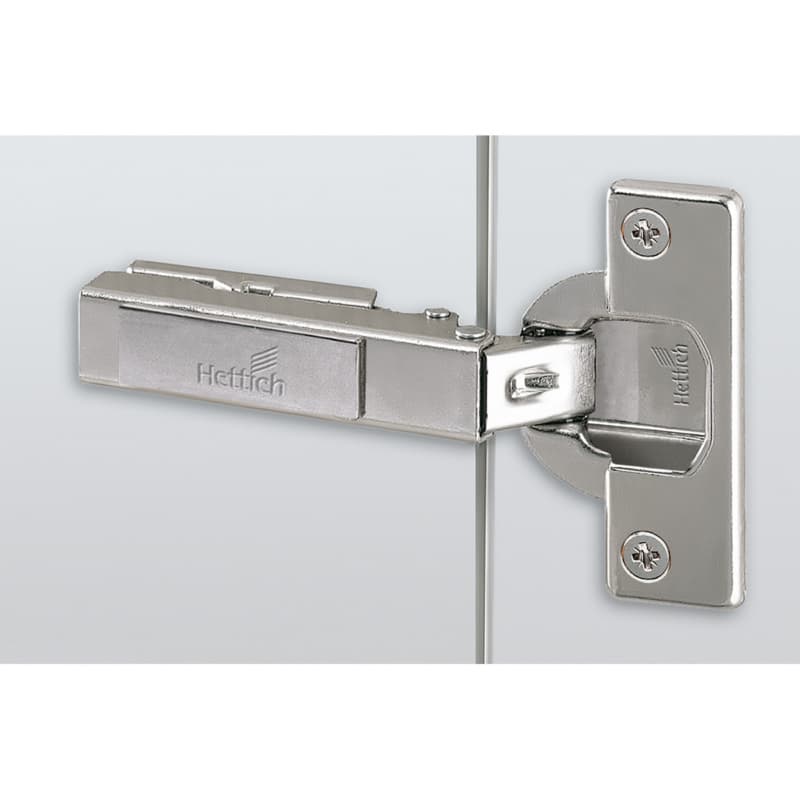

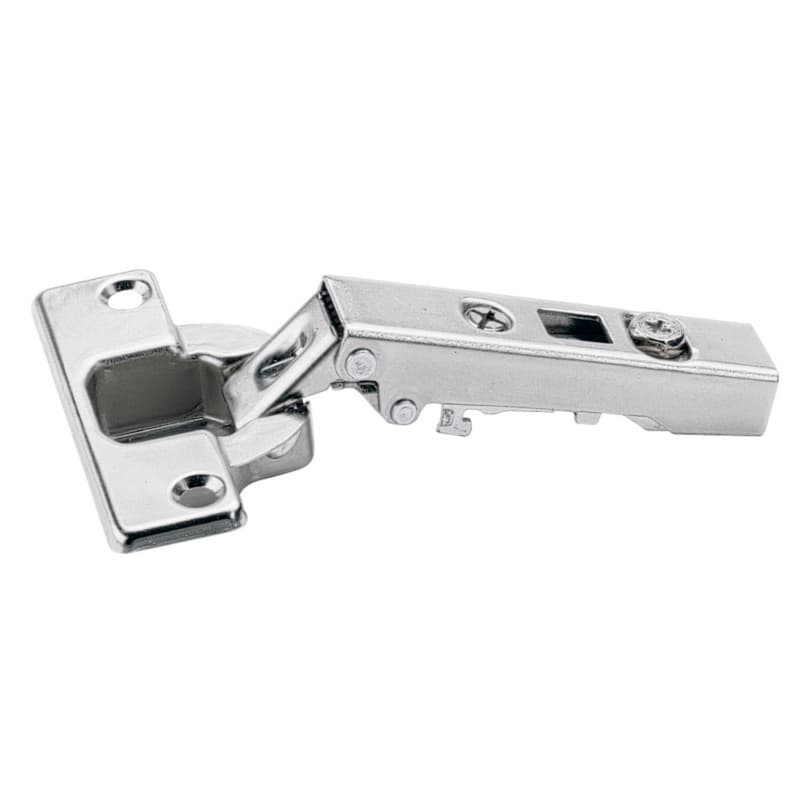

Hettich Intermat self-close hinge is a concealed cabinet hinge engineered for full overlay applications on face-frame or frameless cabinets, so doors cover the cabinet side cleanly while staying hidden from view when closed. As a European standard hinge with a 110 degree opening angle, it lets doors swing wide enough for comfortable access without overstressing the hinge arm in typical cabinet layouts. A 35mm cup diameter matches the common European boring pattern, and an 11.6mm cup depth suits standard hinge boring on many cabinet doors, helping streamline door preparation on drill presses or line boring machines. The hinge is specified for door thickness from 15mm to 25mm, which covers a typical range of cabinet door materials and constructions in woodworking shops. Self-close action draws the door shut at the end of travel, providing consistent closing behavior that supports neat, repeatable cabinet installations.
This Hettich Intermat concealed hinge provides integrated overlay adjustment of plus 2mm to minus 2mm, so lateral door position can be tuned after mounting to close gaps between adjacent doors. Integrated depth adjustment of plus 2.5mm to minus 1.5mm lets the door move in and out relative to the cabinet front, helping align door faces in a bank of cabinets. Height adjustment is handled at the mounting plate, allowing vertical tweaking of the door position without reboring the 35mm cup, which supports fine-tuning reveals over uneven floors or cabinet runs. Together, these adjustments support precise alignment on both face-frame and frameless cabinet constructions using doors in the 15mm to 25mm thickness range.
This concealed cabinet hinge is classified as a European standard hinge within the concealed cabinet hinges class, placing it in a familiar format for many cabinet shops and installers. It is intended for full overlay applications on both face-frame and frameless cabinets, so it suits projects where the door edge extends past the cabinet side for a clean front. The 35mm cup diameter and 11.6mm cup depth match typical boring layouts, which is practical for production environments that rely on consistent drill depths. Door thickness coverage from 15mm to 25mm aligns with common cabinet door constructions, so the same hinge model can be specified for a range of materials without changing boring equipment. The 110 degree opening angle works well on many kitchen, bath, and casework layouts that do not require extreme opening angles, helping doors open comfortably without interfering with adjacent fronts in typical runs.
The integrated overlay adjustment of plus 2mm to minus 2mm allows the door edge to shift sideways relative to the cabinet front, which is valuable for tightening reveals between full overlay doors in multi-door runs. Integrated depth adjustment of plus 2.5mm to minus 1.5mm moves the door in and out, helping align door faces flush across cabinets when carcasses are slightly out of plane. Height adjustment at the mounting plate lets the door move up or down without altering the 35mm cup position, so installers can respond to field conditions while leaving factory-bored doors untouched. Quality classification under EN 15570, Level 2, identifies that the hinge design has been evaluated under a recognized European standard for hinges, which supports consistent behavior across repeated openings and closings in everyday cabinet use. Together, these adjustment ranges and the European standard classification help deliver repeatable alignment results on both face-frame and frameless cabinets using doors within the specified 15mm to 25mm thickness.
The hinge is specified for door thickness from 15mm to 25mm, covering many standard cabinet door materials so a single hinge type can be used across multiple projects.
The hinge uses a 35mm cup diameter with an 11.6mm cup depth, guiding drill bit size and depth stops for accurate door preparation in the shop.
The hinge has a 110 degree opening angle, giving doors wide swing for access while fitting many standard cabinet layouts and corner conditions.
The hinge offers integrated overlay adjustment from plus 2mm to minus 2mm, allowing sideways fine-tuning of door position to set even gaps.
The hinge provides integrated depth adjustment from plus 2.5mm to minus 1.5mm, so the door can be shifted in or out to align faces across cabinets.
The hinge carries a quality classification under EN 15570, Level 2, indicating it has been assessed against a European hinge performance standard.
The Hettich Intermat self-close hinge with 110 degree opening, 35mm cup diameter, and 11.6mm cup depth brings a European standard hinge format to full overlay cabinet work. Door thickness coverage from 15mm to 25mm supports a range of cabinet door builds using common materials. Integrated overlay and depth adjustments, combined with height adjustment at the mounting plate, allow precise tuning of door reveals on both face-frame and frameless cabinets. Quality classification under EN 15570, Level 2, ties the hinge to a recognized performance standard for everyday cabinet use. For projects calling for concealed cabinet hinges in full overlay applications, this Hettich Intermat model offers defined drilling and adjustment parameters that support consistent, repeatable installations.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
