INTERMAT 110 HING SC FULL 45MM SCREW ON Hinge Use

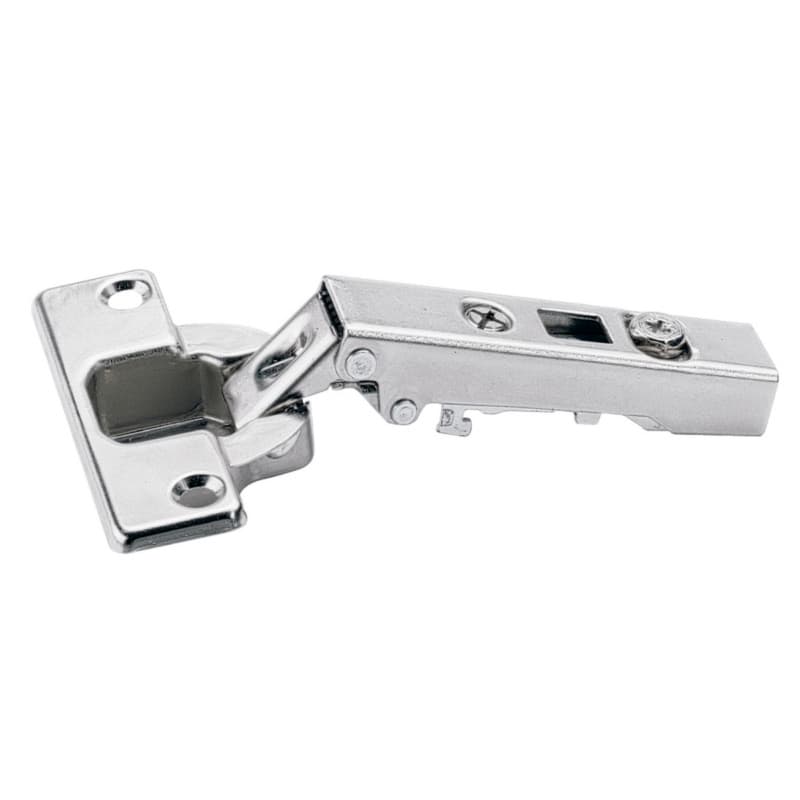

INTERMAT 110 HING SC FULL 45MM SCREW ON identifies a Hettich Intermat self-close full overlay hinge designed for face-frame and frameless cabinets, so one hinge model can serve different cabinet constructions in a shop or on a job. The hinge is part of the concealed cabinet hinges class, which keeps the hardware hidden when the door is closed and gives a clean appearance on finished cabinetry. The 110 degree opening angle allows doors to swing wide enough for comfortable access to cabinet interiors while still controlling the arc of the door in typical kitchen and casework layouts. The self-close function brings the door shut at the end of travel, helping doors reach the closed position consistently in everyday use. The hinge uses a screw-on design, so it fastens to the door and mounting plate with screws and supports standard installation methods for this style.

Key Hettich Intermat Hinge Details For Pros

• The hinge is described as a full overlay type for face-frame and frameless applications, so the door can cover the cabinet front appropriately in both construction styles and maintain consistent reveals across a run of cabinets.
• The cup diameter is 35mm, so the hinge fits the common European-style 35mm bore that many shops already drill with dedicated bits or boring equipment during door production.
• The cup depth is 11.6mm, so the mortise depth in the door is defined and can be matched to drilling setup to reduce blow-through and help maintain material around the hinge area.
• The hinge suits door thickness from 15mm to 25mm, so it covers a range from thinner doors up to thicker fronts and lets the same hinge model be used across different door programs.
• The hinge carries quality classification under EN 15570, Level 2, so it has been assessed to that standard and gives a referenced performance rating for cabinet and furniture projects.

Mounting And Adjustment Details For Installation

The hinge uses a screw-on connection, so it attaches to the door and mounting plate with screws in a familiar pattern for European concealed hinges. Integrated overlay adjustment of plus 2mm or minus 2mm is built into the hinge, allowing the door position over the cabinet front to be shifted side-to-side relative to the case so reveals can be tuned after hanging. Integrated depth adjustment of plus 2.5mm or minus 1.5mm is also provided, so the door can be moved closer to or farther from the cabinet front to align the door face with adjacent doors or finished ends. Height adjustment is handled at the mounting plate, so vertical positioning of the door can be set there to align top and bottom edges along a cabinet run.

Using This Concealed Cabinet Hinge In Projects

Where This Full Overlay Hinge Works Best

The hinge is identified as a full overlay face-frame and frameless hinge, so it supports cabinet designs where the door overlays the front by a significant margin in both framed and frameless casework. In a face-frame layout, this full overlay function allows the door edge to cover much of the frame, helping create a modern look while still using a traditional frame cabinet body. In a frameless layout, the same hinge identity supports full overlay fronts that align flush across the cabinet bank, so the fronts present as a continuous plane. The manufacturer classification as a concealed cabinet hinge means it is suited to cabinet doors where hidden hardware and smooth operation are priorities, such as kitchens, baths, and built-in furniture.

Adjustment Features That Support Clean Results

The hinge provides integrated overlay adjustment of plus 2mm or minus 2mm, which lets installers shift the door sideways on the hinge side after mounting so gaps to adjacent doors and panels can be evened out without re-drilling. Integrated depth adjustment of plus 2.5mm or minus 1.5mm is built into the hinge, giving the ability to bring the door closer to the case or move it slightly out so faces line up with neighboring fronts or applied panels. Height adjustment is specified at the mounting plate, so vertical door alignment is controlled through that interface and allows doors across a tall cabinet or pantry run to sit level at the top and bottom. Together, these adjustment ranges support fine-tuning in the field when cabinet boxes or walls are slightly out, helping installers reach consistent lines using the hinge settings rather than altering the cabinetry.

Common Questions About This Hettich Intermat Hinge

Selecting This Hinge For Your Cabinet Work

This Hettich Intermat self-close full overlay hinge, identified as INTERMAT 110 HING SC FULL 45MM SCREW ON and part number 1073711, brings concealed cabinet hinge design together with 110 degree opening and screw-on installation for cabinet doors in the 15mm to 25mm thickness range. The 35mm cup diameter and 11.6mm cup depth match common European boring setups, while integrated overlay and depth adjustment plus height adjustment at the mounting plate help refine door alignment on both face-frame and frameless cabinets. For projects needing concealed cabinet hinges with defined performance under EN 15570, Level 2, this hinge offers a clearly specified option for consistent cabinet construction.
