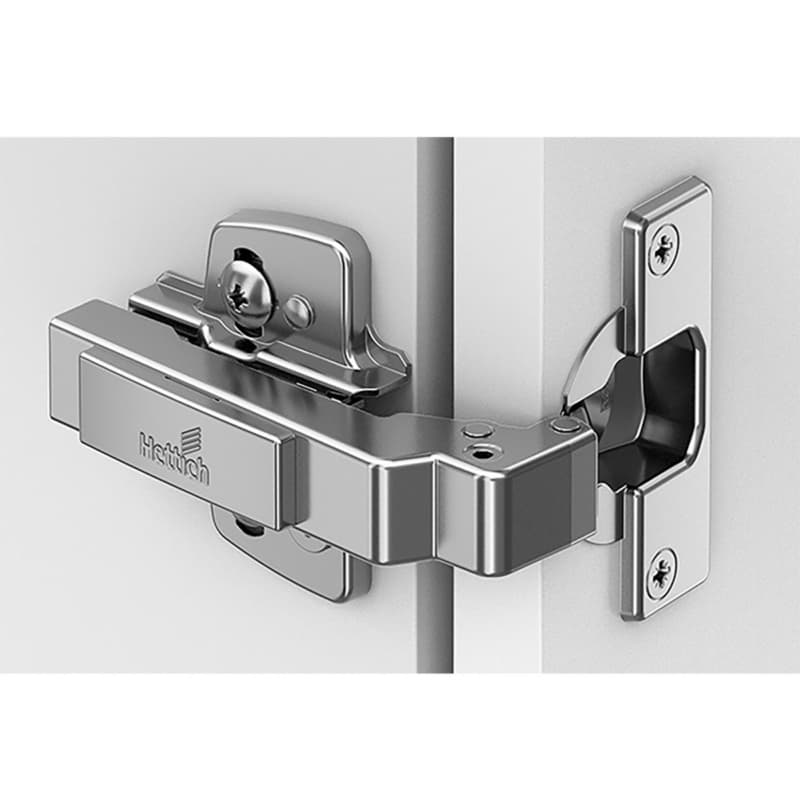

Intermat Blind Corner Hinge For Concealed Doors
Intermat blind corner hinge is a concealed cabinet hinge from Hettich America Corporation designed for face-frame and frameless blind corner applications where a clean exterior is required. As a European concealed long arm hinge in nickel finish, it keeps the hinge hardware out of sight while the door operates normally, which is important when building higher-end kitchen or casework runs. The hinge provides self-close action, so the door is pulled shut at the end of the swing, helping doors settle consistently against the cabinet front in everyday use. With an overlay configuration, the hinge positions the door over the cabinet side or face frame, supporting typical blind corner layouts without exposed knuckles. The construction is classified under EN 15570, Level 2, which signals a tested performance level for this type of hinge in regular cabinet service.
Key Blind Corner Hinge Details For Installers
- The hinge is specified as a 90 degree angle face-frame and frameless blind corner hinge, so it is suited to blind corner layouts where the cabinet front is set at right angles, giving flexibility for different kitchen or built-in cabinet runs.
- The opening angle is 95 degrees, which allows the door to swing past a straight 90 degree position, creating more hand clearance at the front edge and making hinge-side access to the interior more practical in tight blind corner areas.
- The hinge uses a 35mm cup diameter, which matches the standard European cup bore used by common boring machinery and jigs, simplifying drilling operations across multiple doors on the same job.
- The cup depth is 11.1mm, so the bore depth is clearly defined for setup, helping keep drilling consistent across doors and reducing the chance of breaking through thin door panels during fabrication.
- The door thickness range is 14 to 28mm, giving a clear operating window for door construction, so builders can work confidently with thinner doors as well as heavier, thicker fronts on the same hinge series.
Mounting And Adjustment For Intermat Overlay Hinge
This Intermat self-close overlay hinge uses installation with expanding sockets, so the dowel-style mounting spreads its grip in the 35mm cup bore, creating a tight hold in the door material during use. The hinge incorporates integrated adjustment of door offset plus 2mm or minus 2mm, allowing the door to be moved closer to or farther from the cabinet without changing the bore, which is useful for dialing in reveals along a run. There is also integrated reveal adjustment plus 2.5mm or minus 1.5mm, so the gap between door and cabinet can be tuned from the hinge side for better alignment. Height adjustment is provided at the mounting plate, giving vertical movement of the door relative to the case, which supports fine-tuning across multiple doors on a bank.
Using This Hettich 9043757 Hinge In Cabinet Runs
Where This European Concealed Blind Corner Hinge Fits
This Hettich Intermat self-close overlay 90 degree angle face-frame and frameless blind corner hinge is specified for blind corner cabinets where doors must swing from a 90 degree cabinet front. Because it is a concealed cabinet hinge classified under European blind corner hinges, it keeps hardware out of view while controlling the motion of blind corner doors in kitchens, baths, or casework. The nickel finish gives a clean, neutral look inside the cabinet, which matches common interior hardware finishes. The 95 degree opening angle works well where doors need to clear the face frame or cabinet edge just beyond a right angle, helping reduce binding at the handle side on deeper doors. With a door thickness range of 14 to 28mm, the hinge can support a variety of door constructions, from lighter fronts to thicker slab doors often used in modern designs.
How Intermat Hinge Adjustments Support Accurate Results
The integrated adjustment of door offset plus 2mm or minus 2mm lets installers shift the door in or out relative to the cabinet front, which is useful when aligning doors against neighboring fronts that may vary slightly. Integrated reveal adjustment plus 2.5mm or minus 1.5mm provides a clear adjustment window to refine the gap between door and cabinet edge, so doors can be leveled visually across a long run without re-boring. Height adjustment at the mounting plate means vertical changes are handled at the plate connection, allowing minor shifts to correct for cabinet sag or irregularities in the case. Installation with expanding sockets in the cup uses pressure in the 35mm bore to hold the hinge arm, which helps maintain stability in the door during repeated openings. The classification under EN 15570, Level 2, indicates the hinge has been assessed under a European standard for this hinge category, supporting consistent behavior for long-term door motion.
Common Questions About This Intermat Blind Corner Hinge
What door thickness range works with this hinge?
The Hettich Intermat 9043757 hinge is specified for door thickness from 14 to 28mm, so it covers thinner doors and thicker slab-style fronts within that defined range.
What cup size and depth does the hinge require?
The hinge uses a 35mm cup diameter and an 11.1mm cup depth, which matches standard European boring patterns and helps streamline shop drilling setups.
How far does the Intermat 95 degree hinge open?
The Intermat hinge opens to 95 degrees, allowing the door to move slightly past a true right angle for better access and reduced binding near the front edge.
How is door position adjusted on this hinge?
The hinge provides integrated door offset adjustment plus 2mm or minus 2mm and reveal adjustment plus 2.5mm or minus 1.5mm, with height adjustment at the mounting plate.
What mounting method does the Intermat hinge use?
The Intermat 9043757 hinge uses installation with expanding sockets in the cup, so the dowel-style fittings expand in the bore to hold the hinge in the door.
How is this hinge classified for performance?
This hinge carries a quality classification under EN 15570, Level 2, indicating it has been tested within that European standard for concealed cabinet hinges.
Selecting This Intermat Hinge For Blind Corners
The Intermat blind corner hinge from Hettich America Corporation brings a 95 degree opening angle, 35mm cup with 11.1mm depth, and self-close overlay function together for blind corner cabinets. With expanding socket installation and integrated adjustments for offset, reveal, and height at the mounting plate, it supports precise door alignment along face-frame or frameless runs. For blind corner situations needing a European concealed long arm hinge with a nickel finish and EN 15570, Level 2 classification, this 9043757 model offers a defined set of dimensions and adjustments to match detailed cabinet layouts.
