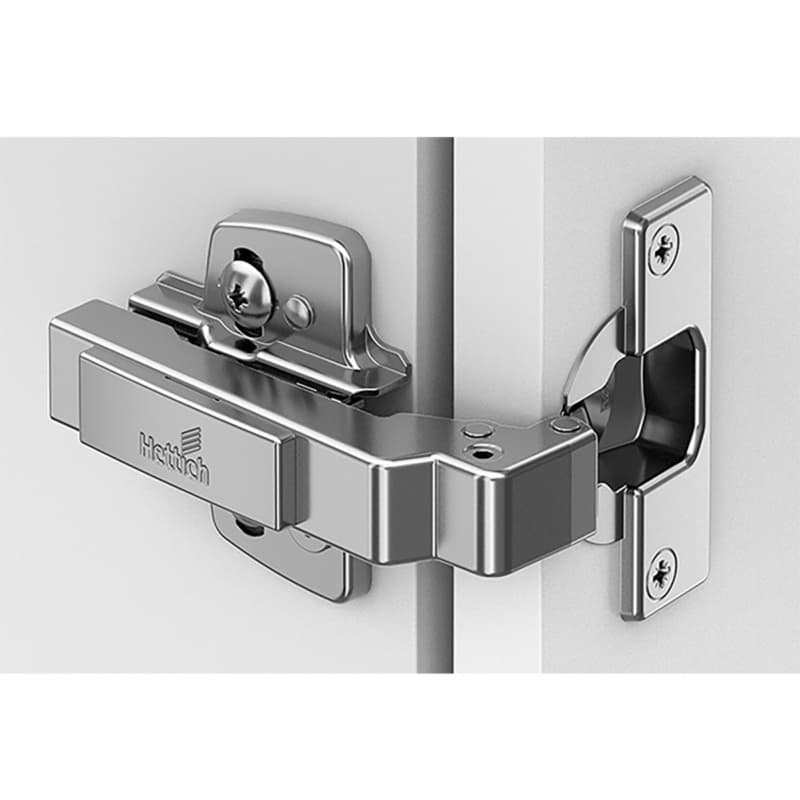

Hettich Intermat blind corner hinge gives you a concealed cabinet hinge solution for overlay doors in face-frame or frameless blind corner applications, so you can keep the hardware hidden while controlling door motion at a 95 degree opening angle. This hinge belongs to the Intermat line of concealed cabinet hinges, which means it is designed as a long arm European hinge suited to cabinets where a traditional surface hinge would be in the way. The hinge provides self-close action, so the door moves toward the cabinet on its own near the closed position, helping the door reach the frame consistently in everyday use. A nickel finish on the hinge gives the hardware a neutral, project-friendly look that blends with other fittings when the cabinet is open.
This Intermat hinge is specified as an overlay design, so the cabinet door overlays the front of the cabinet side or frame while the hinge hardware stays concealed inside. The 35mm cup diameter and 11.1mm cup depth provide a familiar drilling pattern, allowing use of standard 35mm hinge boring setups on door backs. Door thickness from 14 to 28mm is supported, so the same hinge model can be used across thinner and thicker cabinet doors within that range. Integrated door offset and reveal adjustments in the hinge body keep the fine-tuning at the hinge, giving you control of overlay and gap without altering the basic mount. Height adjustment at the mounting plate focuses vertical alignment there, so you can dial in door height in small steps along a cabinet run.
This Hettich Intermat blind corner hinge is designed for face-frame and frameless blind corner cabinets, so it suits layouts where the door must clear a corner while hardware remains hidden. The overlay configuration means the door front sits over the cabinet front, matching typical kitchen and bath cabinet styling where the door covers the edge of the side panel or face frame. A 95 degree opening angle keeps the door within a controlled swing, which can help when the cabinet is near walls or other cabinets in a run. Because the hinge uses a 35mm cup with 11.1mm cup depth, it aligns well with standard European boring patterns found in many cabinet shops, which simplifies integrating it into existing manufacturing or shop jigs. Door thickness tolerance from 14 to 28mm lets this same hinge model serve various door constructions, such as thinner doors for utility spaces and thicker fronts for more substantial cabinetry.
The integrated door offset adjustment of plus 2mm or minus 2mm lets you shift how far the door overlays the cabinet front, which helps correct minor layout variations and maintain consistent overlays from door to door. Integrated reveal adjustment of plus 2.5mm or minus 1.5mm gives additional control over the gap between the door edge and cabinet side, making it easier to balance reveals in corners and between adjoining doors without altering drilling positions. Height adjustment at the mounting plate provides another axis of correction, so you can move the door up or down on the cabinet after mounting to align top and bottom edges across a bank of cabinets. Self-close action in the hinge helps pull the door toward the cabinet near closing, which supports even contact with the front and can improve perceived alignment. Installation with expanding sockets in the cup gives a firm hold in the 35mm bore, aiding consistent positioning when repetitive production work relies on accurate cup fixing. Quality classification under EN 15570, Level 2 signals that the hinge meets a recognized test standard, which can support specification decisions when selecting hardware for cabinet projects that call for documented hinge performance.
The Hettich 9043751 is an Intermat concealed cabinet hinge for overlay doors in face-frame and frameless blind corner applications, so the hardware stays hidden while supporting the door.
The hinge supports door thickness from 14 to 28mm, allowing use on a variety of cabinet doors within that range without changing to a different hinge size.
The hinge uses a 35mm cup diameter with 11.1mm cup depth, so it matches standard European hinge boring operations using common 35mm bits and depth settings.
Integrated door offset, reveal, and height adjustments let you fine-tune overlay, gaps, and vertical alignment at the hinge and mounting plate, supporting precise door alignment.
The hinge is specified with a 95 degree opening angle, which controls door swing and suits many blind corner layouts where a wider opening is not required.
EN 15570 Level 2 classification indicates the hinge has been tested to a European standard for performance, which supports its use where documented hinge testing is desired.
The Hettich Intermat blind corner hinge with overlay design, 95 degree opening angle, and self-close function offers a concealed option tailored to blind corner cabinets. Its 35mm cup, 11.1mm depth, and 14 to 28mm door thickness range align with common shop practices. Integrated door offset, reveal, and height adjustments give you the fine control needed to align doors cleanly across a cabinet run. EN 15570 Level 2 quality classification and installation with expanding sockets round out a hinge suited to professional cabinet work and serious projects.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
