Intermat 50/65 Hinge For Corner Folding Doors

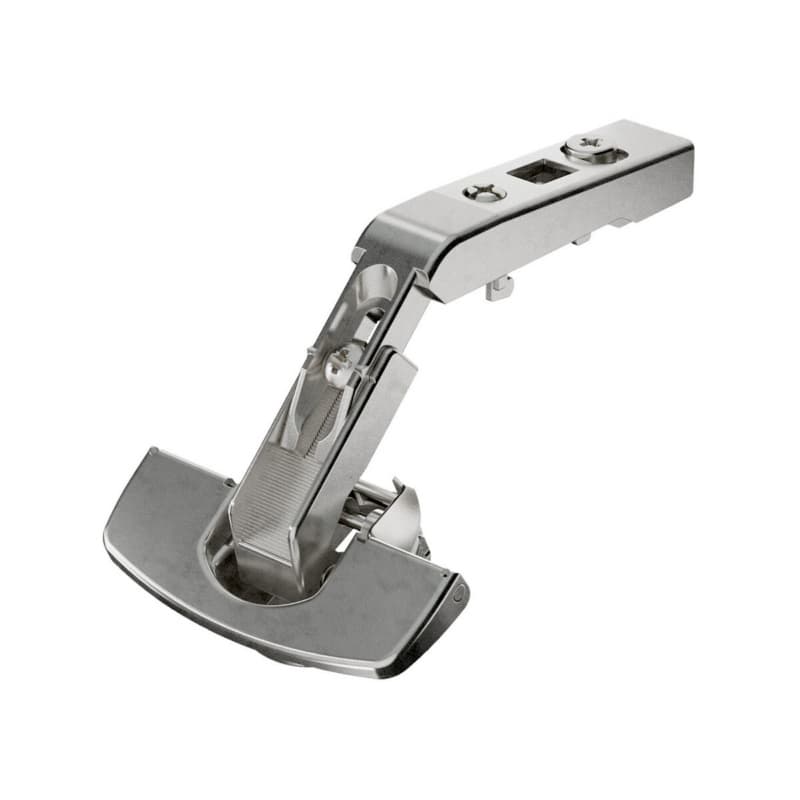

Intermat 50/65 hinge provides a European pie cut corner hinge solution for corner cabinet folding doors, giving installers a concealed option that keeps the exterior of the cabinet clear for a clean look. This Hettich America Corporation concealed cabinet hinge is designed as a self-close overlay face-frame and frameless pie cut corner hinge in a nickel finish, so it supports both face-frame and frameless layouts using the same hinge family. The hinge is specified for door thickness from 14 to 21mm, which defines the door construction range it is built to carry in typical cabinet work. A cup depth of 12.8mm sets the drilling depth into the door, helping maintain consistent machining across multiple fronts. As part of the Intermat series, this hinge is handy and versatile for many cabinet applications where a concealed long arm hinge and pie cut corner motion are required.
Key Intermat 50/65 Details For Cabinet Work
- The hinge is described as easy to fit, which supports efficient installation when repeating the same setup across multiple doors on a job.
- Adjustment without effort means the hinge offers user-friendly fine-tuning, helping align folding doors after mounting without heavy rework.
- Its handy and versatile character allows the same hinge style to serve a range of cabinet applications that call for a pie cut corner motion.
- The hinge is for door thickness 14 to 21mm, so door material within this range sits correctly in the cup and overlay geometry.
- A cup depth of 12.8mm defines the bore depth, aiding accurate machining and consistent drilling patterns in the shop or on site.
- The European concealed long arm design keeps hardware hidden inside the cabinet, supporting a finished exterior appearance.
Mounting And Adjustment Setup For This Hinge
This Intermat hinge provides diagonal adjustment of plus 9.5mm and minus 9.5mm, giving room to shift the door position relative to the cabinet opening so gaps at the folding joint and face can be dialed in. Height adjustment is specified at the mounting plate, so vertical alignment work happens at the plate interface instead of at the door edge, which helps when leveling multiple doors on a run. Installation with expanding sockets defines the fastening method at the cup, giving a repeatable way to secure the hinge body into the bored door while maintaining the 12.8mm cup depth and overall position. With a stated opening angle of 50 degrees in the product name, this hinge sets the swing profile needed for pie cut corner cabinet folding doors.
Using This Hinge In Corner Cabinet Layouts
Where This Pie Cut Corner Hinge Fits Best
This Hettich Intermat self-close overlay face-frame and frameless pie cut corner hinge is described as a hinge for corner cabinet folding doors, so it is aimed at those inside-corner situations where two doors are linked as a folding pair. The European pie cut corner hinge configuration keeps the mechanism concealed inside the cabinet, which suits installations where a clean exterior is important across adjacent runs. Door thickness from 14 to 21mm covers many common cabinet door constructions, allowing plywood or MDF cores within that range to work with the 12.8mm cup depth. The 50 degree reference in the product name defines the general opening geometry, which plays into how the folding doors clear adjacent cabinets and internal storage zones in a corner.
How Intermat Adjustments Support Clean Results
The Intermat hinge series is described as easy to fit and adjustable without effort, so fitting and alignment can be handled as a normal workflow step rather than a special task. Diagonal adjustment of plus 9.5mm and minus 9.5mm lets the installer shift the door in a combined direction, which is helpful for tightening or relaxing the joint line where the folding doors meet. Height adjustment at the mounting plate keeps vertical tweaks localized at the plate, supporting quick corrections after doors are hung and checked against surrounding fronts. Installation with expanding sockets at the cup holds the 12.8mm cup depth steady, so repeated drilling and insertion maintain the same reference position from door to door. Quality classification under EN 15570, Level 2, indicates the hinge has been assessed to that European hinge standard level, giving a defined performance framework for cabinet projects that call for a documented hinge class.
Common Questions About The Intermat 50/65 Hinge
What type of cabinet doors use this Intermat 50/65 hinge?
The Intermat 50/65 hinge is specified as a hinge for corner cabinet folding doors, so it is intended for pie cut corner door pairs that open together from an inside cabinet corner.
What door thickness range does this hinge support?
The hinge is specified for door thickness from 14 to 21mm, so doors built within that range match the cup and overlay geometry the hinge is designed around.
How deep should the cup hole be bored for this hinge?
The Hettich Intermat 50/65 hinge has a cup depth of 12.8mm, which defines the boring depth in the door needed to seat the hinge cup properly.
How is vertical alignment adjusted on this hinge setup?
This hinge provides height adjustment at the mounting plate, so vertical fine-tuning is carried out at the plate connection to align door tops and bottoms.
What diagonal adjustment range does the Intermat 50/65 offer?
The hinge offers diagonal adjustment of plus 9.5mm and minus 9.5mm, which allows shifting the door position for improved gaps and corner alignment.
How is the hinge cup fixed into the cabinet door?
The Intermat hinge installs with expanding sockets, meaning the cup is secured in the bored hole by that expanding socket mechanism during installation.
Selecting This Hinge For Corner Folding Doors
The Intermat 50/65 hinge as described by Wurth Baer Supply combines a European pie cut corner hinge layout with adjustment options that support clean folding-door alignment. Door thickness coverage from 14 to 21mm, a 12.8mm cup depth, and diagonal plus or minus 9.5mm adjustment give defined working parameters for machining and setting up corner cabinet folding doors. Installation with expanding sockets and height adjustment at the mounting plate align with standard cabinet shop workflows. For projects calling for a concealed cabinet hinge in a corner folding configuration with EN 15570 Level 2 classification, this Hettich Intermat 9090119 hinge provides a clearly specified option to match those needs.
